Wireless controller for white & single-colour LED tape2018-10-15T09:59:16+00:00

Wireless dimmer/controller for LED Strip Lights

wireless LED remote dimmer/controller - front

wireless LED remote dimmer/controller - back

Wiring Diagram

Wireless remote dimmer/controller for white & single-colour LEDs - circuit diagram

Using Your Wireless Dimmer/Controller

Using your Wireless Remote Dimmer/Controller

Wireless controller & dimmer

Suitable for white & single-colour LEDs
20m range, No ‘Line of Sight’ needed
Commercial Grade

Availability: In Stock for next day delivery

This handy wireless dimmer/controller for InStyle LEDs is a complete receiver and controller kit in a box. When it’s installed with a suitable transformer, the two units will give you full control over your white or single-colour LED tapes.

The ‘touch’ wireless remote offers full dimming and on/off control via its easy-to-use brightness wheel. There are also four preset shortcut keys (100%, 75%, 50% and 25% brightness), and you can also store/recall two of your own favourite lighting levels. The wireless remote is an RF (radio frequency) controller, which can control your LED tape up to 20m away via its receiver. There’s no need to be ‘line of sight’, so the receiver can be tucked away in a cupboard or behind a wall etc.

The controller can support a total of 10A. Allowing for headroom, we recommend that the receiver can control the following lengths of LED tape:

  • 12v white LED tape 4.8W (feature lights / highlighting) = 24m
  • 24v white LED tape 12W (standard domestic lighting) = 16m
  • 24v single-colour LED tape 14.4W = 12m

This Instyle wireless controller for white and single-colour LED tape is commercial grade, manufactured using premium components. It’s ideal for homes, bars, restaurants and small clubs.

  • Commercial Grade Remote Controller
  • Ideal for internal use
  • Touch screen with brightness wheel – full 100% dimming
  • Controls both standard or high power 12v/24v LED tape
  • Can control up to 20m of 24v standard 12W LED tape
  • Radio remote doesn’t need to be ‘line of site’ with receiver
  • Remote works up to 20m away from receiver
  • Easy to install
  • Store/recall favourite light levels
  • Product Code: CT-RW-1
ProductRemote Controller
Radio Frequency:434MHz/868MHz
Voltage Input:DC12~DC24
Warranty:2 Years
Dimensions (mm):120 x 48 x 18
CE + RoHS Certificated:Yes

Product Code: CT-RW-1

ProductReceiver
Radio Frequency:434MHz/868MHz
Voltage Input:DC12~DC24
Power Output:120W (12V) /
240W (24V)
Warranty:2 Years
Dimensions (mm):145 x 48 x 17
CE + RoHS Certificated:Yes

Product Code: RC-RF-W

Product to be controlledMax Length of LED Tape
12v, 5 watt White LED Tape 24 metres
12v, 10 watt White LED Tape12 metres
24v, 12 watt White LED Tape20 metres
24v, 15 watt Single-Colour LED Tape16 metres
24v, 20 watt White LED Tape12 metres
24v 24 watt White LED Tape10 metres

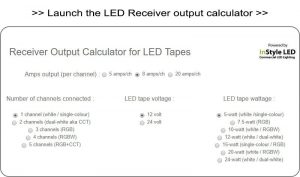

Launch InStyle's LED Receiver Output calculator

…Or why not try our LED receiver output calculator to find how much LED tape your receiver can drive?

5 Watt White LED Tape Datasheet PDF

5 Watt White LED Tape Datasheet PDF
