12mm x 25mm | Side Bend | [Bulb] Neon Flex
Commercial Grade LED Neon Flex
Full Specification
| Product Code | SNF-1225-SB-COLOUR |
| Watts / M | 14w |
| Voltage | 24v |
| LED / M | 168 |

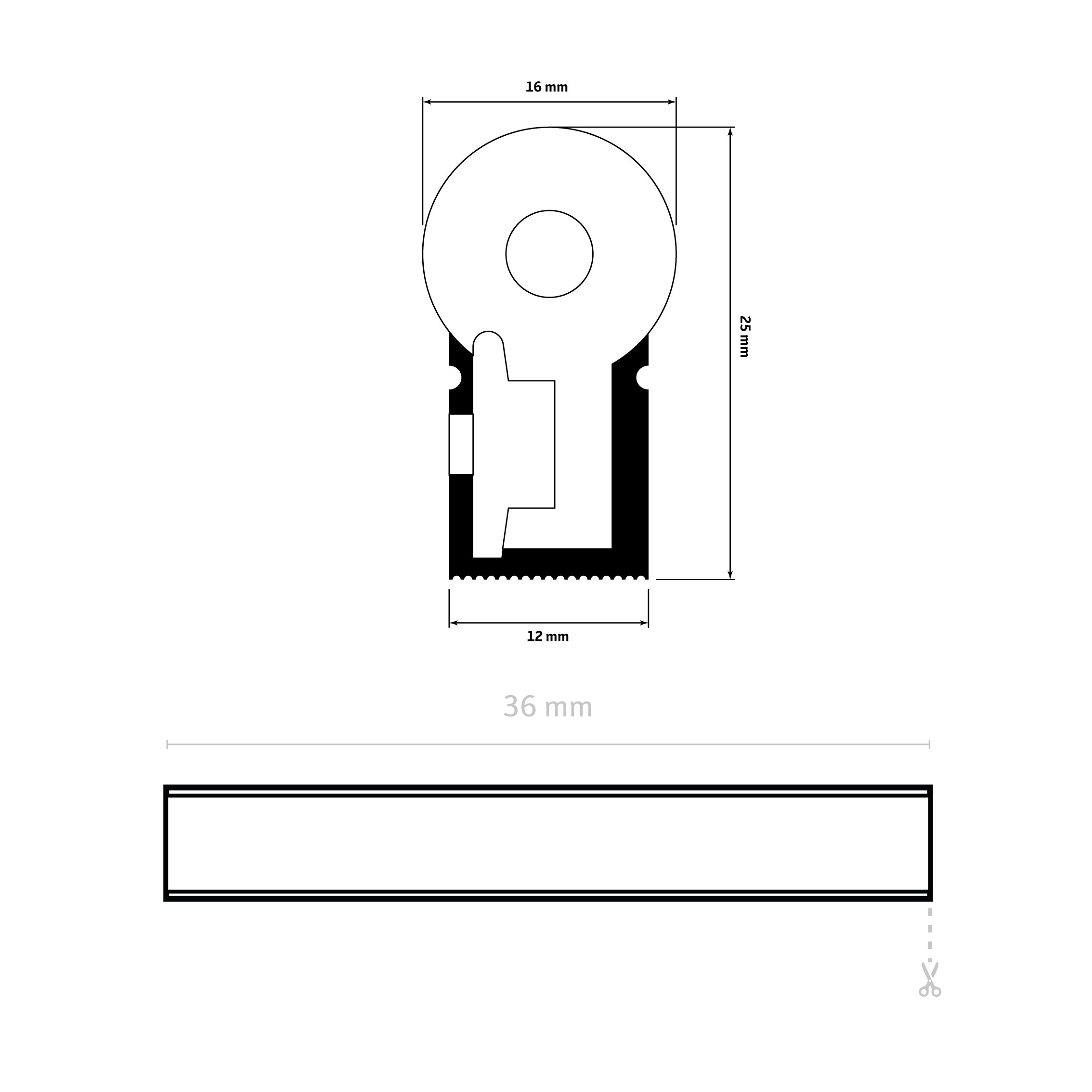

| Cut Points | 36mm |

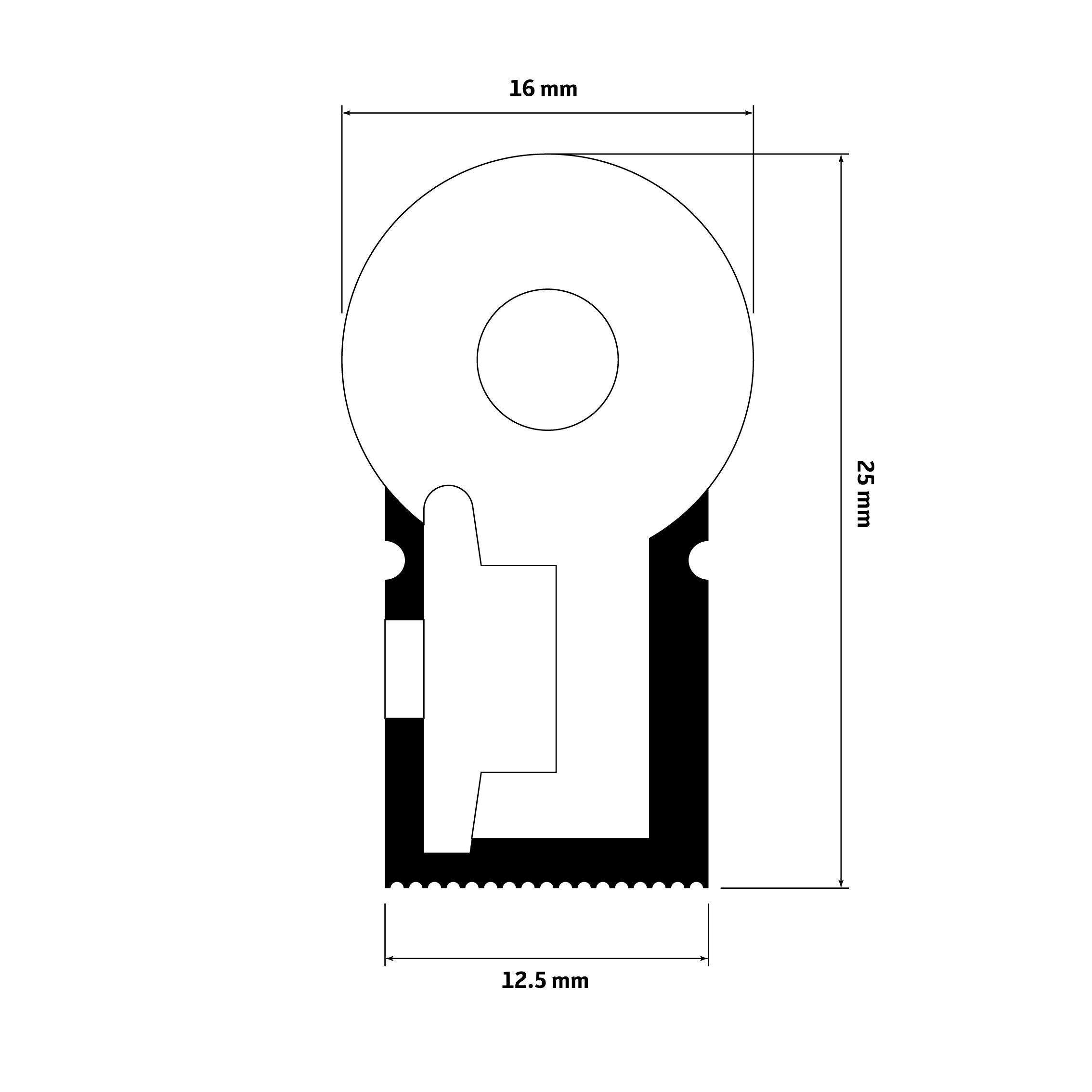

| Neon Width | 12mm |
| Neon Height | 25mm |
| Lumens / M | 1120 |
| Lumens / Watt | 80 |
| Colour Options | 2700k, 3000k, 4000k, 6000k |
| CRI | 90+ |
| IP Rating | 67 |
| Beam Angle | 120° |
| Max Run Length | 10m |
| Operating Temp | -40°C to 60°C |
| Chip Set | 2835 |
| Warranty | 3 Years |

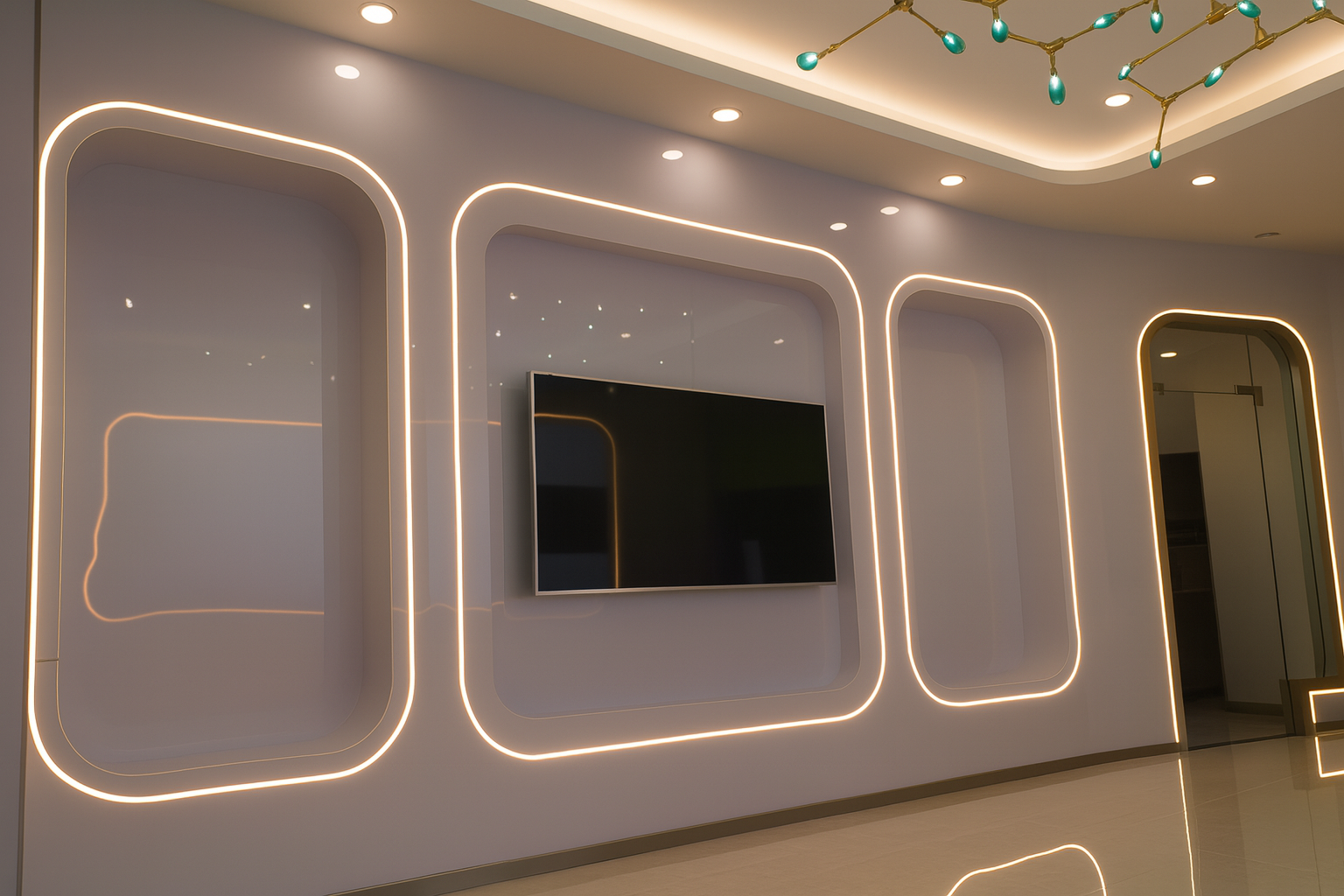

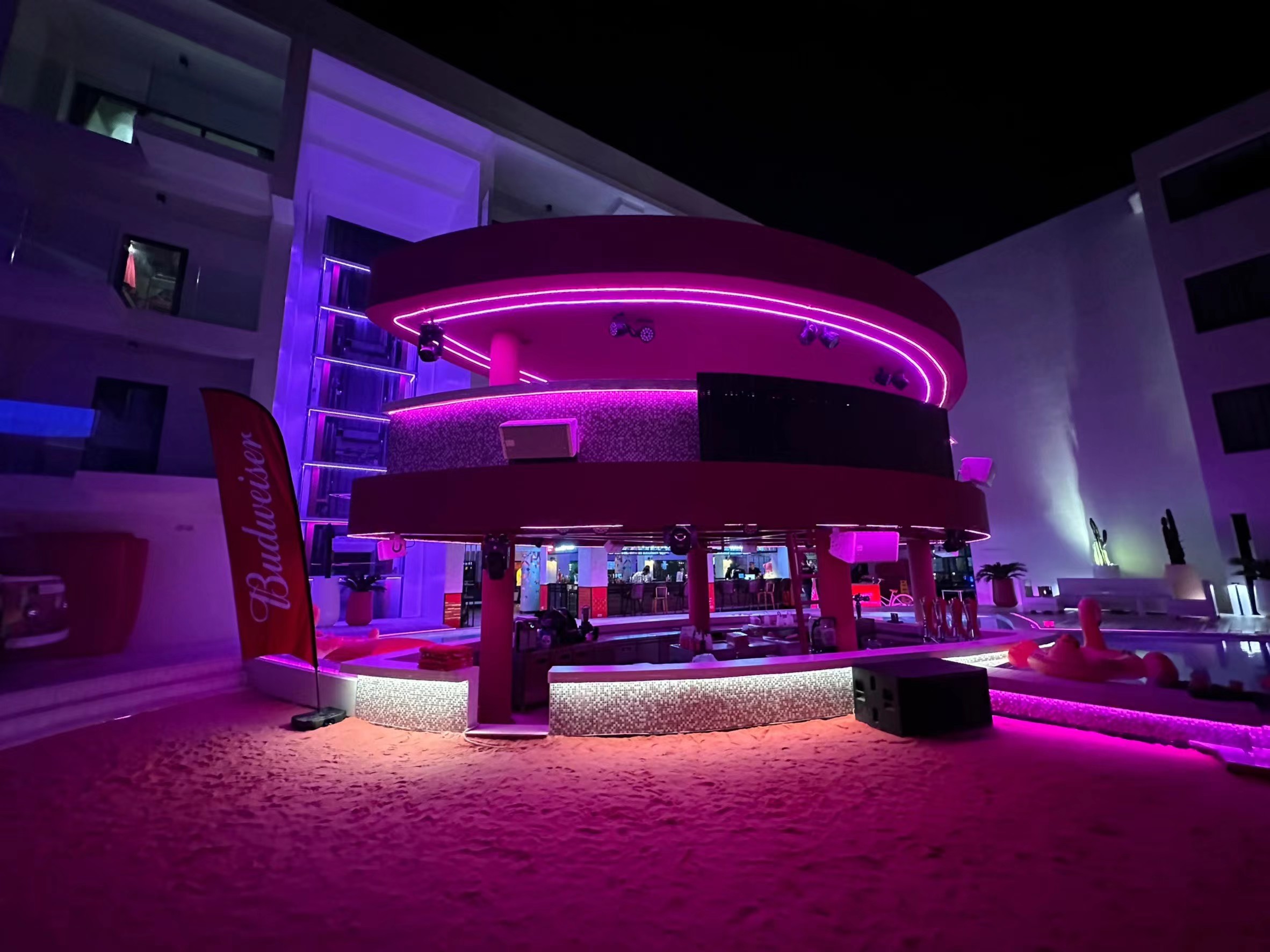

This 12mm x 25mm | Side Bend | [Bulb] Neon Flex is a bold, commercial grade LED neon solution designed to replicate the visual presence of traditional bulb neon with the efficiency and reliability of modern LED technology. Its larger 12mm width and 25mm height make it ideal for statement signage, feature outlines, and architectural installations where strong visual impact is essential.
Producing 1120 lumens per metre at 14 watts per metre, this neon flex delivers bright, consistent output with an efficiency of 80 lumens per watt. A high density 2835 chipset with 168 LEDs per metre ensures smooth, continuous illumination with no visible hotspots. The 120° beam angle provides even light distribution, while a CRI of 90+ ensures accurate colour rendering in both commercial and hospitality environments.

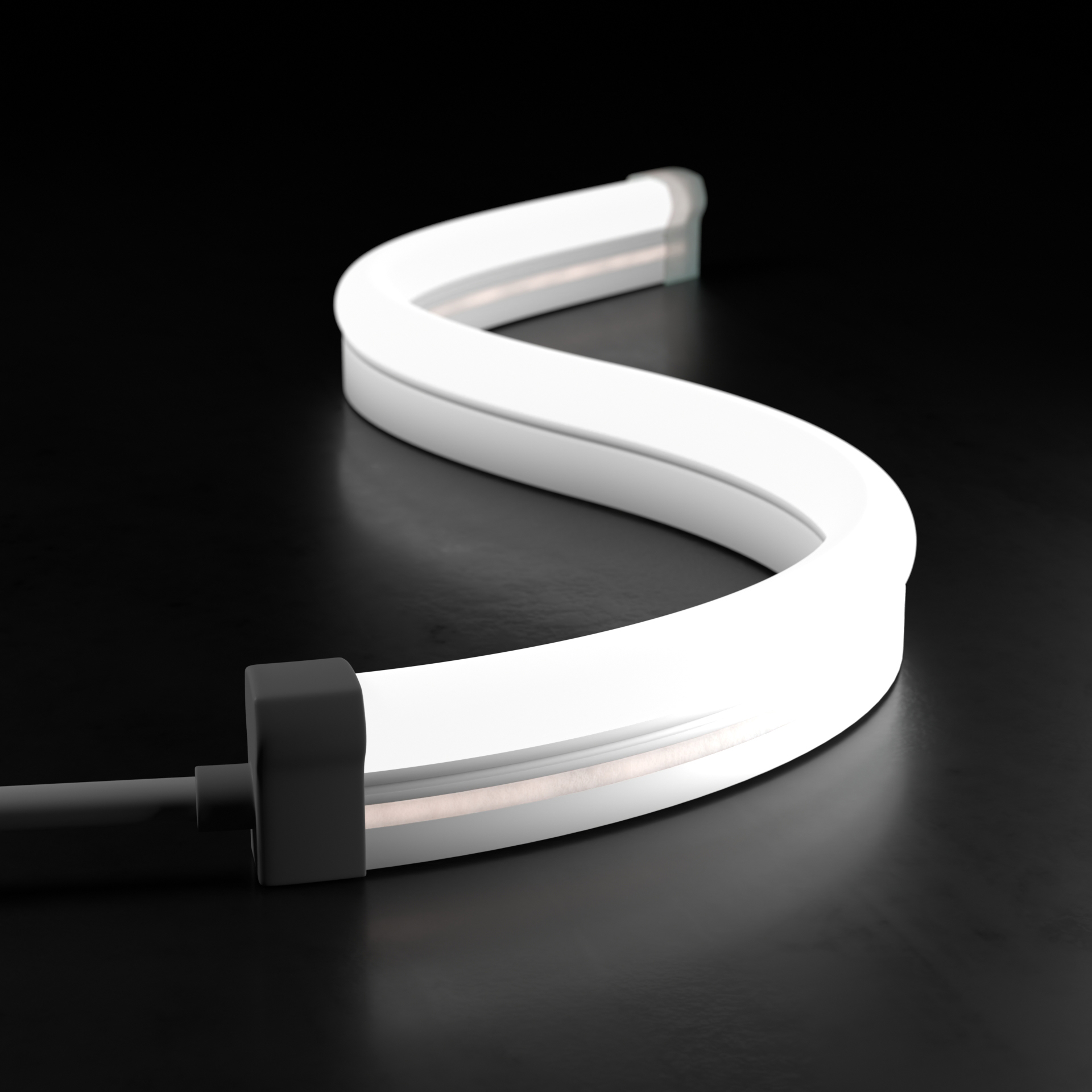

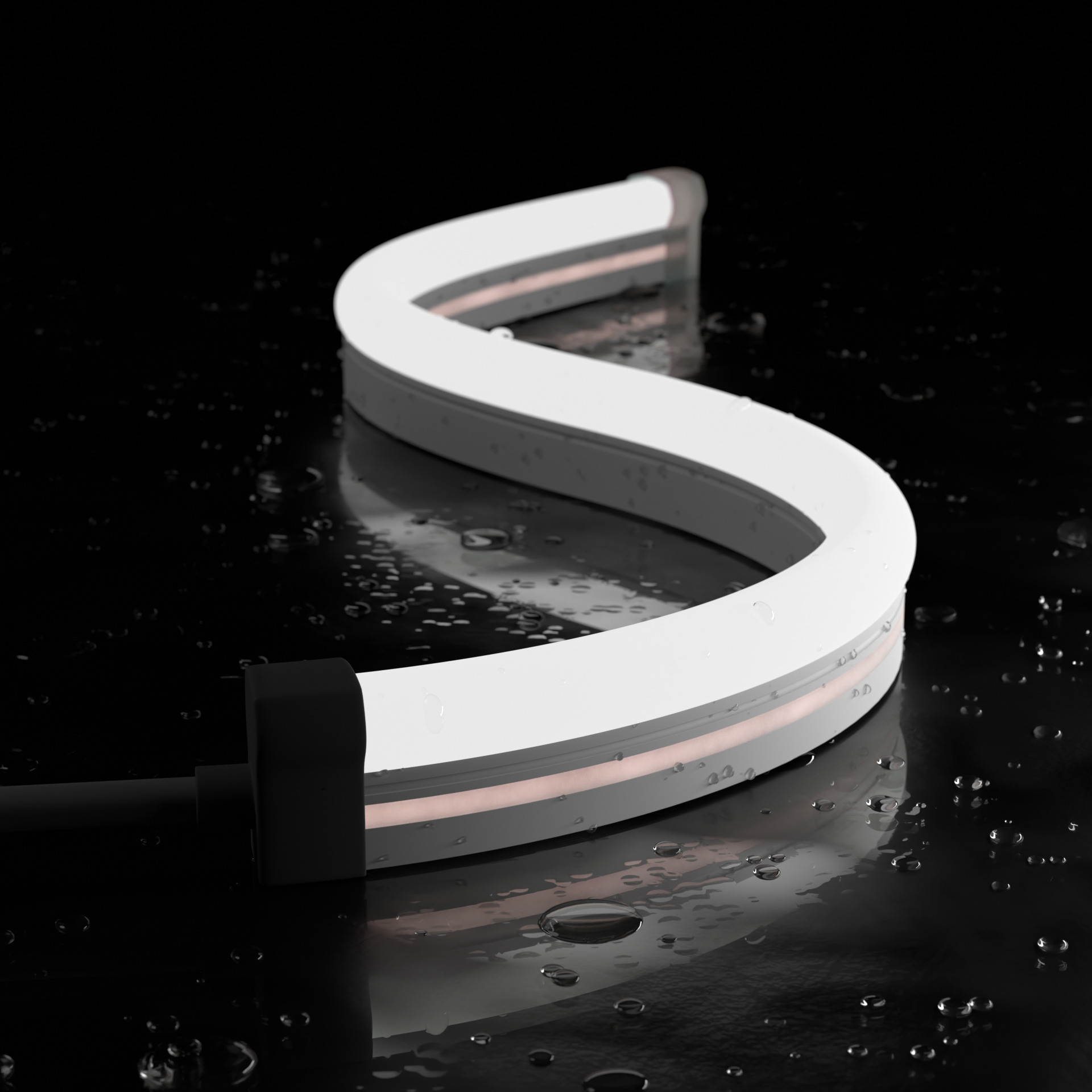

The side bend design allows for flowing horizontal curves and clean shaping, with cut points every 36mm for precise installation and minimal waste. Operating on a stable 24V supply, it is available in 2700K, 3000K, 4000K, and 6000K to suit warm decorative schemes or crisp modern designs.
Built for demanding conditions, it carries an IP67 rating, operates from -40°C to 60°C, supports runs up to 10 metres, and is backed by a 3 year warranty for complete peace of mind.
