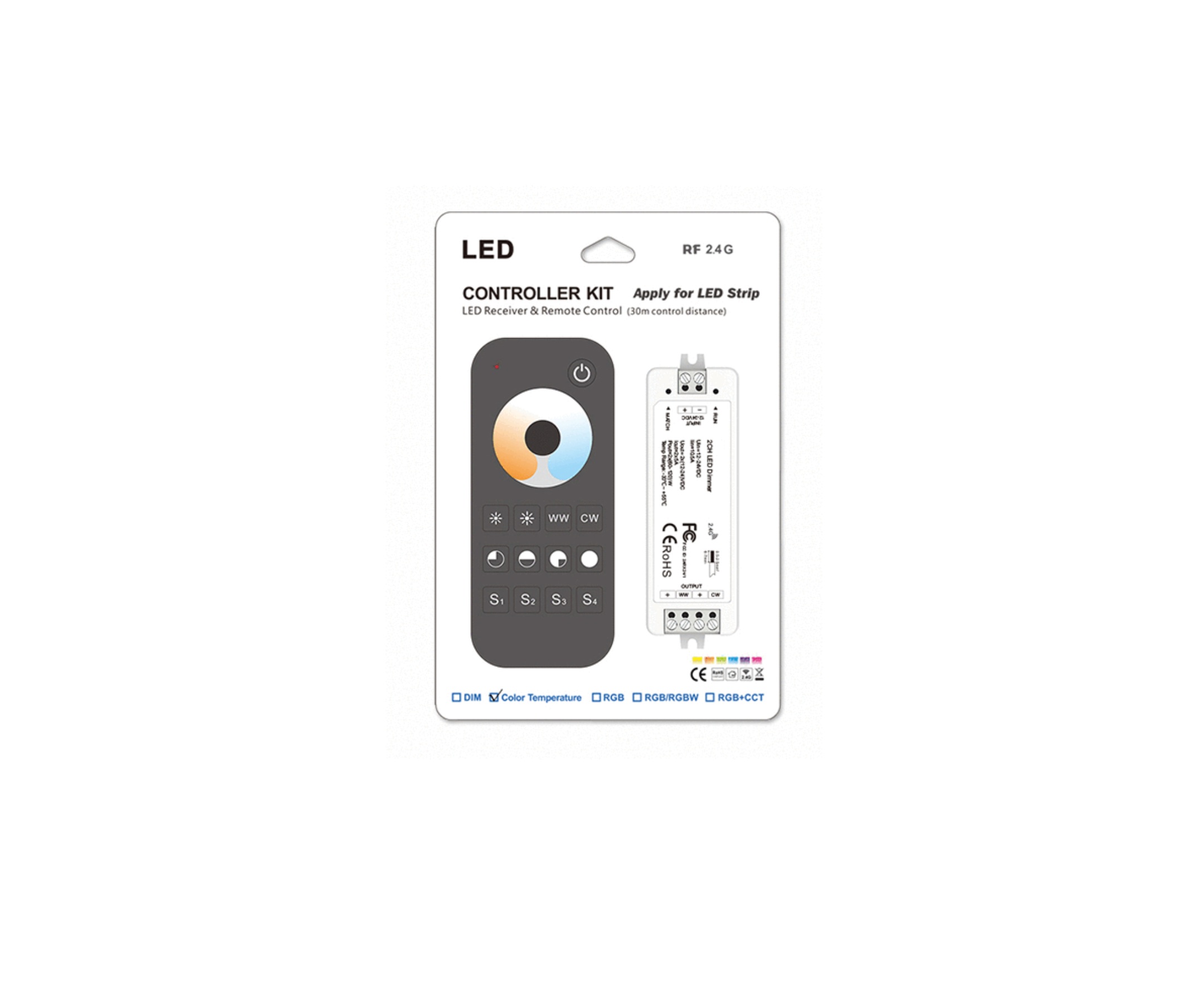

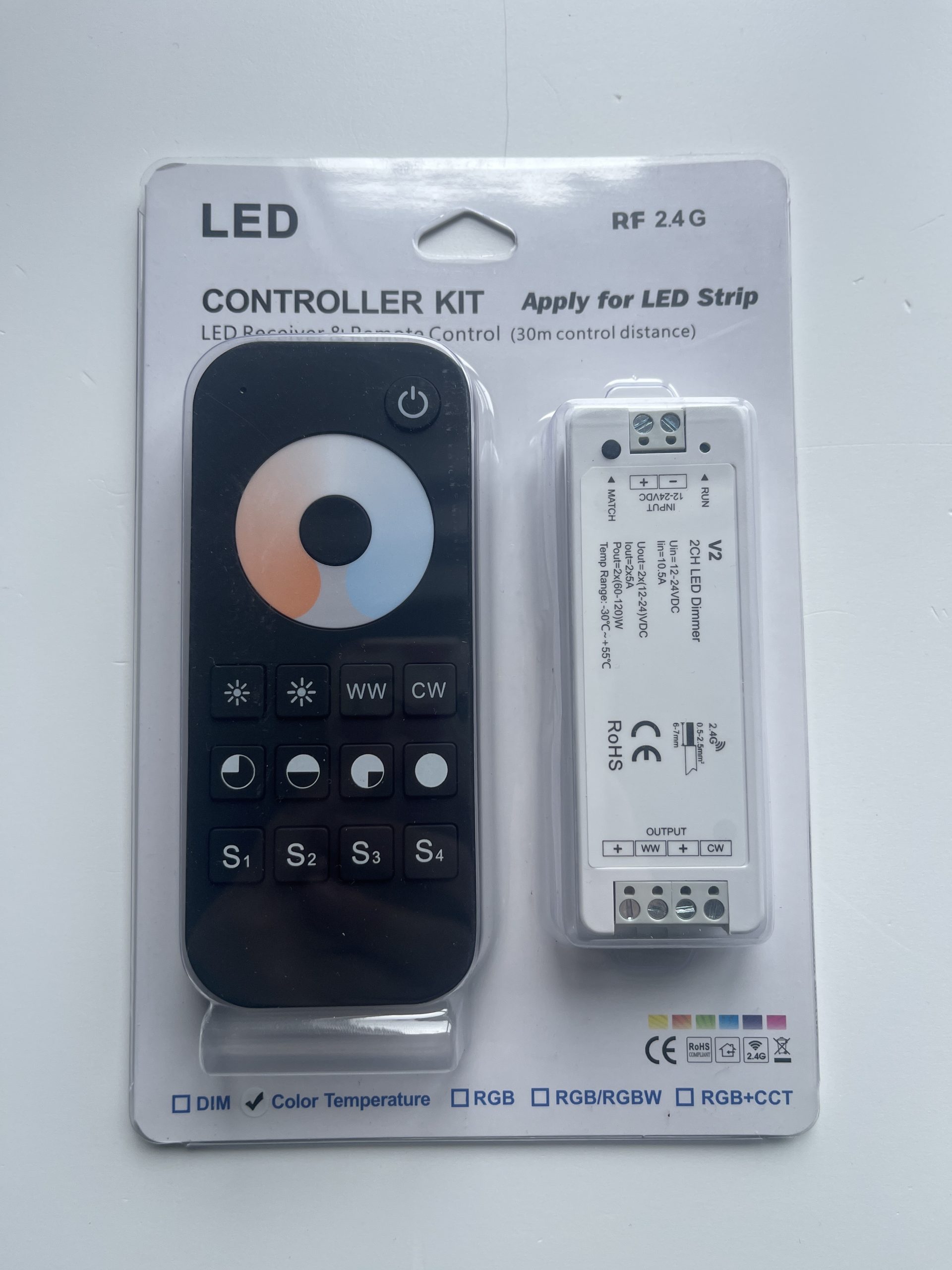

1 Zone – Wireless RF – CCT – LED Remote Controller Kit
Commercial Grade LED Controller
Full Specification
| Product Code | CT-RCCT-1 |
| Protocol | RF |
| Compatible LED | Tunable White (CCT) |
| Product Type | Remote Control (Kit) |
| Zones (channels) | 1 |
| Input Voltage | 3VDC(AAAx2) |
| Input Current | <5mA |
| Output Voltage | 12/24V DC |
| Output Current | 2 x 5A/CH (10A) |
| Output Wattage | 192W -12v / 384W – 24v |
| Signal | RF / 2.4GHz |
| Control Distance | 30m (RF) |
| Dimming Range | 0 -100% |

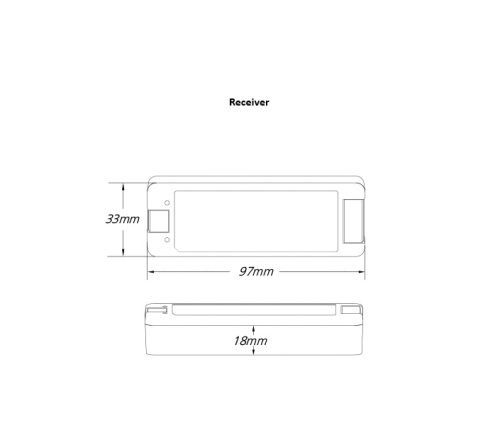

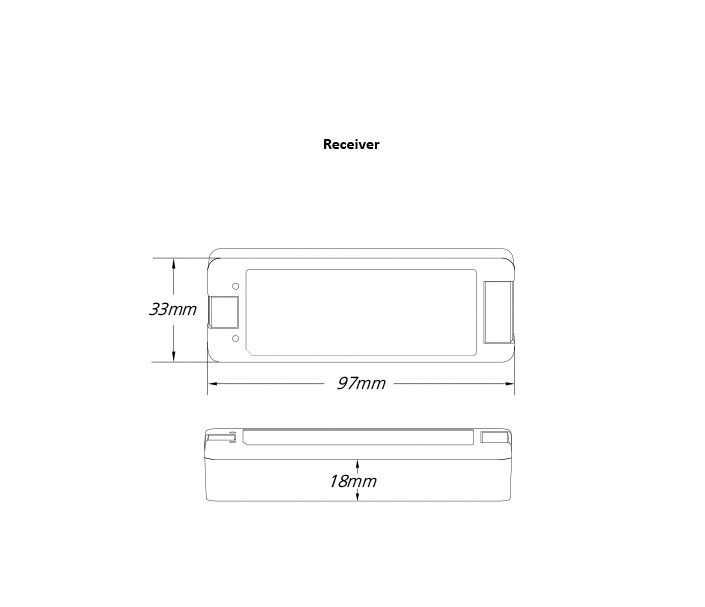

| Dimensions | L97 x W33 x H18mm (Receiver) L140 x W60 x H26mm (Remote) |
| Weight | 0.154kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, EMC, RED |
| Compatible Products |
1-Zone Wireless CCT LED Controller Kit – RF Remote (Tunable White)

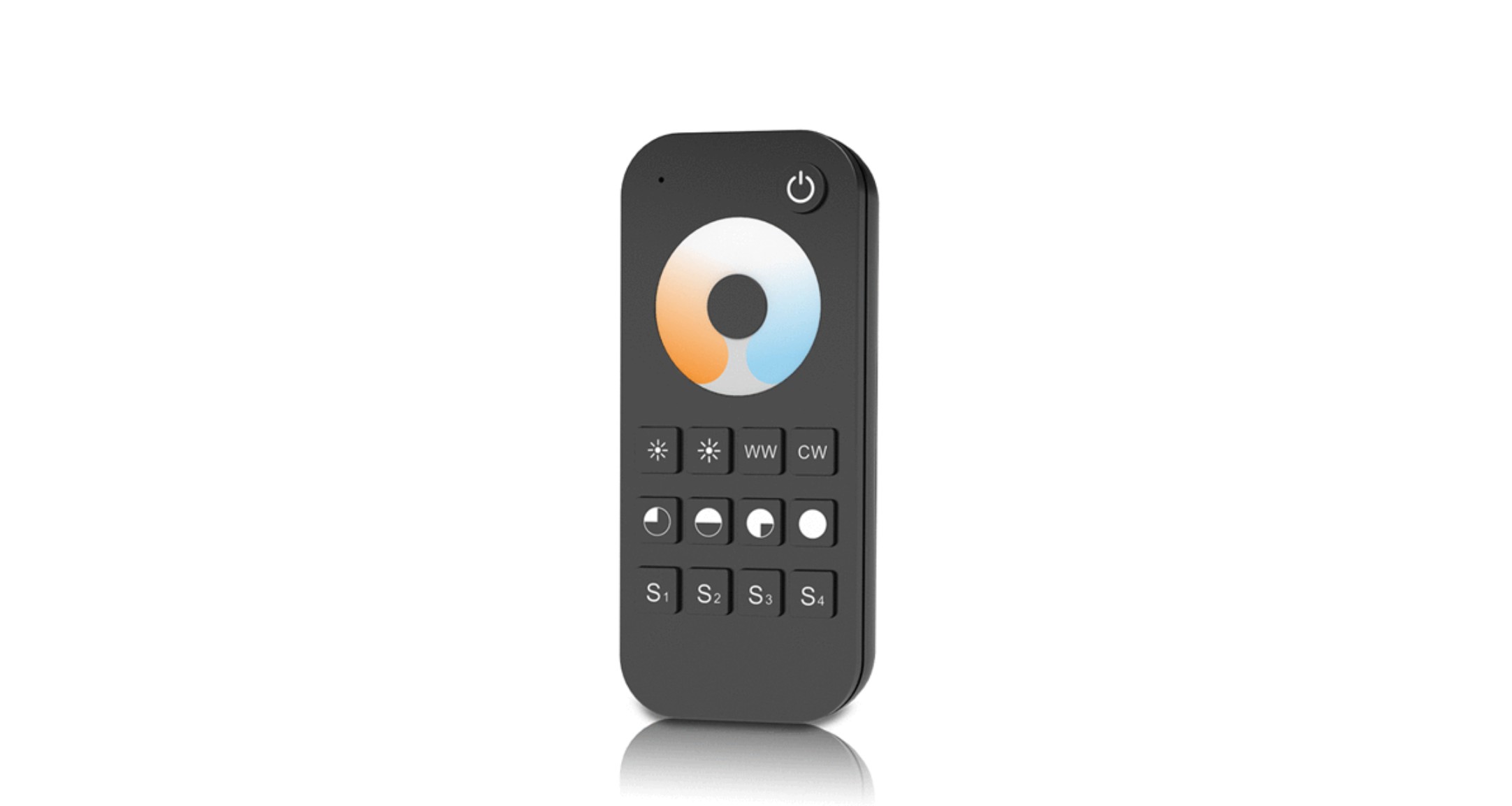

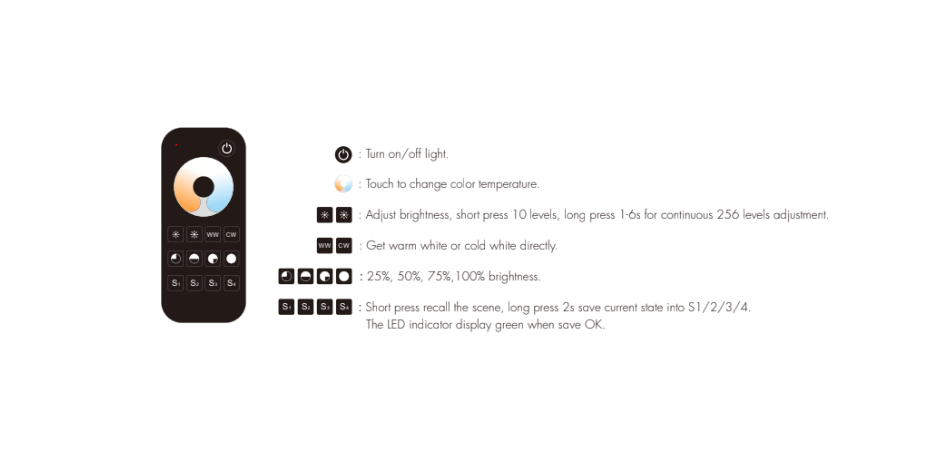

Dial in the perfect white tone with this 1-zone wireless CCT LED controller kit. Designed for tunable white LED strips, this kit gives you full control over colour temperature and brightness – all from a sleek, handheld RF remote.

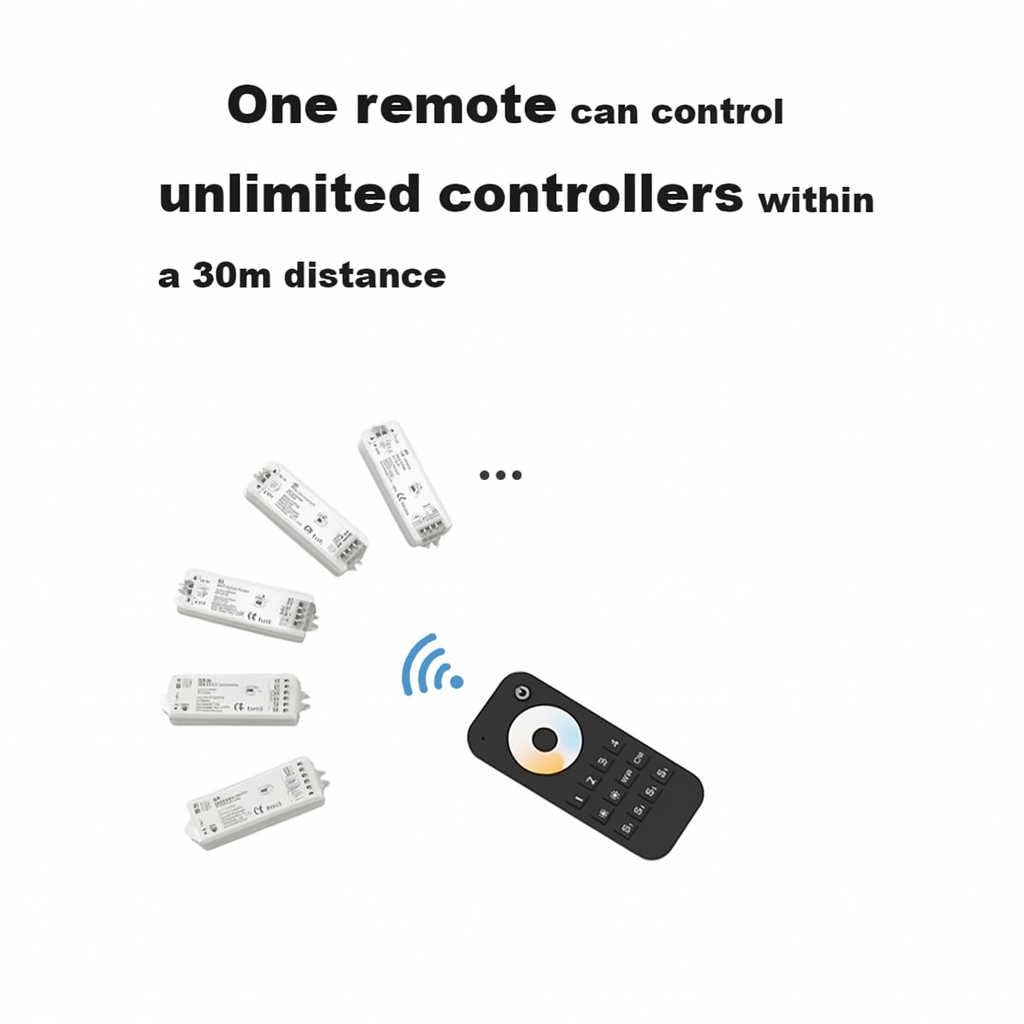

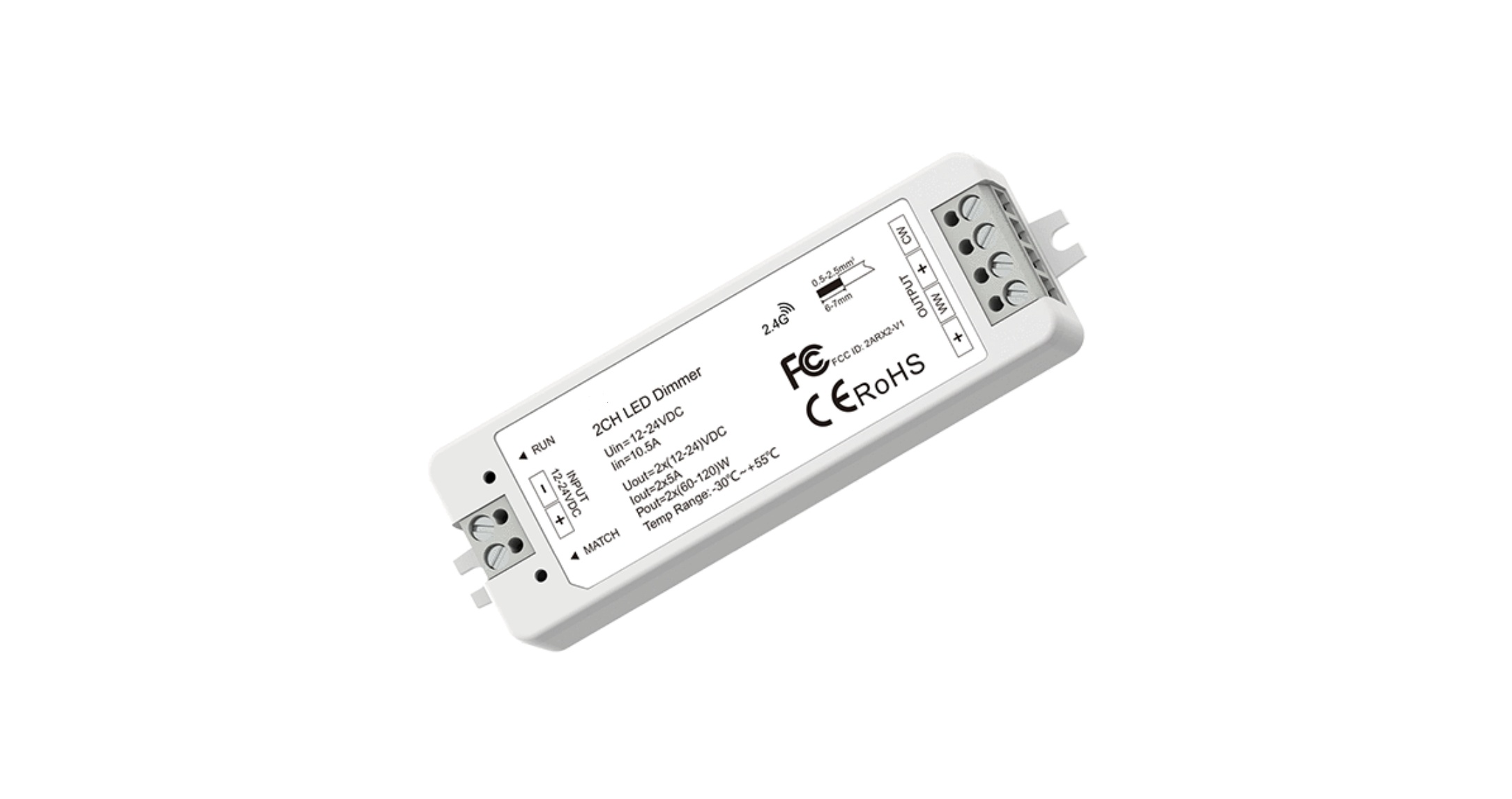

With a 30m wireless range (no line of sight needed), you can control your lighting setup from anywhere in the room. The remote runs on two AAA batteries and talks to a 12/24V receiver, delivering up to 384W at 24V (or 192W at 12V) – plenty of power for most commercial installs.
Simple to use. Quick to set up. Built to last with a 5-year warranty and full CE, EMC, and RED certification.
Whether it’s for retail, hospitality, or home lighting – this kit makes it easy to control brightness and temperature with zero hassle.
