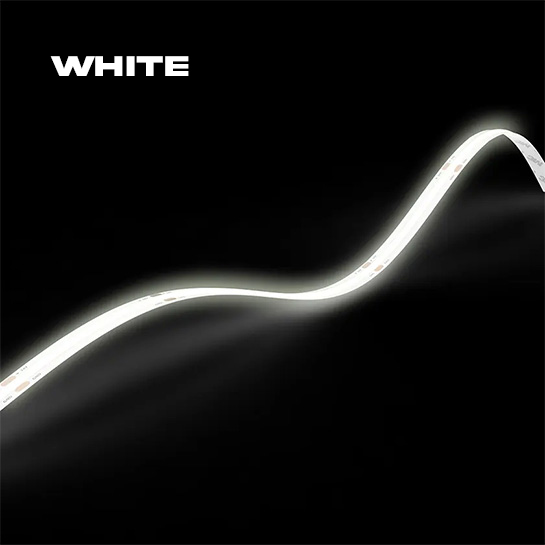

White LED Strip Lights range
Our white LED lights – also known as white LED tape, LED strips or LED ribbon – are our best selling and most popular products. They’re a flexible light source that can be installed almost anywhere.
Every metre of LED tape has at least 60 diodes (our high-power strips have more) – that’s plenty of LEDs to give a smooth and eye-catching effect to any illuminated surface.
All of InStyle’s white LED lights are supplied on 5m reels as standard. But we also offer a full cutting and preparation service, so we can pre-cut or solder your LED tape order to exactly the lengths your project needs. And if you’re working on a bathroom or an exterior project, we also offer a waterproof (IP67 certified) option of all our LED tapes.
White LED lights are ideal for domestic use, clubs, bars, restaurants, hotels, signage and many other applications. With five different brightness levels available, InStyle LED can supply what you need for all your lighting projects. You’ll find that our 5W or 10W per metre 12-volt LED lights are perfect for covings and feature lighting applications – while our 12W, 20W or 24W p.m. strips are great for working lights, general lighting and replacing fluorescent tubes.
To drive your strip lights, we’ll supply a suitable LED transformer (either 12v or 24v) that’s powerful enough for your installation. Like InStyle’s other products, all of our LED strips are commercial grade, which means they’re manufactured using premium components and diodes.
Specifications
Products | 5 Watt | 10 Watt | 12 Watt | 24 Watt |
---|---|---|---|---|
LED Wattage: | 4.8 Watts per metre | 9.6 Watts per metre | 12 Watts per metre | 24 Watts per metre |
Voltage: | 12 Volts | 12 Volts | 24 Volts | 24 Volts |
Colours: | Pure White or Warm White | Pure White or Warm White | Pure White or Warm White | Pure White or Warm White |
IP Rating | IP54 No Coating or IP67 Heat shrink Coating |
IP54 No Coating or IP67 Heat shrink Coating |
IP54 No Coating or IP67 Heat shrink Coating |
IP54 No Coating or IP67 Heat shrink Coating |
LED Chip | 3528 SMD | 3528 SMD (Double Powered) |
2835 SMD | 2835 SMD |
No. of LED’s: | 60 LEDs per Metre | 60 LEDs per Metre | 60 LEDs per Metre | 120 LEDs per Metre |
Lumens: | Warm White = 300lm per metre Pure White = 360lm per metre |
Warm White = 600lm per metre Pure White = 720lm per metre |
Warm White = 1260lm per metre Pure White = 1440lm per metre |
Warm White = 2440lm per metre Pure White = 2800lm per metre |
Reel Lengths | 5 Metres | 5 Metres | 5 Metres | 5 Metres |
Tape width: | 8mm | 8mm | 10mm | 10mm |
Tape Height | 3mm | 3mm | 3mm | 3mm |
LED Life | 50,000 Hours
(Over 10 years of use @ 12 hours a day) |
50,000 Hours
(Over 10 years of use @ 12 hours a day) |
50,000 Hours
(Over 10 years of use @ 12 hours a day) |
50,000 Hours (Over 10 years of use @ 12 hours a day) |
Maximum lengths for each wattage driver
Products | 5 Watt | 10 Watt | 12 Watt | 24 Watt |
---|---|---|---|---|
30W Driver | 6 Metres | 3 Metres | 2.5 Metres | 1.25 Metres |
60W Driver | 12 Metres | 6 Metres | 5 Metres | 2.5 Metres |
100W Driver | 20 Metres | 13 Metres | 8.3 Metres | 4.1 Metres |
150W Driver | 30 Metres | 15 Metres | 12.5 Metres | 6.25 Metres |
200W Driver | 40 Metres | 20 Metres | 16.6 Metres | 8.3 Metres |
320W Driver | 64 Metres | 32 Metres | 26.6 Metres | 13.3 Metres |
Please note that we offer LED light strips and LED drivers in either 12 volt or 24 volt LED lights. Wiring up an LED strip power supply with the wrong voltage will damage your LED tape. So please check that the voltage from your LED power supply is the same as your LED tape’s input voltage before you connect them up.
