12mm x 12mm | Top Bend | Stealth Neon Flex
Commercial Grade LED Neon Flex
Full Specification
| Product Code | SNF-1212-TB-COLOUR |
| Watts / M | 12W |
| Voltage | 24v |
| LED / M | 144 |
| Cut Points | 42mm |

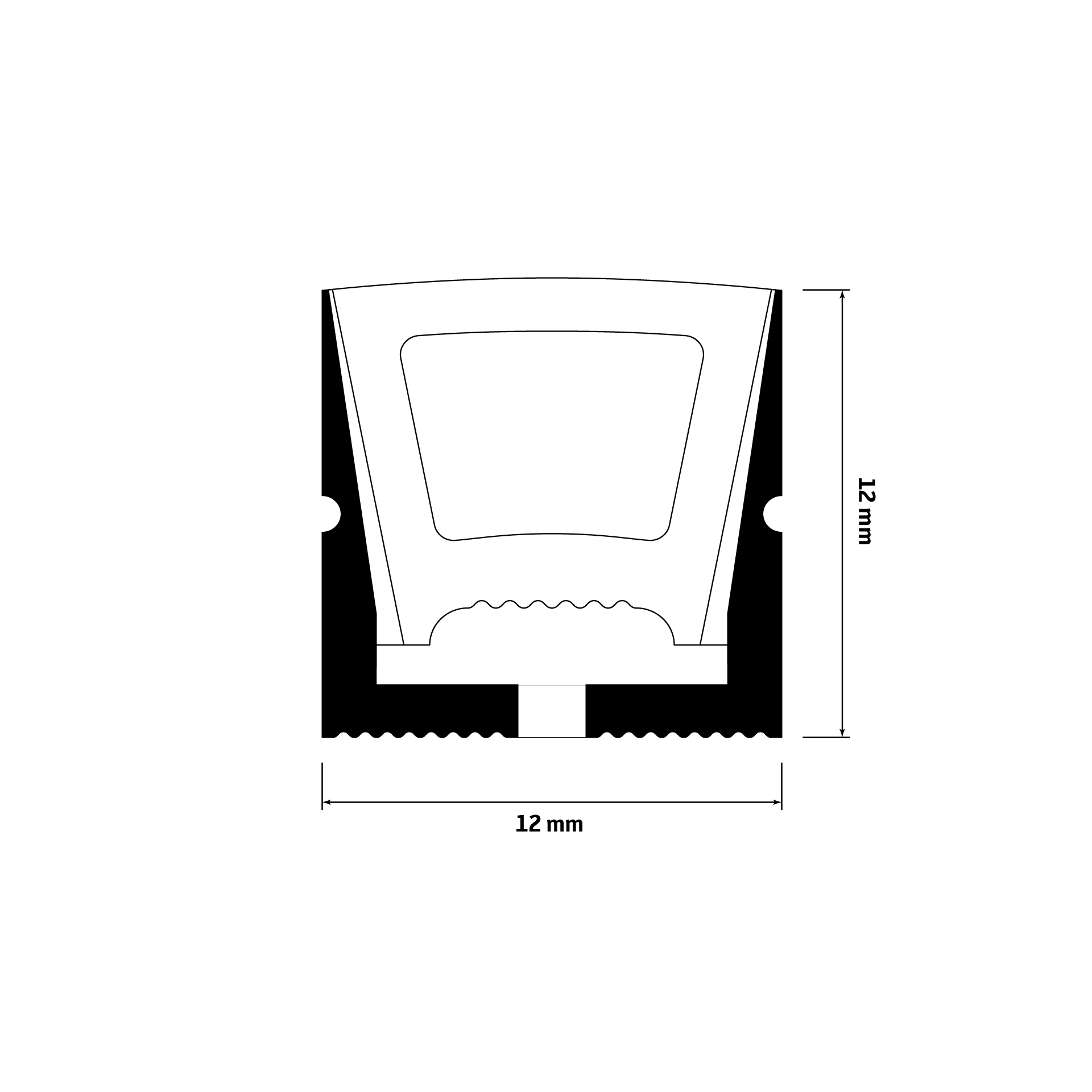

| Neon Width | 12mm |
| Neon Height | 12mm |
| Lumens / M | 960 |
| Lumens / Watt | 80 |
| Colour Options | 2700k, 3000k, 4000k, 6000k |
| CRI | 90+ |
| IP Rating | 67 |
| Beam Angle | 120° |
| Max Run Length | 10m |
| Operating Temp | -40°C to 60°C |
| Chip Set | 2835 |
| Warranty | 3 Years |
The 12mm x 12mm | Top Bend | Stealth Neon Flex is a compact, commercial grade LED neon solution designed for precise vertical curves and clean architectural detailing. Its balanced square profile delivers a refined, modern look, making it ideal for signage, lettering, feature outlines, and integrated lighting applications where space is limited but performance is essential.
Running on a stable 24V supply, this neon flex produces 960 lumens per metre at just 12 watts per metre, delivering an efficient output of 80 lumens per watt. The high density 2835 chipset, with 144 LEDs per metre, ensures smooth, dot free illumination along the full length. A wide 120° beam angle provides even light distribution, while a CRI of 90+ ensures colours appear natural and accurate in both commercial and hospitality environments.

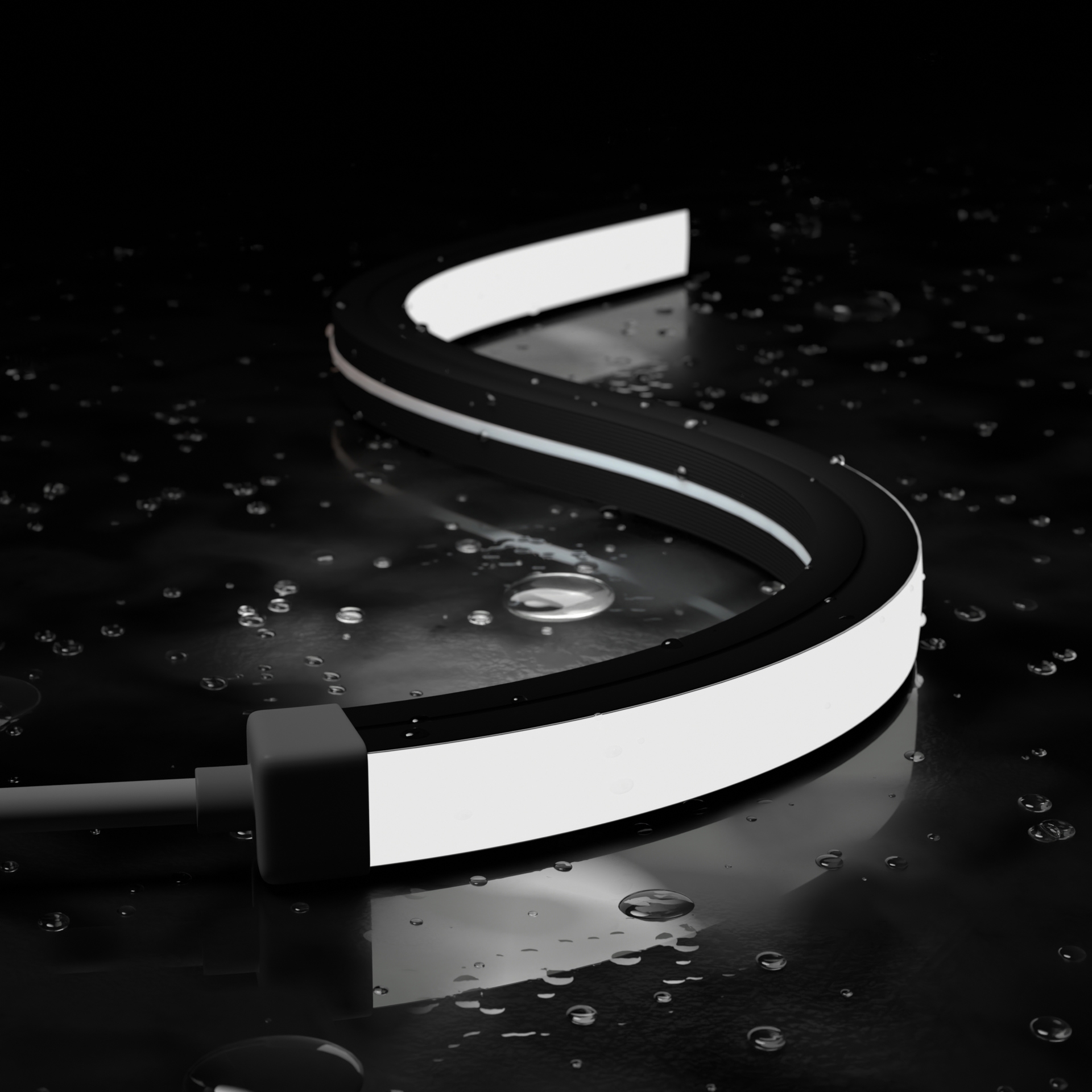

The top bend construction allows the neon to flex vertically, making it well suited to curved lettering and detailed forms. Cut points every 42mm enable precise on site customisation with minimal waste. Available in 2700K, 3000K, 4000K, and 6000K, it supports a wide range of lighting styles, from warm ambient tones to crisp contemporary designs.
With an IP67 rating, an operating temperature range of -40°C to 60°C, support for runs up to 10 metres, and a 3 year warranty, it is built for dependable long term performance.
