12mm x 20mm | Side Bend | Stealth Neon Flex
Commercial Grade LED Neon Flex
Full Specification
| Product Code | SNF-1220-SB-COLOUR |
| Watts / M | 14w |
| Voltage | 24v |
| LED / M | 168 |

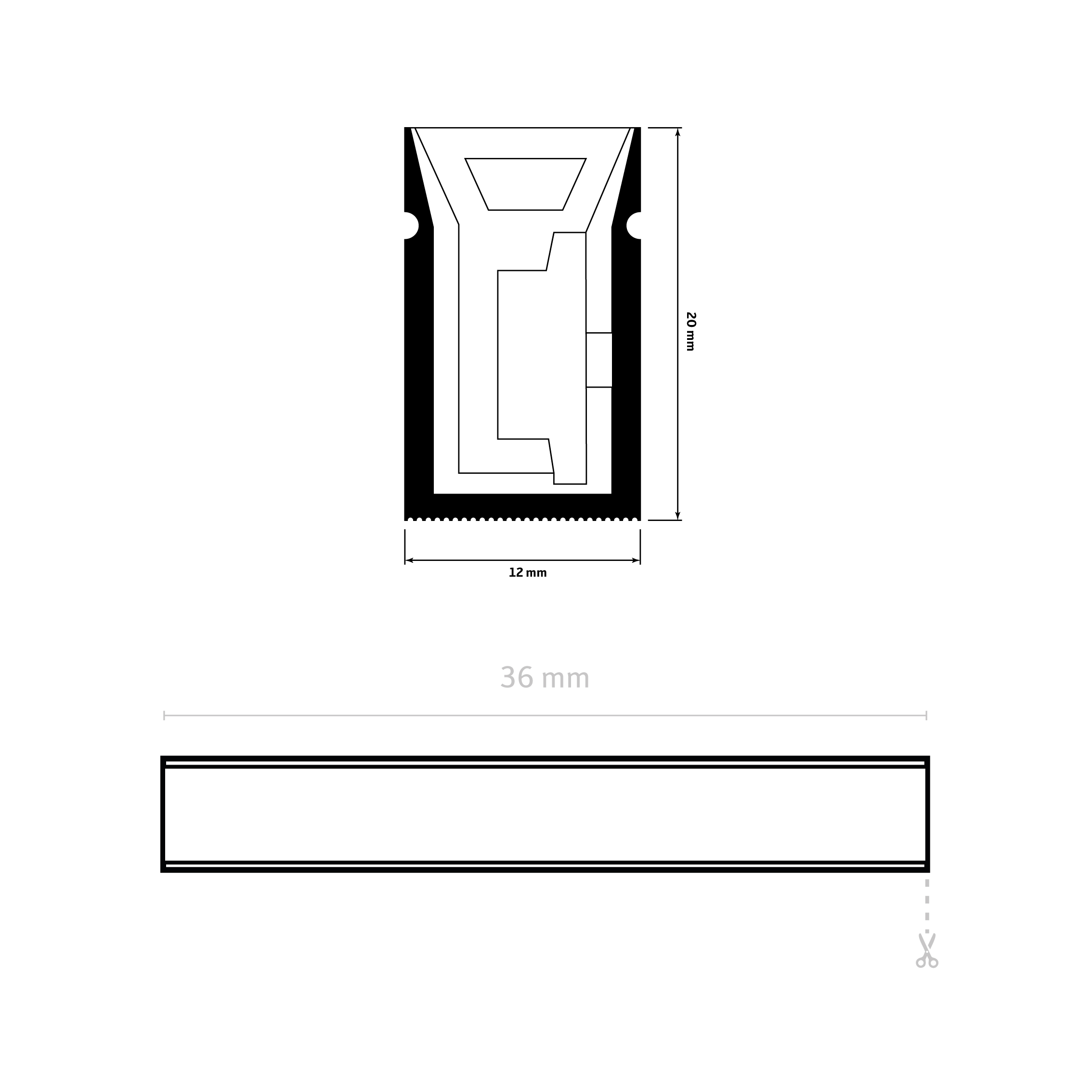

| Cut Points | 36mm |

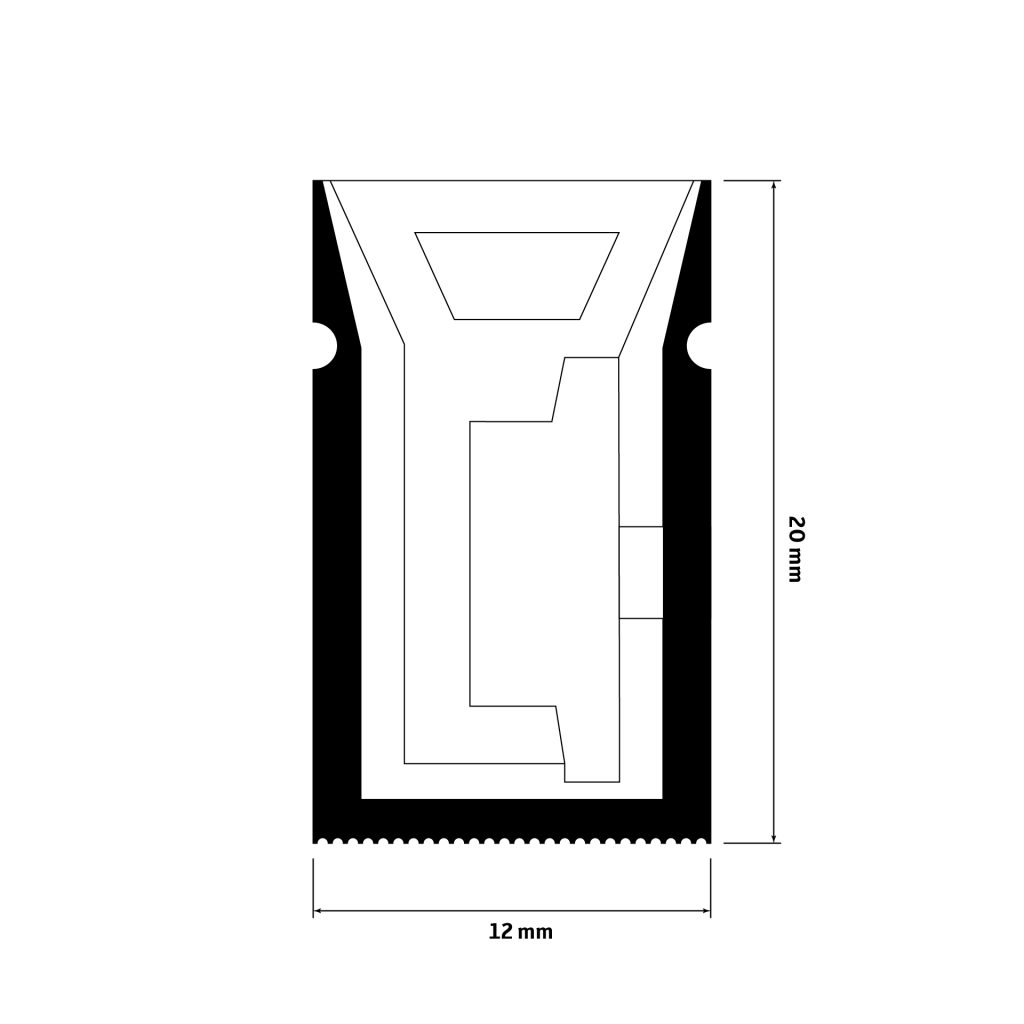

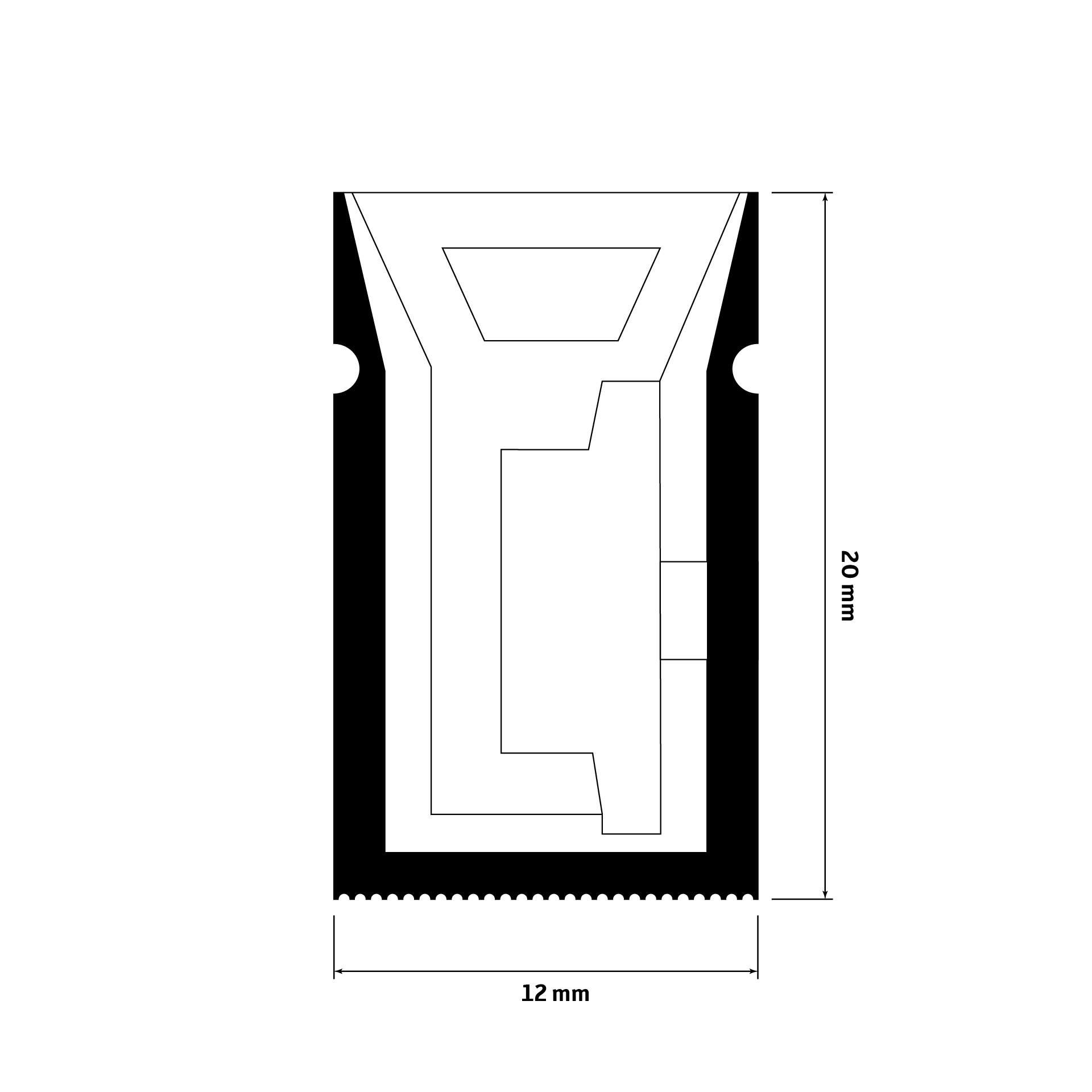

| Neon Width | 12mm |
| Neon Height | 20mm |
| Lumens / M | 1120 |
| Lumens / Watt | 80 |
| Colour Options | 2700k, 3000k, 4000k, 6000k |
| CRI | 90+ |
| IP Rating | 67 |
| Beam Angle | 120° |
| Max Run Length | 10m |
| Operating Temp | -40°C to 60°C |
| Chip Set | 2835 |
| Warranty | 3 Years |

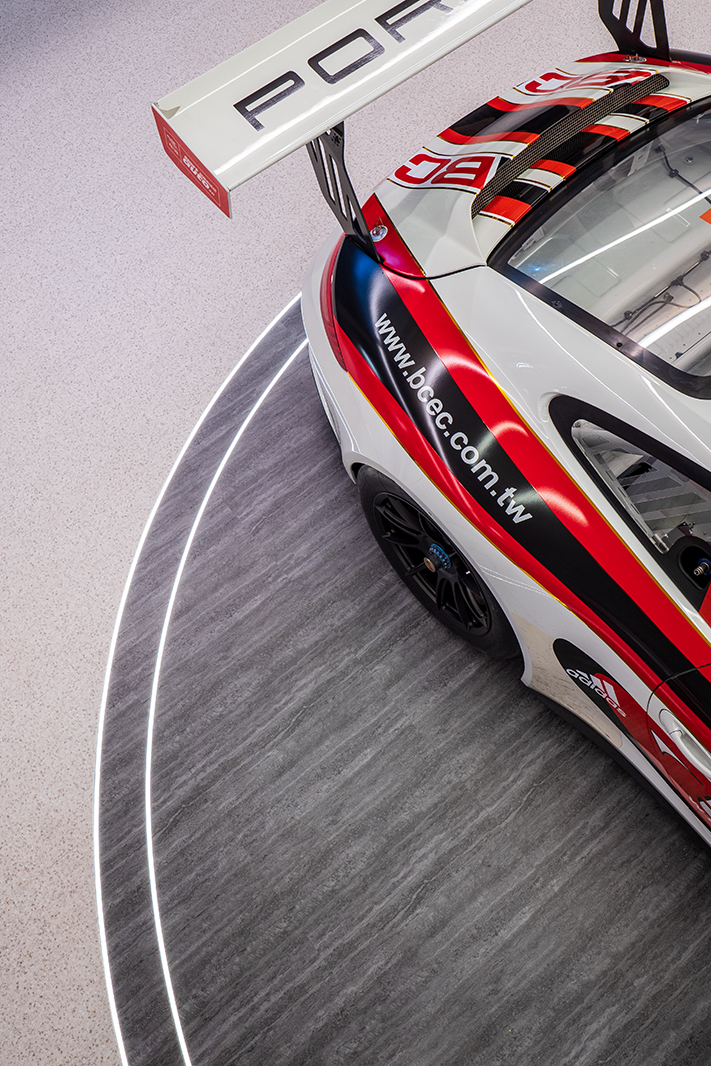

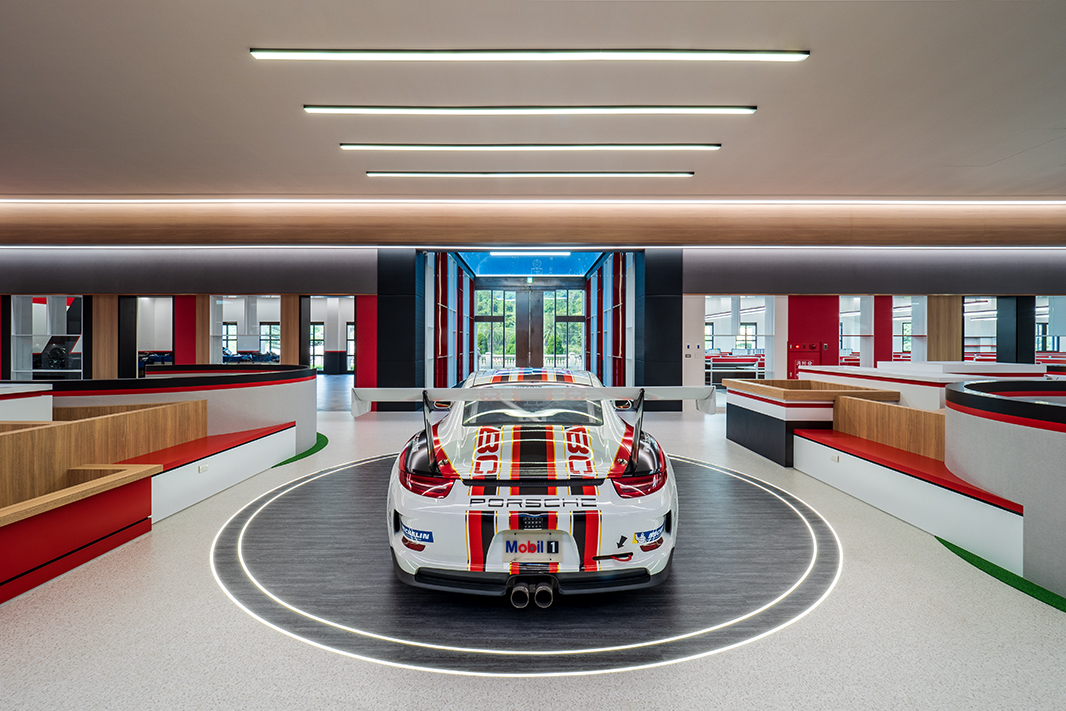

INSTYLE LED’s 12mm x 20mm | Side Bend | Stealth Neon Flex is a refined, commercial grade LED neon solution designed for projects that demand strong illumination with a clean, modern profile. Its balanced 12mm width and reduced 20mm height create a sleek appearance, making it well suited to architectural outlines, signage, feature lighting, and concealed installations where the light source should remain subtle.
Delivering 1120 lumens per metre at 14 watts per metre, this neon flex offers bright, consistent output with an efficiency of 80 lumens per watt. The high density 2835 chipset, with 168 LEDs per metre, ensures smooth, dot free illumination along the entire run. A wide 120° beam angle provides even light distribution, while a CRI of 90+ ensures accurate colour rendering across a range of applications.

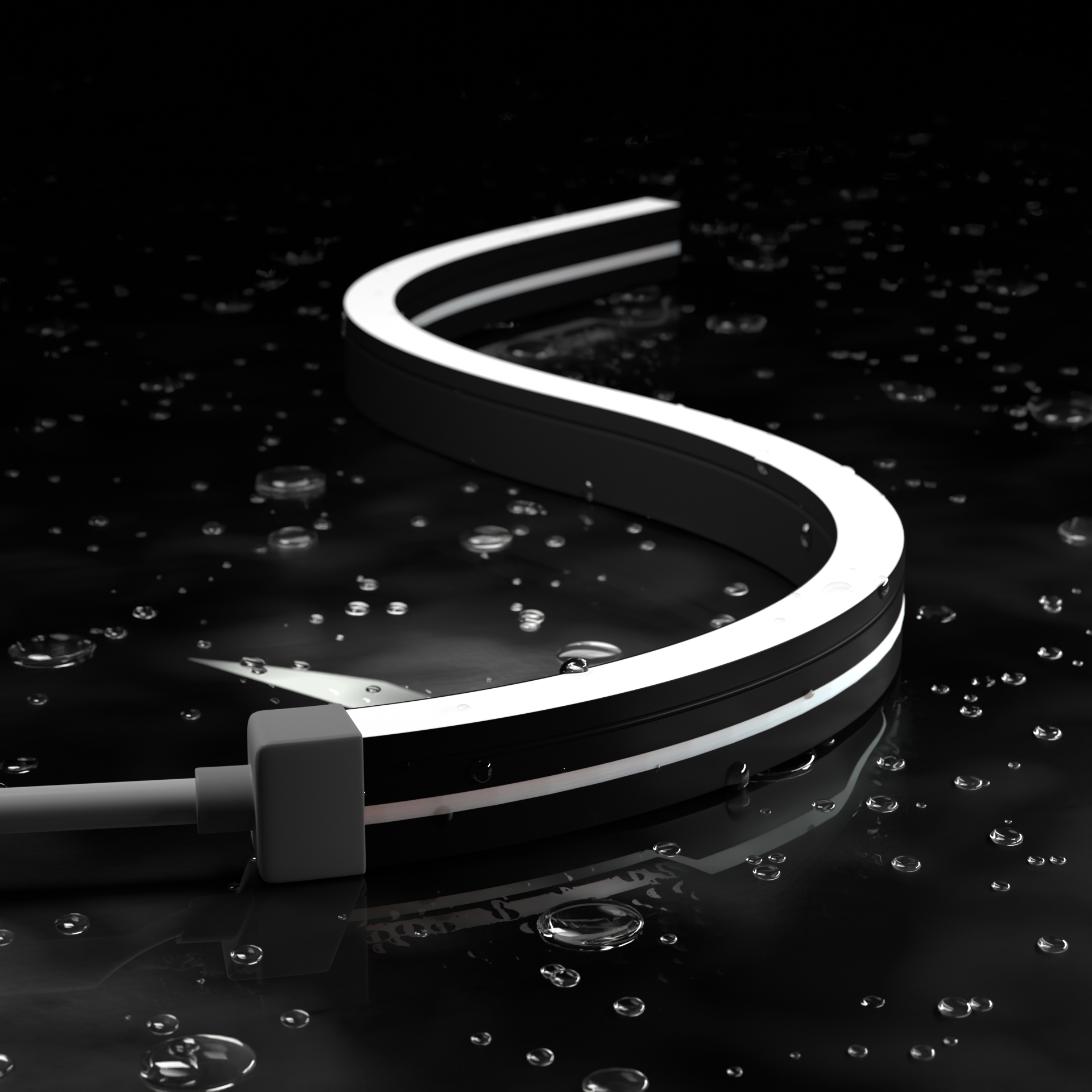

The side bend construction allows for smooth horizontal curves and precise shaping, supported by cut points every 36mm for accurate installation and reduced waste. Operating on a reliable 24V supply, it is available in 2700K, 3000K, 4000K, and 6000K to suit both warm ambient schemes and crisp contemporary designs.
With an IP67 rating, an operating temperature range of -40°C to 60°C, a maximum run length of 10 metres, and a 3 year warranty, it is built for dependable long term performance.
