150W DALI DIMMABLE LED Driver 24v IP20
Commercial Grade LED Driver
Full Specification
| Product Code | DD-150-24 |
| Wattage | 150W |
| Voltage (DC) | 24v |
| Current (DC) | 6.25A |
| Length | 295mm |
| Width | 40mm |
| Depth | 32mm |
| Dimmable | DALI / 1/0-10v |
| IP Rating | IP20 |
| Input Voltage | 220 / 240 AC |
| Input Current | 0.75A @ 230V |
| Inrush Current | 50A / 230V |
| Input Frequency | 50 / 60hz |
| Power Factor | >0.95 |
| Weight | 340g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
150W DALI Dimmable LED Driver – 24V, IP20 Rated
The 150W DALI dimmable LED driver is a high-capacity power supply designed for professional LED lighting systems that require precise and flexible dimming control. Delivering a constant 24V DC output at up to 6.25A, it is ideal for larger LED installations where consistent, flicker-free performance is essential.
Supporting both DALI and 1–10V/0–10V dimming protocols, this driver integrates seamlessly with modern control systems, enabling smooth adjustment of brightness across commercial and residential environments. Whether for retail displays, offices, hospitality, or high-end residential projects, it ensures adaptable lighting control with reliability at its core.

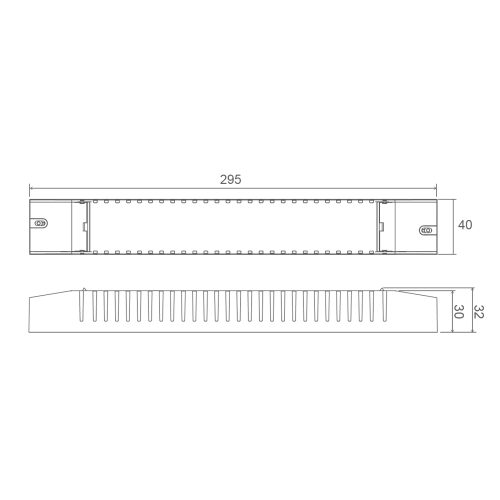

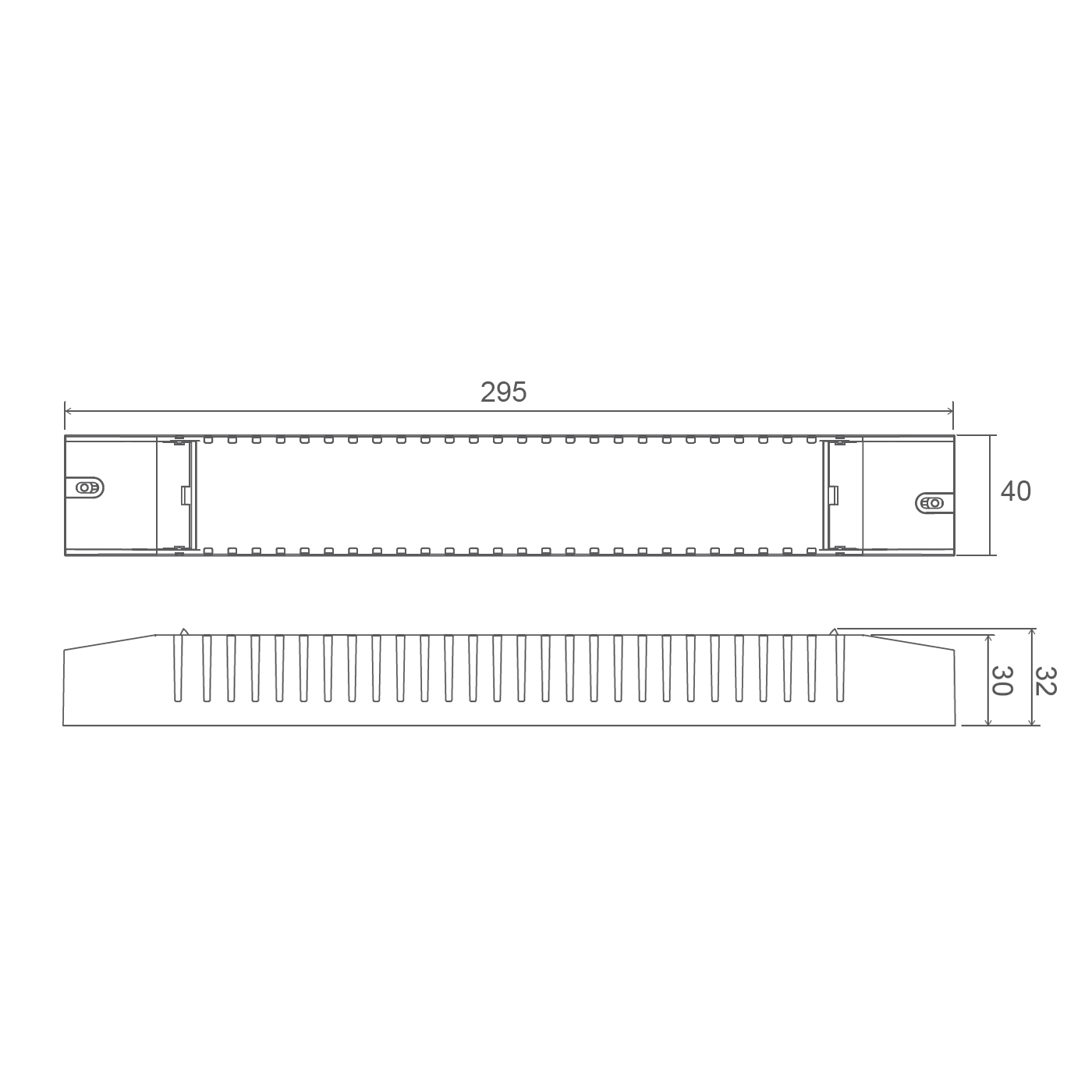

Compact and durable, the unit measures 295mm x 40mm x 32mm and weighs 340g, making installation straightforward even where space is limited. Rated IP20, it is designed for indoor use and operates effectively across a temperature range of -20°C to +50°C.
Engineered for efficiency, the driver features 220–240V AC input, a power factor greater than 0.95, and a low input current of 0.75A at 230V. A 50A inrush current capacity provides added protection during start-up, ensuring long-lasting performance.
Backed by a 5-year warranty, the 150W DALI dimmable LED driver is a dependable solution for demanding lighting projects requiring control, efficiency, and durability.
