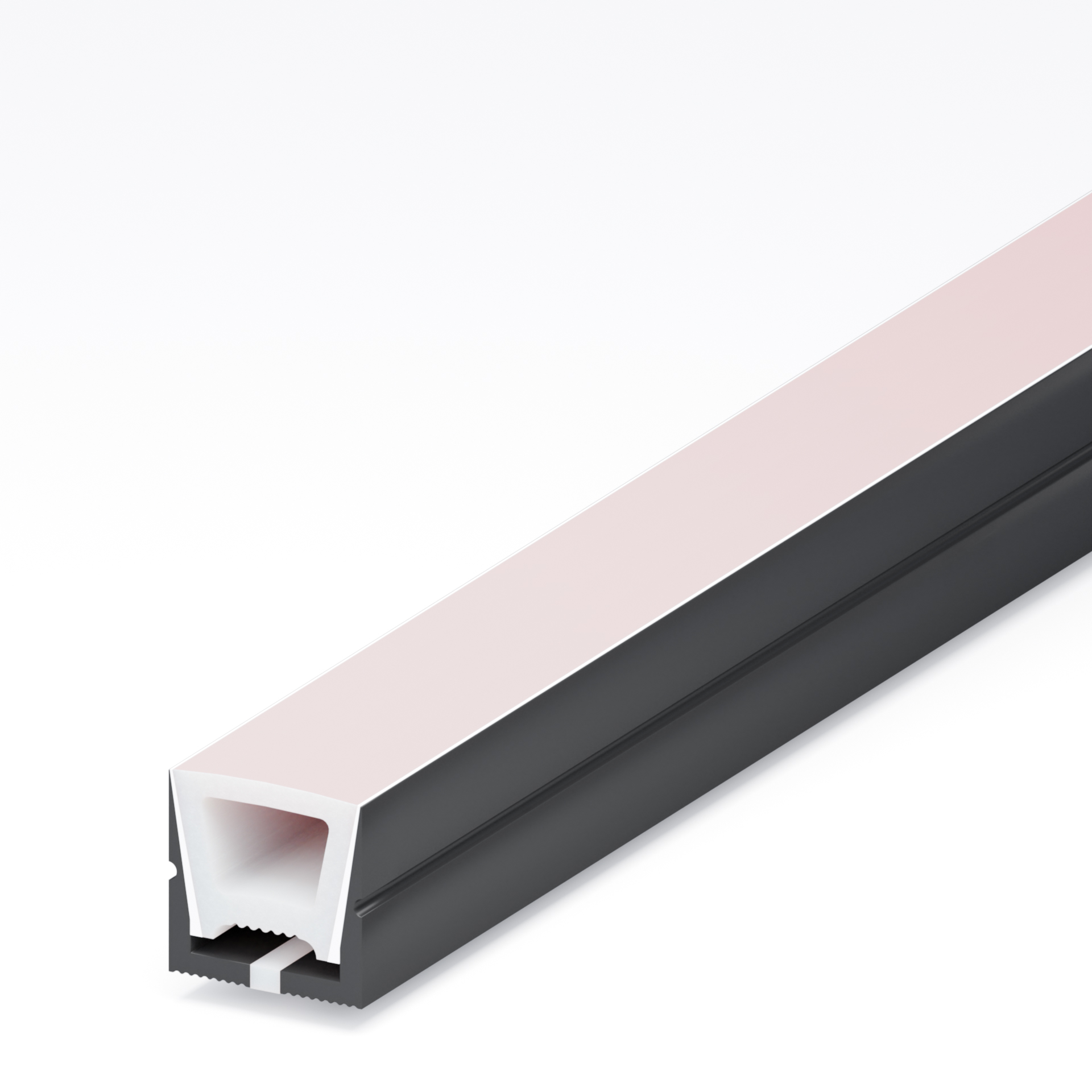

16mm x 16mm | Top Bend | Stealth Neon Flex
Commercial Grade LED Neon Flex
Full Specification
| Product Code | SNF-1616-TB-COLOUR |
| Watts / M | 14w |
| Voltage | 24V |
| LED / M | 168 |

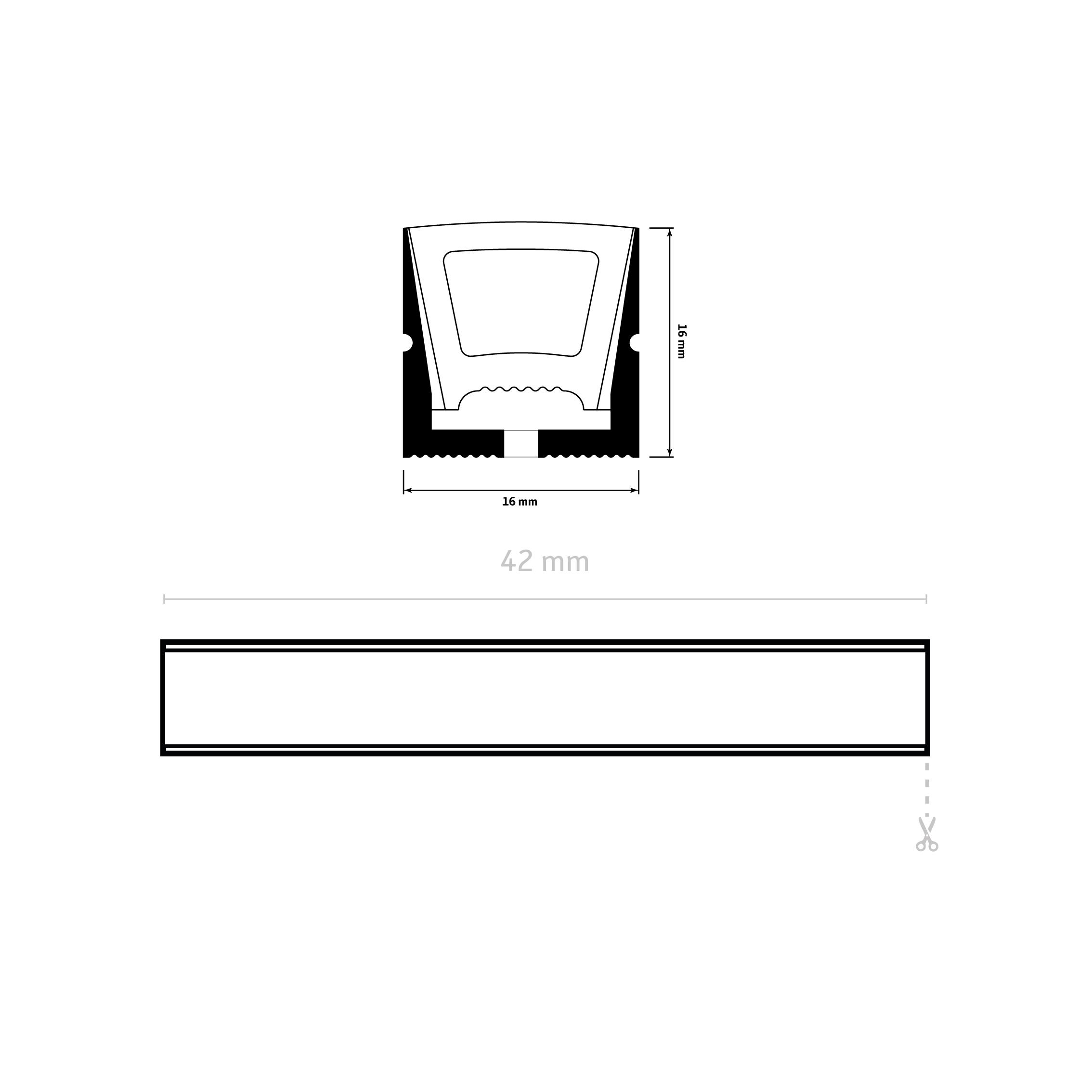

| Cut Points | 42mm |

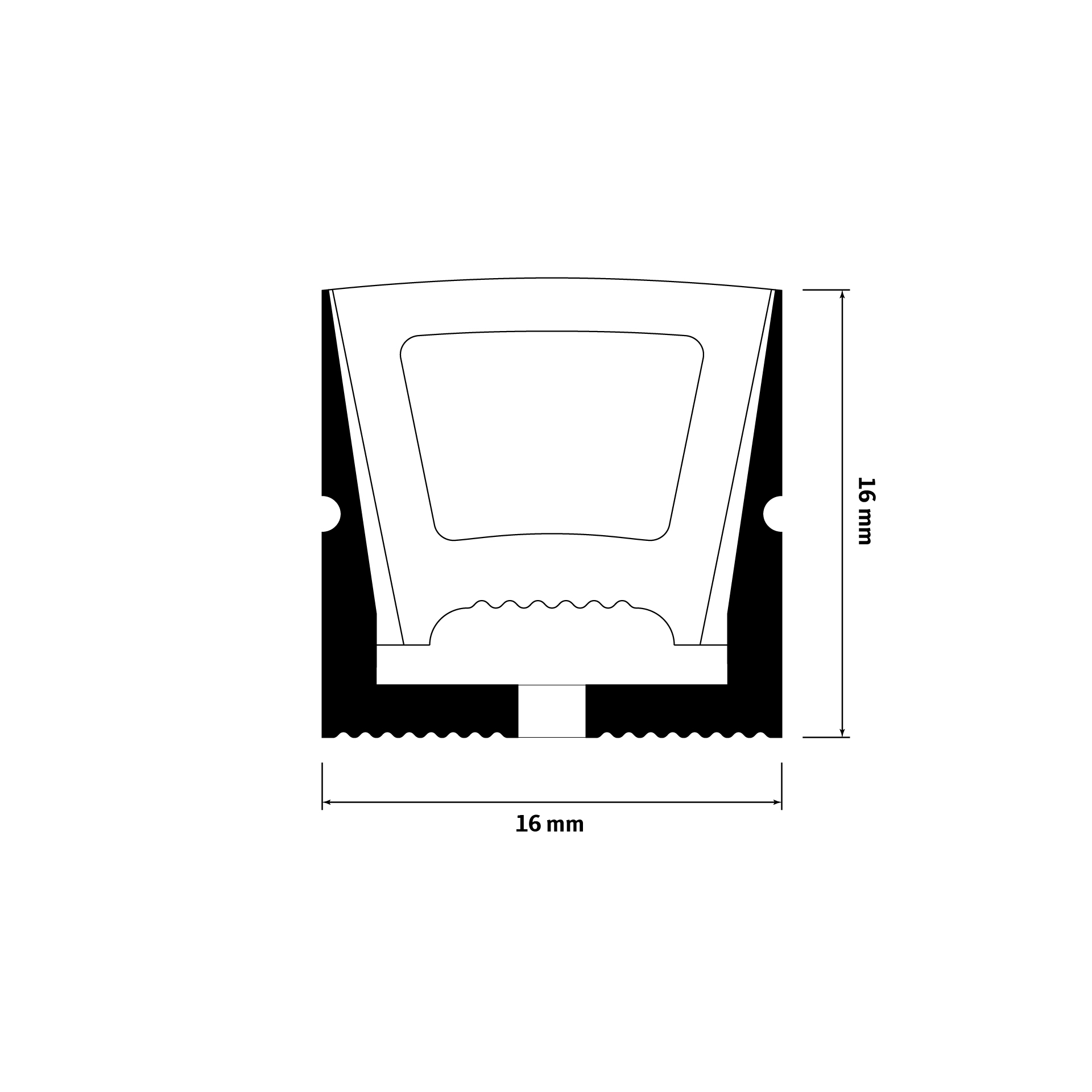

| Neon Width | 16mm |
| Neon Height | 16mm |
| Lumens / M | 960 |
| Lumens / Watt | 70 |
| Colour Options | 2700k, 3000k, 4000k, 6000k |
| CRI | 90+ |
| IP Rating | 67 |
| Beam Angle | 120° |
| Max Run Length | 10m |
| Operating Temp | -40°C to 60°C |
| Chip Set | 2835 |
| Warranty | 3 Years |

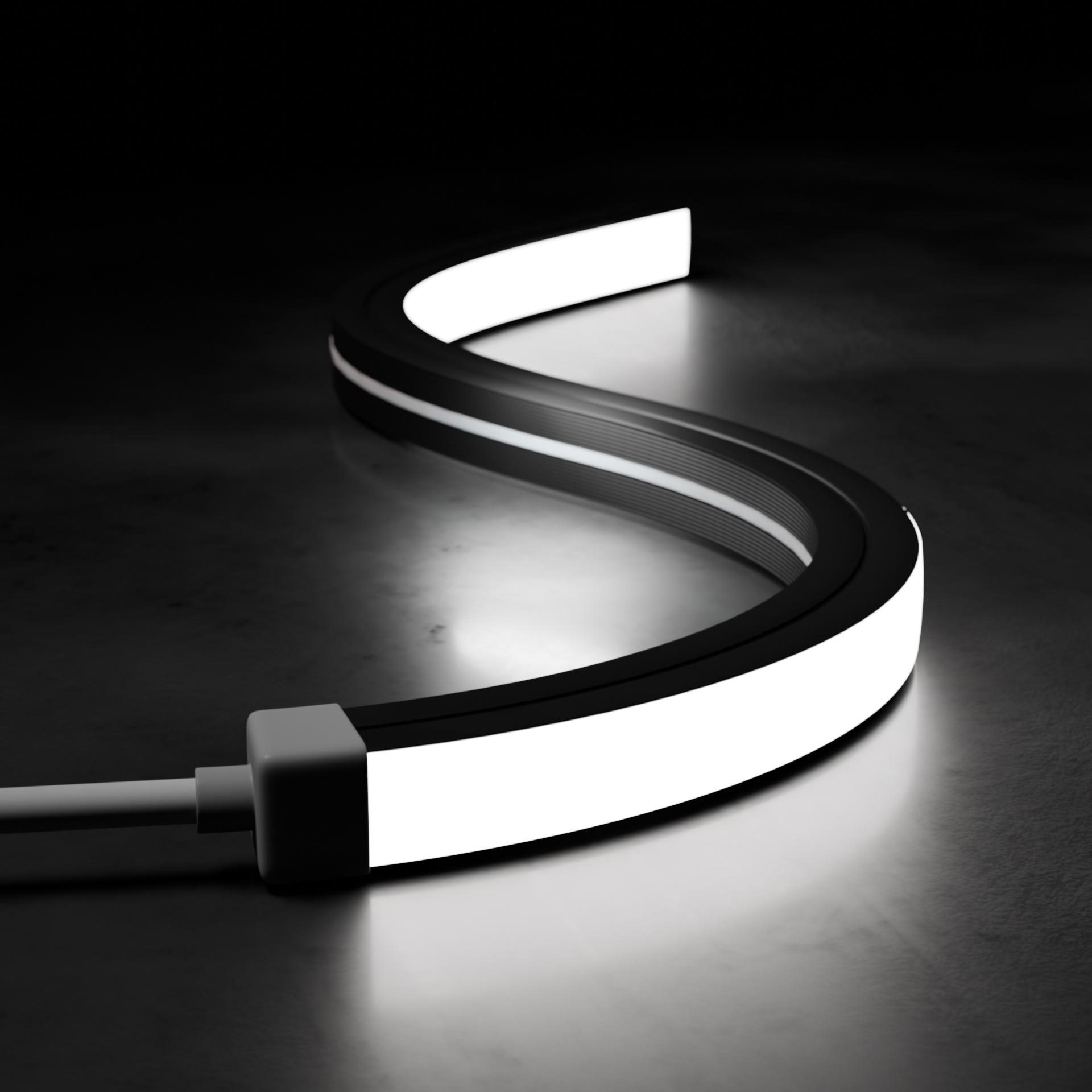

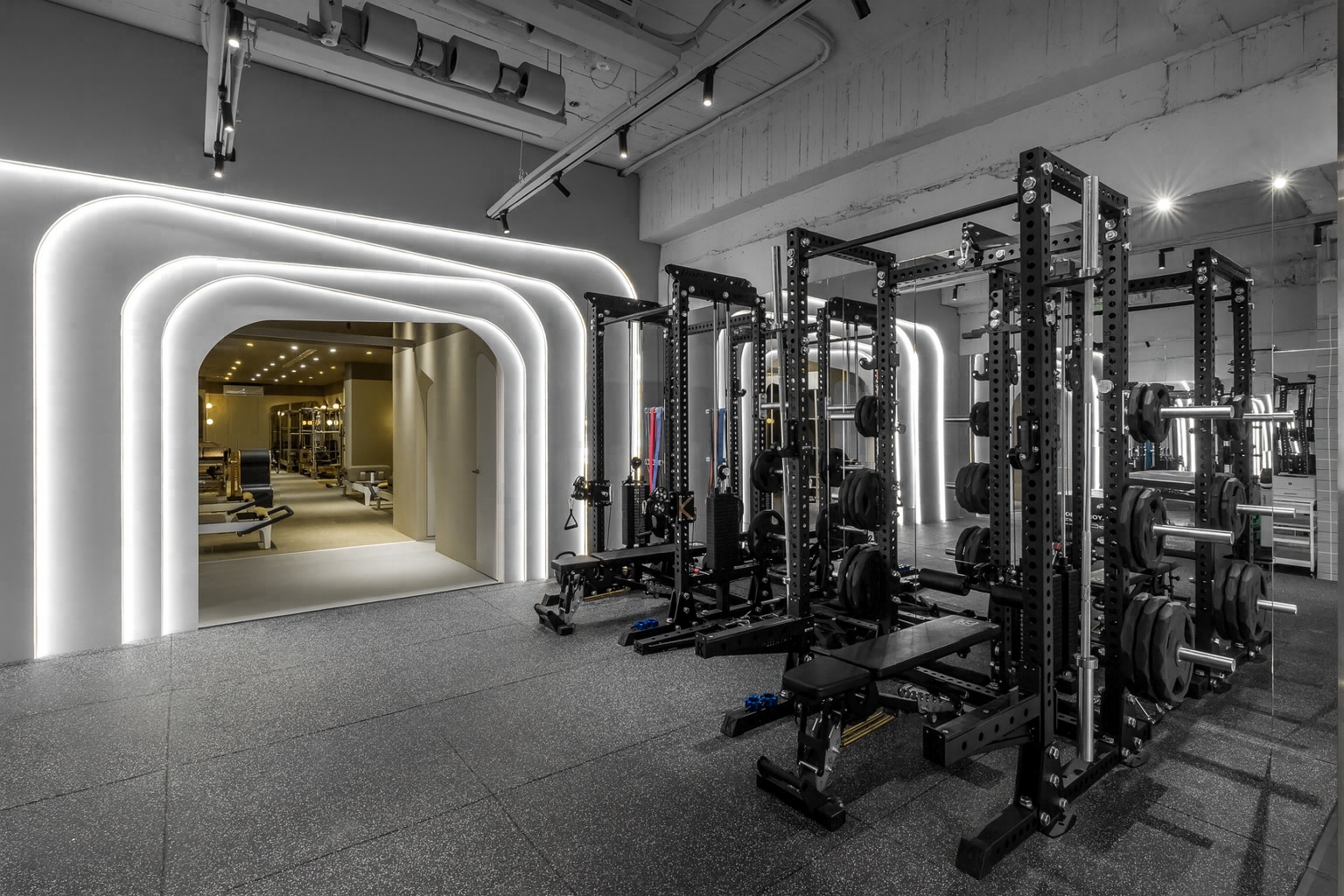

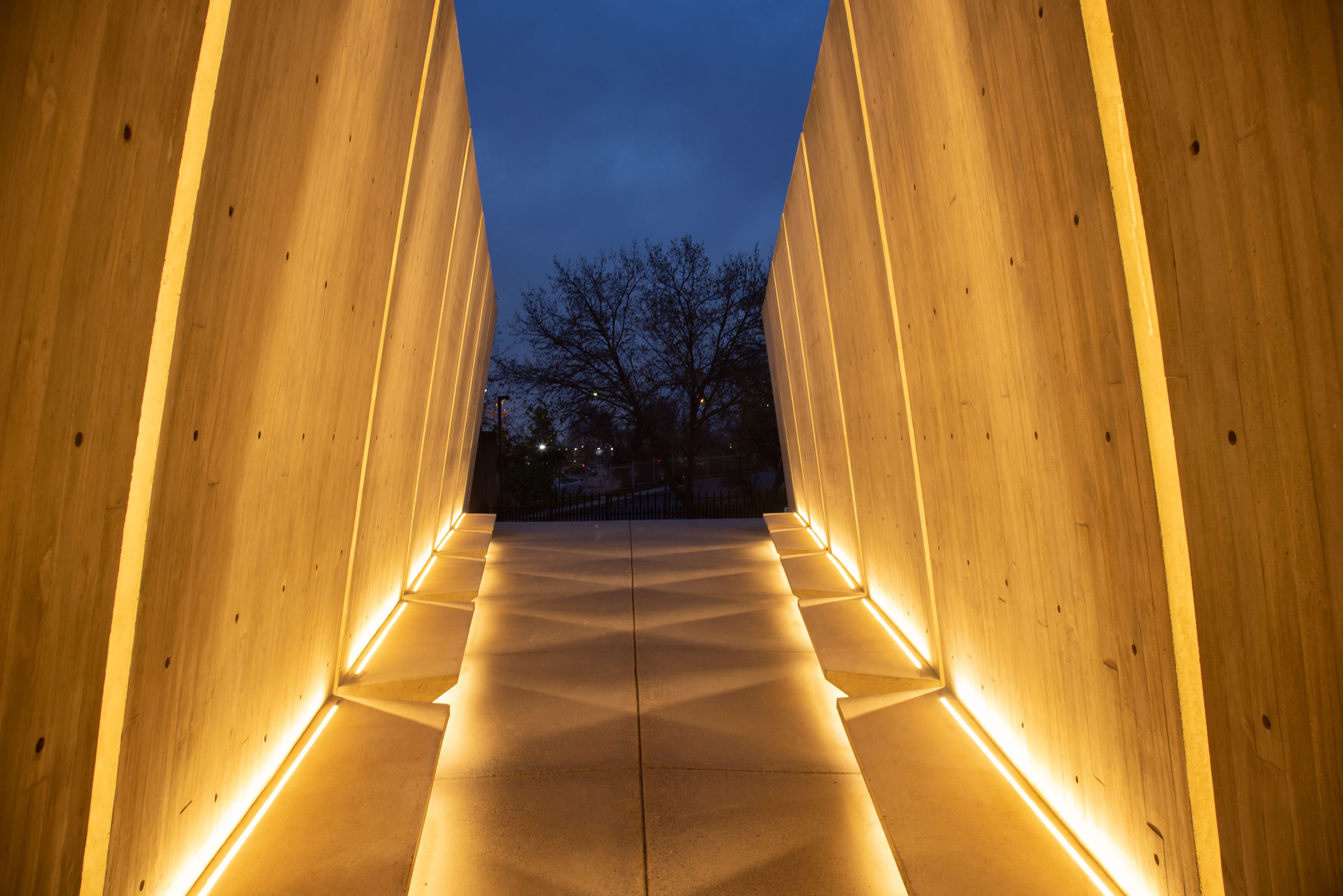

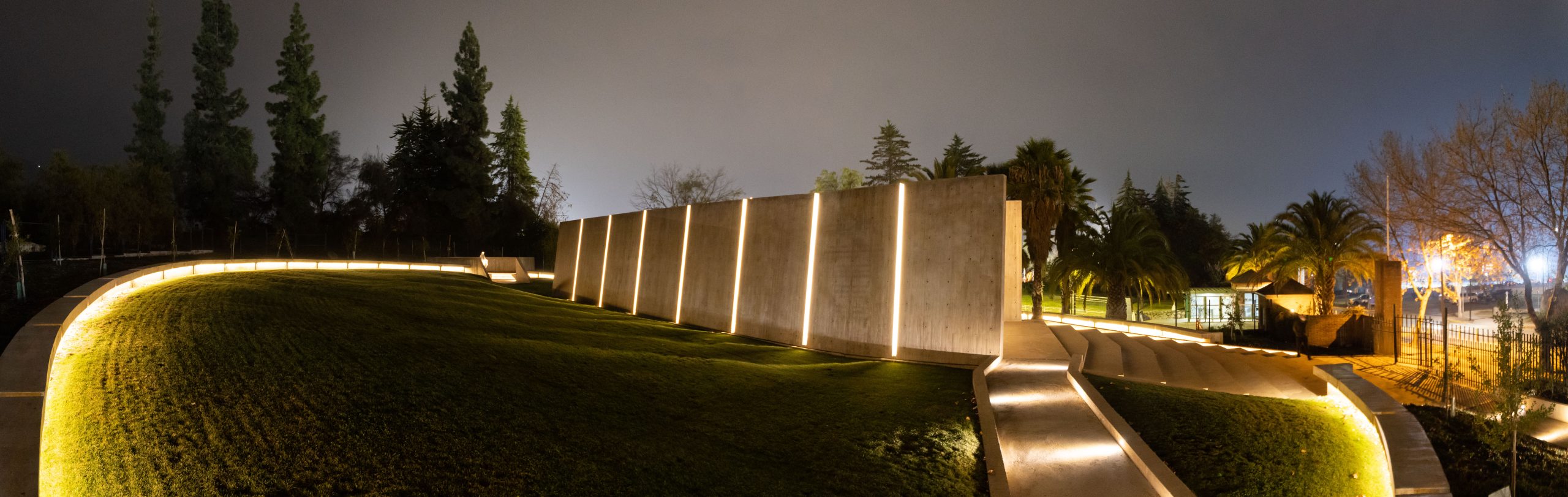

The 16mm x 16mm | Top Bend | Stealth Neon Flex is a versatile, commercial grade LED neon solution designed for smooth vertical curves and clean, continuous lines. With its balanced square profile, it delivers a refined appearance that suits architectural features, signage, wayfinding, and decorative applications where consistent light and precise shaping are required.
Operating on a reliable 24V supply, this neon flex produces 960 lumens per metre at 14 watts per metre, offering dependable performance with an efficiency of 70 lumens per watt. The high density 2835 chipset, with 168 LEDs per metre, ensures uniform, dot free illumination along the full length. A 120° beam angle provides even light spread, while a CRI of 90+ ensures accurate colour rendering for both commercial and hospitality environments.

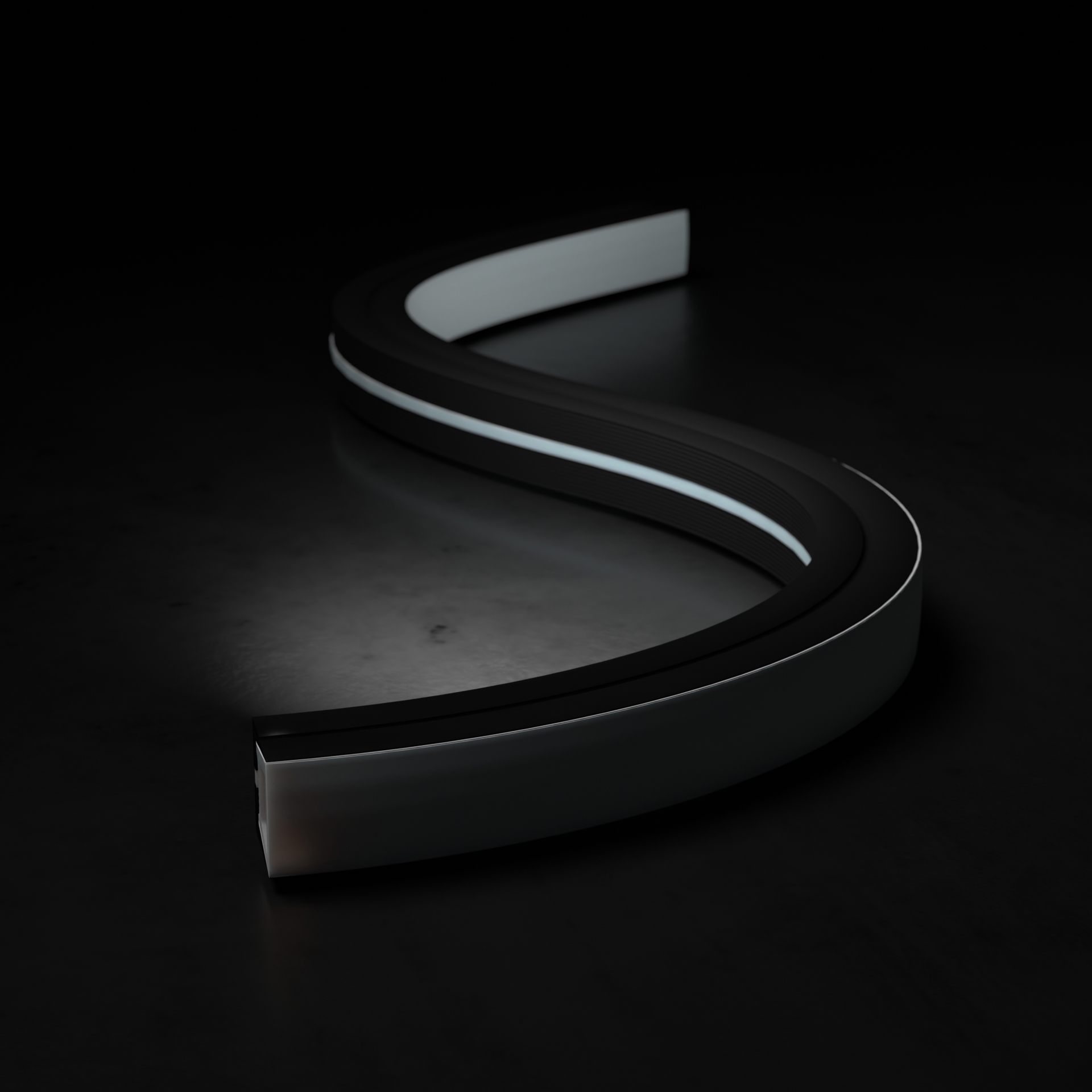

The top bend construction allows the product to flex vertically, making it ideal for lettering, curves, and detailed forms. Cut points every 42mm allow for precise on site customisation, helping to achieve clean results with minimal waste. Available in 2700K, 3000K, 4000K, and 6000K, it supports a wide range of lighting designs, from warm ambience to crisp modern finishes.

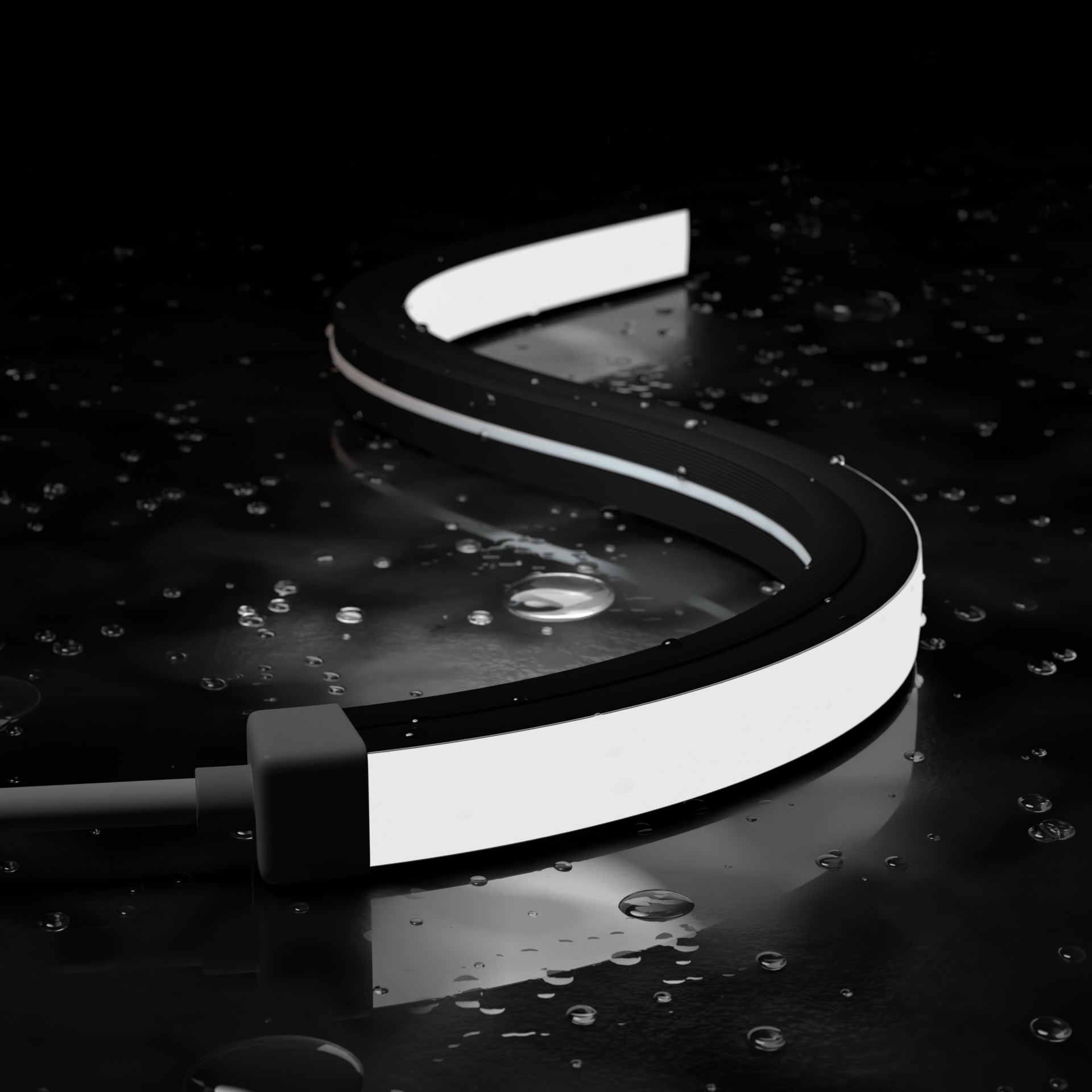

With an IP67 rating, an operating temperature range of -40°C to 60°C, support for runs up to 10 metres, and a 3 year warranty, it is built for reliable long term performance in demanding environments.
