200W Constant Voltage LED Driver 24v IP67
Commercial Grade LED Driver
Full Specification
| Product Code | IN-200-24-IP |
| Wattage | 200W |
| Voltage (DC) | 24v |
| Current (DC) | 8.3A |
| Length | 155.6mm |
| Width | 41.5mm |
| Depth | 30mm |
| Dimmable | Non Dimmable |
| IP Rating | IP67 |
| Input Voltage | 220 / 240AC |
| Input Current | 1.45A / 230V |
| Inrush Current | 81A / 230V |
| Input Frequency | 50 / 60Hz |
| Power Factor | >0.95 |
| Weight | 500g |
| Operating Temp | -20°C / 45°C |
| Warranty | 5 Years |
200W Constant Voltage Waterproof LED Driver | 24V, IP67
This 200W constant voltage waterproof LED driver is designed for high-demand commercial and residential LED lighting installations. Converting 100–240V AC mains into a reliable 24V DC output, it provides safe and stable power for LED strip lights, signage, panels, and other low-voltage systems.
With an output of 8.3A at 24V DC, the unit delivers strong and consistent performance. Its power factor of >0.95 ensures excellent efficiency, while an inrush current rating of 81A/230V makes it suitable for large-scale, professional-grade installations.

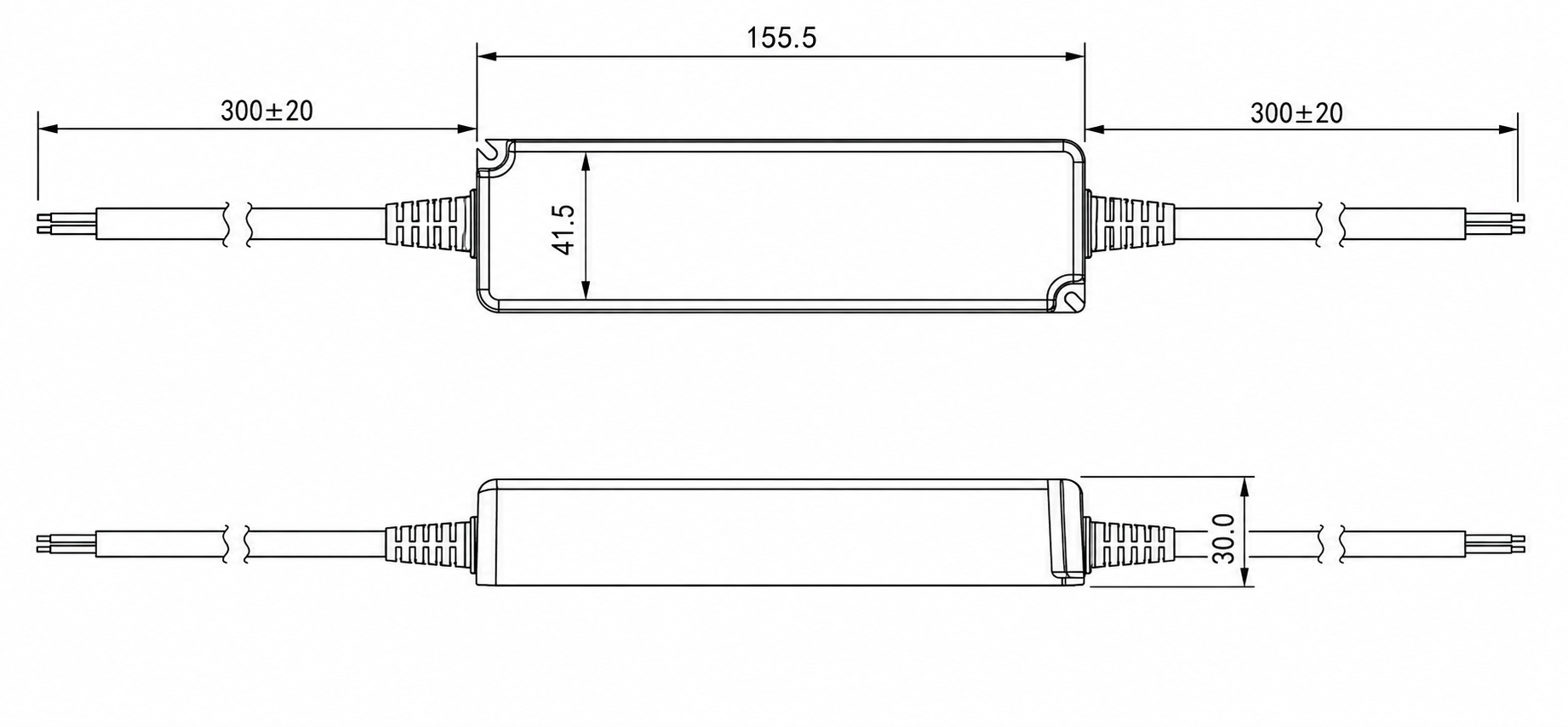

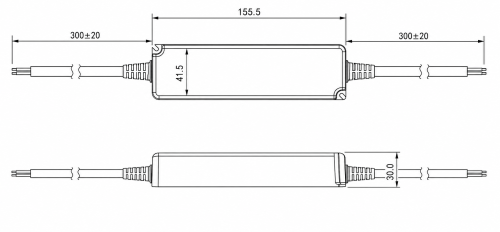

Engineered to withstand tough conditions, this driver carries an IP67 rating, guaranteeing full protection against dust and water. Perfect for kitchens, bathrooms, gardens, architectural projects, and outdoor applications, it ensures long-lasting durability. Measuring 155.6mm x 41.5mm x 30mm and weighing 500g, it offers a compact yet robust design for straightforward installation.
Operating in temperatures from -20°C to 45°C, it performs reliably across a range of environments. Non-dimmable, it is ideal for simple on/off applications where stable voltage is essential.
Backed by a 5-year warranty, the 200W constant voltage waterproof LED driver is a dependable, professional solution for large-scale lighting projects.
