24 Chanel – 24 x 5A – DMX 512 – LED Decoder / Controller
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DMX-24 |
| Protocol | DMX |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1-24 |
| Input Voltage | 12-24V DC |
| Input Current | 120.5A |
| Output Voltage | 24 x (12-24V) DC |
| Output Current | 24CH, 5A/CH |
| Output Wattage | 24 x (60w – 12v / 120w – 24v) |
| Signal | DMX512 |
| Dimming Range | 0 -100% |

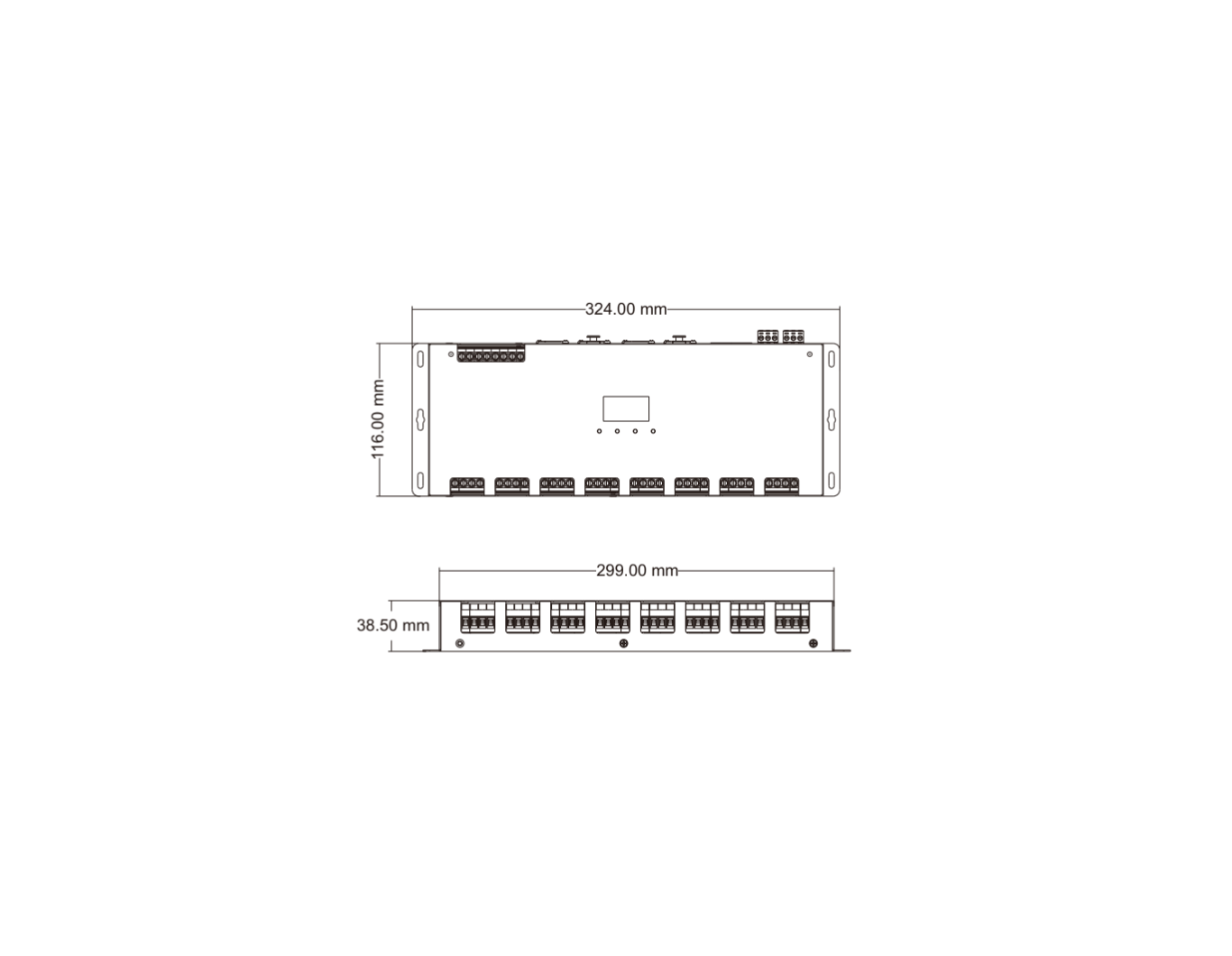

| Dimensions | L335 x W135 x H46mm |
| Weight | 1.289kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN55032:2015 / EN61000-3-2:2014, EN61000-3-2:2013, EN55024 :2010/A1:2015 |
| Safety standard(LVD) | EN 61347-1:2015 EN 61347-2-11:2015 |
| Certification | CE, RoHS, EMC, LVD |
| Compatible Products |
The RC-DMX-24 is a high-performance 24-channel constant voltage DMX512 & RDM decoder/master, designed for large-scale LED lighting projects. With up to 2880W output power and 5A per channel, it’s built for reliability and precision. Featuring DMX and standalone master modes, selectable 8/16-bit resolution, multiple PWM frequencies, and customizable dimming curves, it delivers smooth, flicker-free control for even the most demanding applications.
An OLED display with intuitive 4-button control makes setup easy, while built-in RGB programs and advanced protections ensure both flexibility and safety. Perfect for architectural, stage, and commercial lighting systems that require power, scalability, and professional-grade control.
