30W Constant Voltage LED Driver 12v / 24v IP20
Commercial Grade LED Driver
Full Specification
| Product Code | EN-030-24 |
| Wattage | 30W |
| Voltage (DC) | 24V |
| Current (DC) | 1.25A |

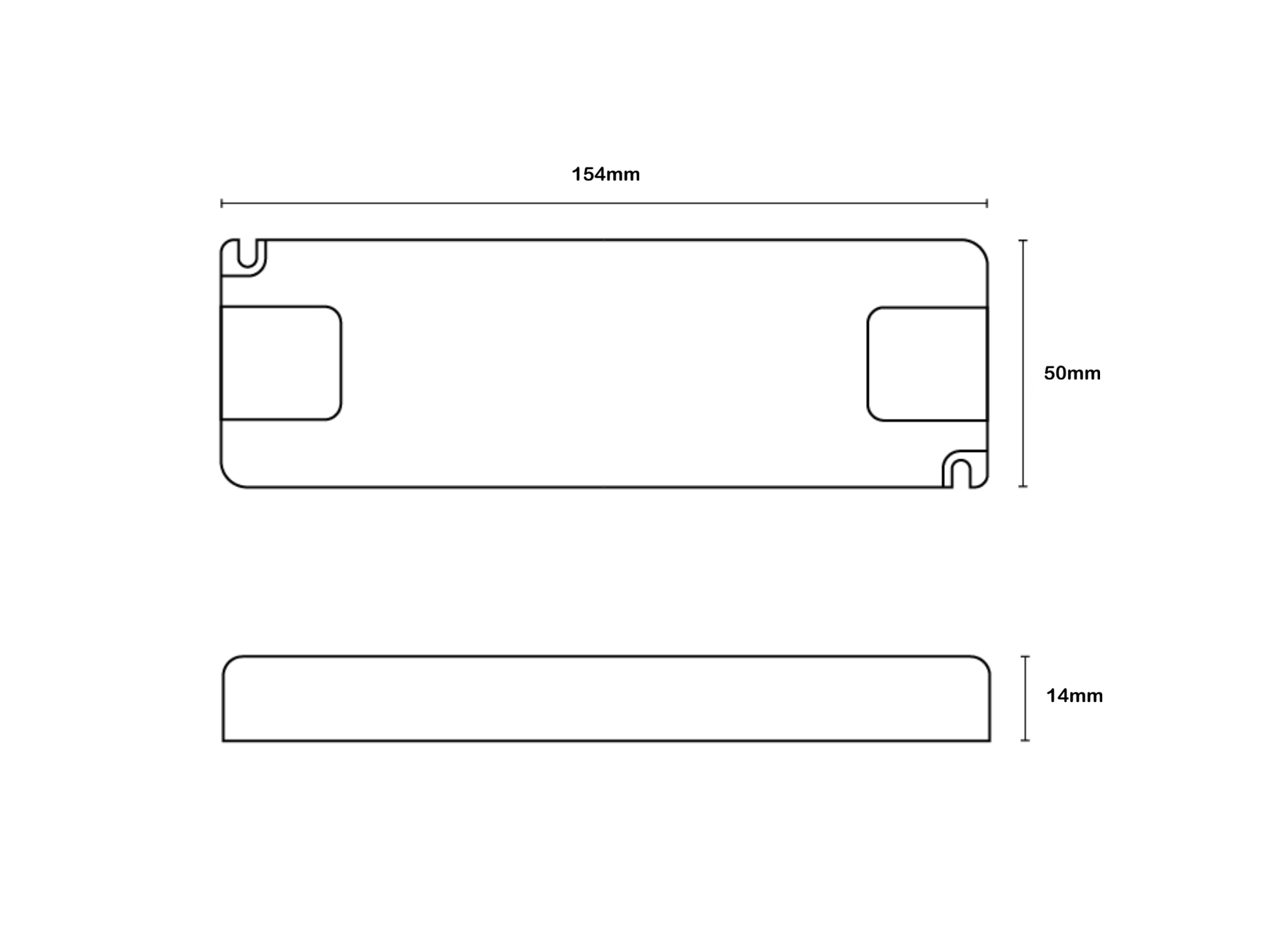

| Length | 154mm |
| Width | 50mm |
| Depth | 14mm |
| Dimmable | No |
| Ip Rating | 20 |
| Input Voltage | 220/240 AC |
| Input Current | 0.17A / 230V |
| Inrush Current | 30A / 230V |
| Input Frequency | 47/63Hz |
| Power Factor | >0.98 |
| Weight | 90g |
| Operating Temp | -20°C/50°C |
| Warranty | 5 Years |
| Protection | Over Current Protection: – YES, Range: 110 ÷ 140%, Recovers automatically after fault condition is removed
Short Circuit Protection – YES, Recovers automatically after fault condition is removed. Over Voltage Protection – YES, Over Temp. Protection – YES – Recovers automatically after fault condition is removed. Electrical Safety Class – CLASS II |
| Safety | Safety Standards Compliance: EN61347-1, EN61347-2-13
Withstand Voltage IN/OUT: 5.3kVDC/1min Isolation Resistance IN/OUT: 50MΩ/500VDC/25°C/70% EMC Emission Compliance: EN55015 EMC Immunity Compliance: EN61547; EN61000-4-2, -3, -4, -5, -6; Harmonic Current Compliance: EN61000-3-3; EN61000-3-2 class C ( ≥ 100% load) |
30W Constant Voltage LED Driver | 12V / 24V, IP20
This 30W constant voltage LED driver is designed for powering commercial-grade LED strip lights and other 12V or 24V DC lighting systems. Built for reliability and safety, it converts 220/240V AC mains input into a stable low-voltage output, ensuring consistent performance across your installation.

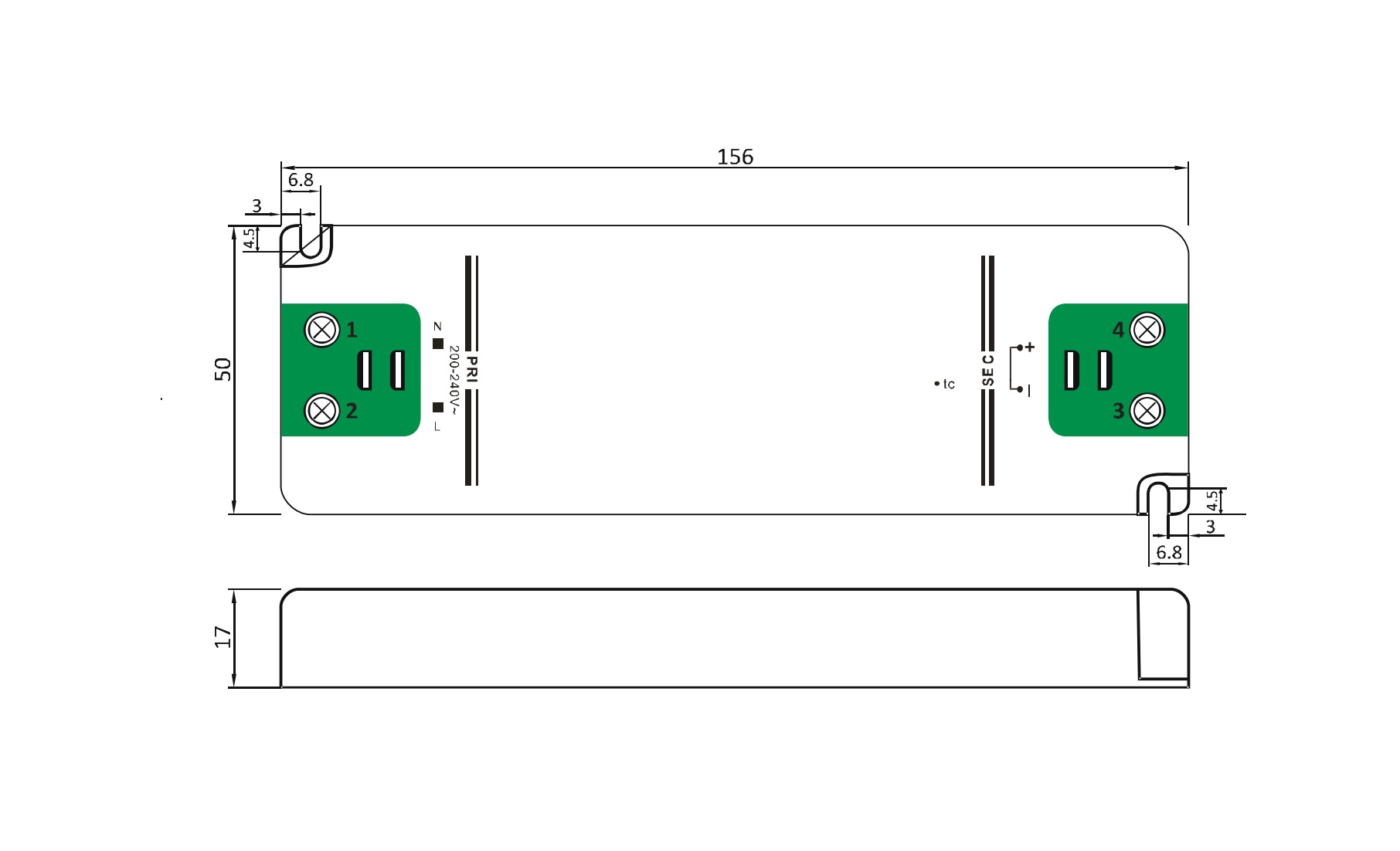

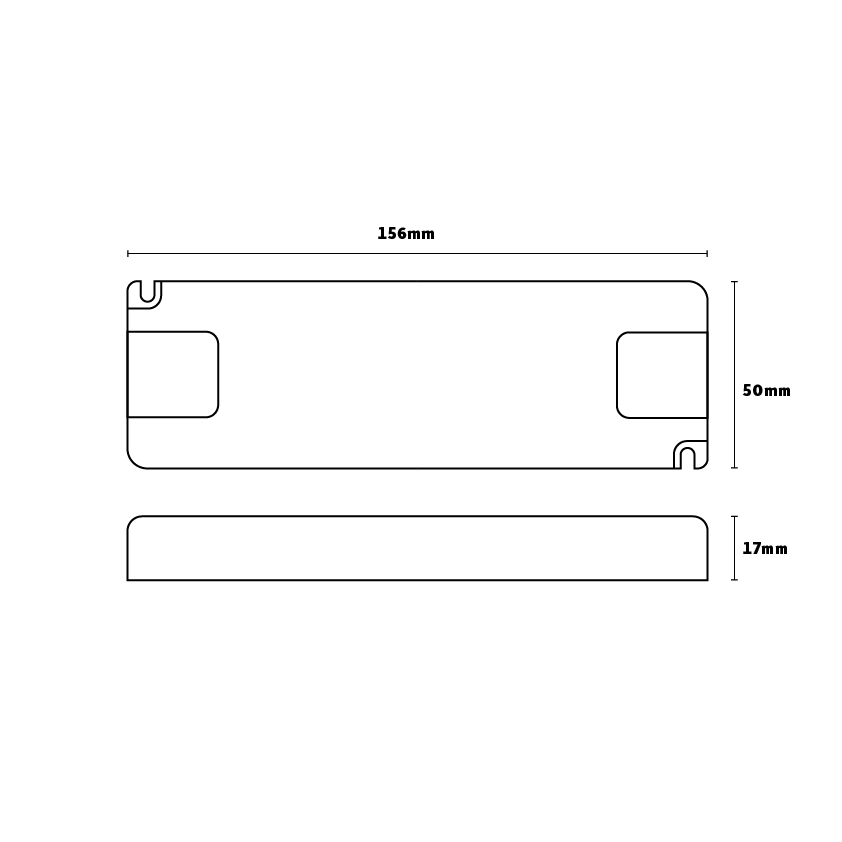

Compact and lightweight at just 156mm x 50mm x 17mm and 150g, this driver is easy to fit into cabinets, profiles, or electrical enclosures. With a power factor of >0.9 and an input frequency of 47–63Hz, it offers efficient, dependable operation. The unit delivers 1.25A at 24V DC and features an inrush current of 60A/230V.
Rated IP20, it is suitable for indoor use in dry environments. Operating between -20°C and 50°C, it performs reliably even in challenging conditions. Please note: this model is non-dimmable, making it ideal for standard on/off applications where simple control is required.
Tested for safety and designed for professional use, the driver comes with a full 5-year warranty for peace of mind.
Whether you’re powering residential lighting, commercial installs, or retail displays, this 130W constant voltage driver delivers the stability and performance needed for long-lasting LED lighting systems.
