4 Chanel – 4 x 5A – DMX 512 – LED Decoder (Din Rail)
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DMX-DIN |
| Protocol | DMX |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1-4 |
| Input Voltage | 12-36V DC |
| Input Current | 20A |
| Output Voltage | 12-36V DC |
| Output Current | 4 x 5A/CH |
| Output Wattage | 240W -12v / 480W – 24v |
| Signal | DMX512 |
| Dimming Range | 0 -100% |
| Dimensions | L120 x W78 x H55mm |
| Weight | 0.162kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015/ EN IEC 61547 |
| Safety standard(LVD) | EN 61347-1/-2 EN 62493 |
| Certification | CE, RoHs |
| Compatible Products | CT-CCT-4-B / CT-CCT-4-W CT-DIM-4-B / CT-DIM-4-W CT-RGBW-4-W / CT-RGBW-4-B CT-DMX-BS |
4 Chanel – 4 x 5A – DMX 512 – LED Decoder ( Din Rail )
Designed for professional lighting installations, this commercial-grade 4 Channel DMX512 LED Decoder provides reliable control for a wide range of LED lighting systems. Supporting single colour, tunable white (CCT), RGB and RGBW LEDs, it offers flexible integration into commercial, retail, hospitality and architectural projects.
Operating on 12–36V DC, the decoder delivers up to 5A per channel across four channels, with a maximum output of 480W at 24V. Smooth 0–100% dimming ensures precise lighting control, while the DMX512 protocol provides stable communication across larger lighting networks.

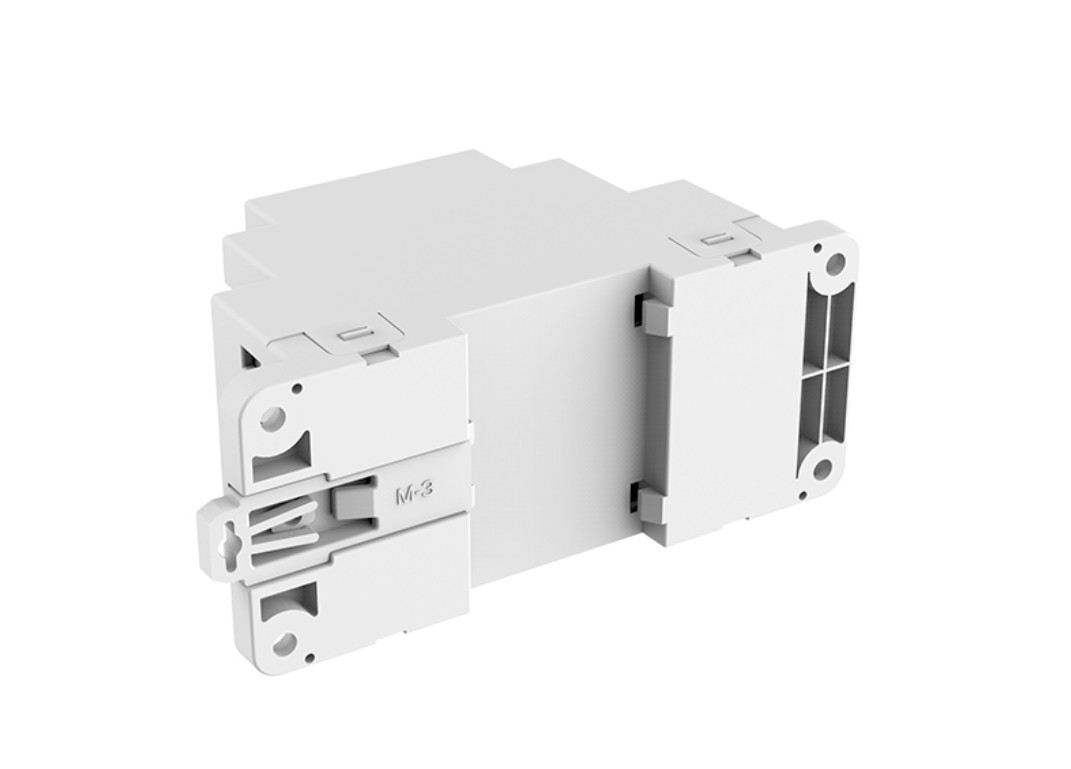

The compact DIN rail design allows for quick installation within control panels and electrical enclosures, helping to keep projects neat and organised. Built to meet CE and RoHS requirements, it also complies with recognised EMC and safety standards for dependable long-term performance.
Compatible with a range of wall controllers and DMX control products, this decoder is backed by a comprehensive 5-year warranty for added peace of mind.
