4 Chanel – 4 x 5A – DMX 512 – LED Decoder (16-Bit)
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DMX16-4 |
| Protocol | DMX |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1-4 |
| Input Voltage | 12-36V DC |
| Input Current | 20A |
| Output Voltage | 12-36V DC |
| Output Current | 4 x 5A/CH |
| Output Wattage | 240W -12v / 480W – 24v |
| Signal | DMX512 |
| Dimming Range | 0 -100% |

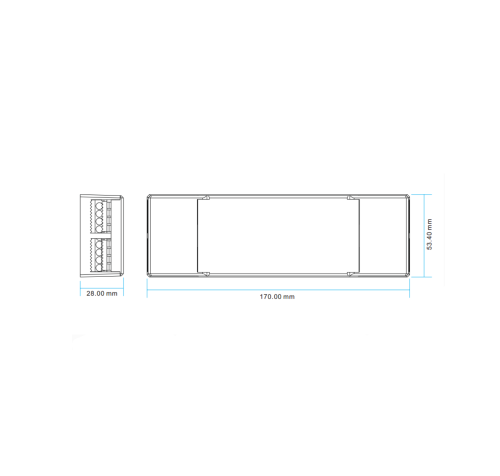

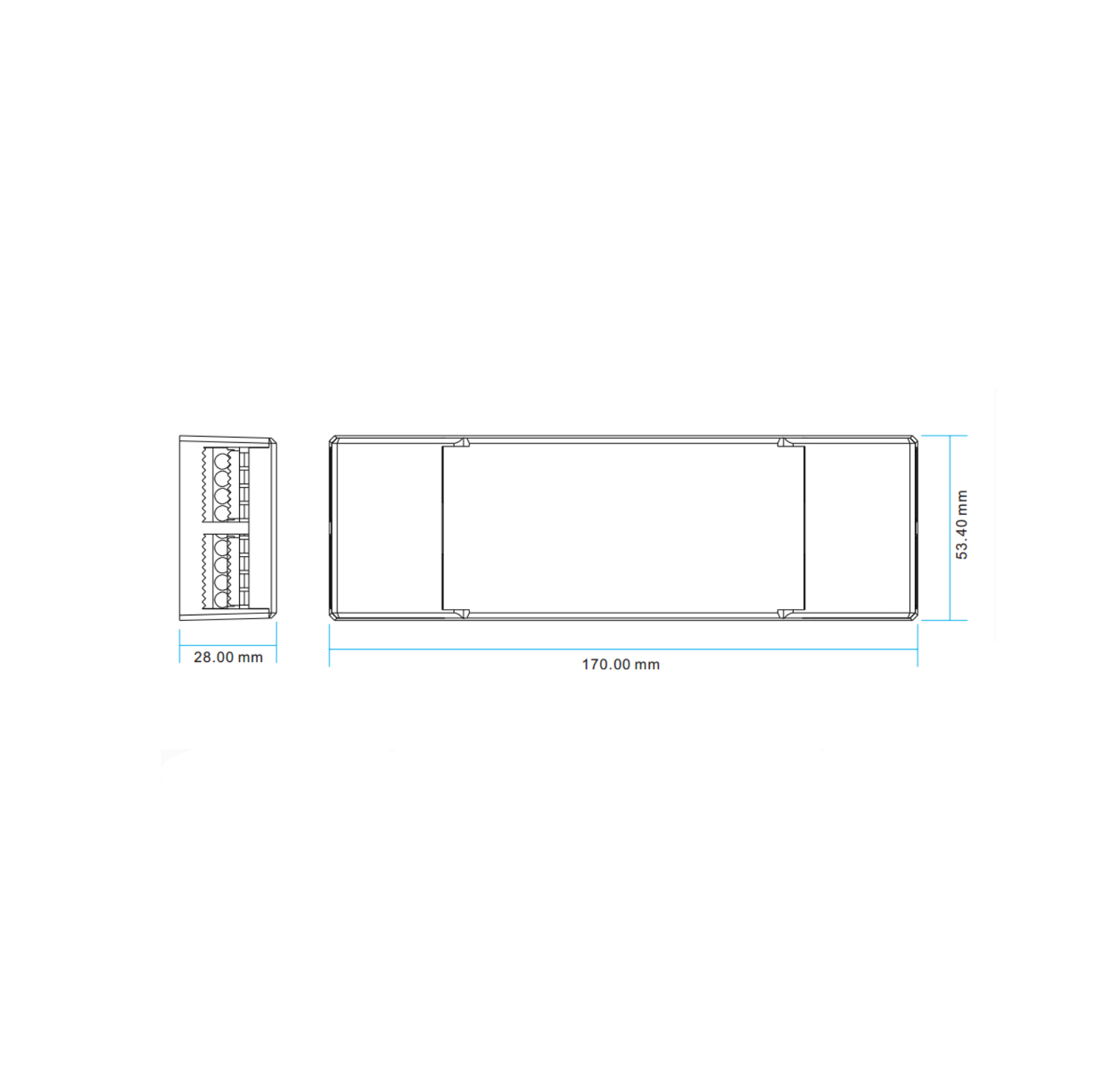

| Dimensions | L170 x W53 x H28mm |
| Weight | 0.172kg |
| Warranty | 5 Years |
| Certification | CE, RoHs |
| Compatible Products |
The RC-DMX-16-4 is a professional-grade controller designed for advanced LED lighting systems. Supporting both DMX decoder and standalone master modes, it delivers precise and flexible control for a wide range of lighting projects.
