4 Chanel – 4 x 5A – DMX 512 – LED Decoder
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DMX-4 |
| Protocol | DMX |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1-4 |
| Input Voltage | 12-24V DC |
| Input Current | 16A |
| Output Voltage | 12-24V DC |
| Output Current | 4 x 4A/CH |
| Output Wattage | 192W -12v / 384W – 24v |
| Signal | DMX512 |
| Dimming Range | 0 -100% |

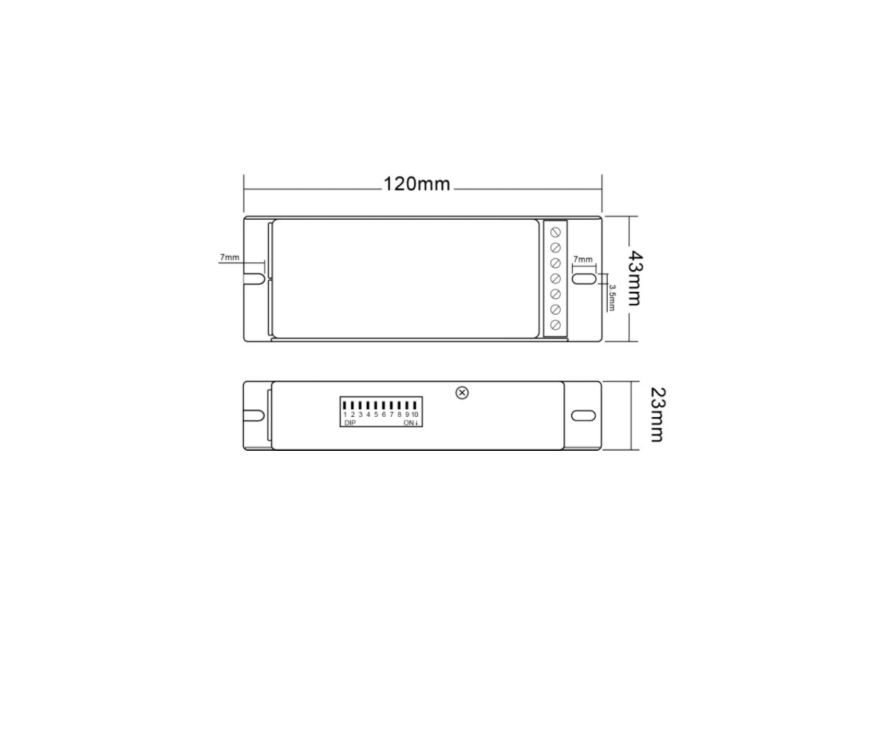

| Dimensions | L120 x W42 x H27mm |
| Weight | 0.135kg |
| Warranty | 5 Years |
| Certification | CE, RoHS |
| Compatible Products | CT-CCT-4-B / CT-CCT-4-W CT-DIM-4-B / CT-DIM-4-W CT-RGBW-4-W / CT-RGBW-4-B CT-DMX-BS |
The RC-DMX-4 is a compact DMX/RDM LED decoder and driver that supports both 3-channel and 4-channel constant voltage outputs, making it ideal for RGB and RGBW LED strip control. Fully compliant with DMX512/1990 and RDM/2009 protocols, it ensures reliable communication and flexible integration into professional lighting systems.

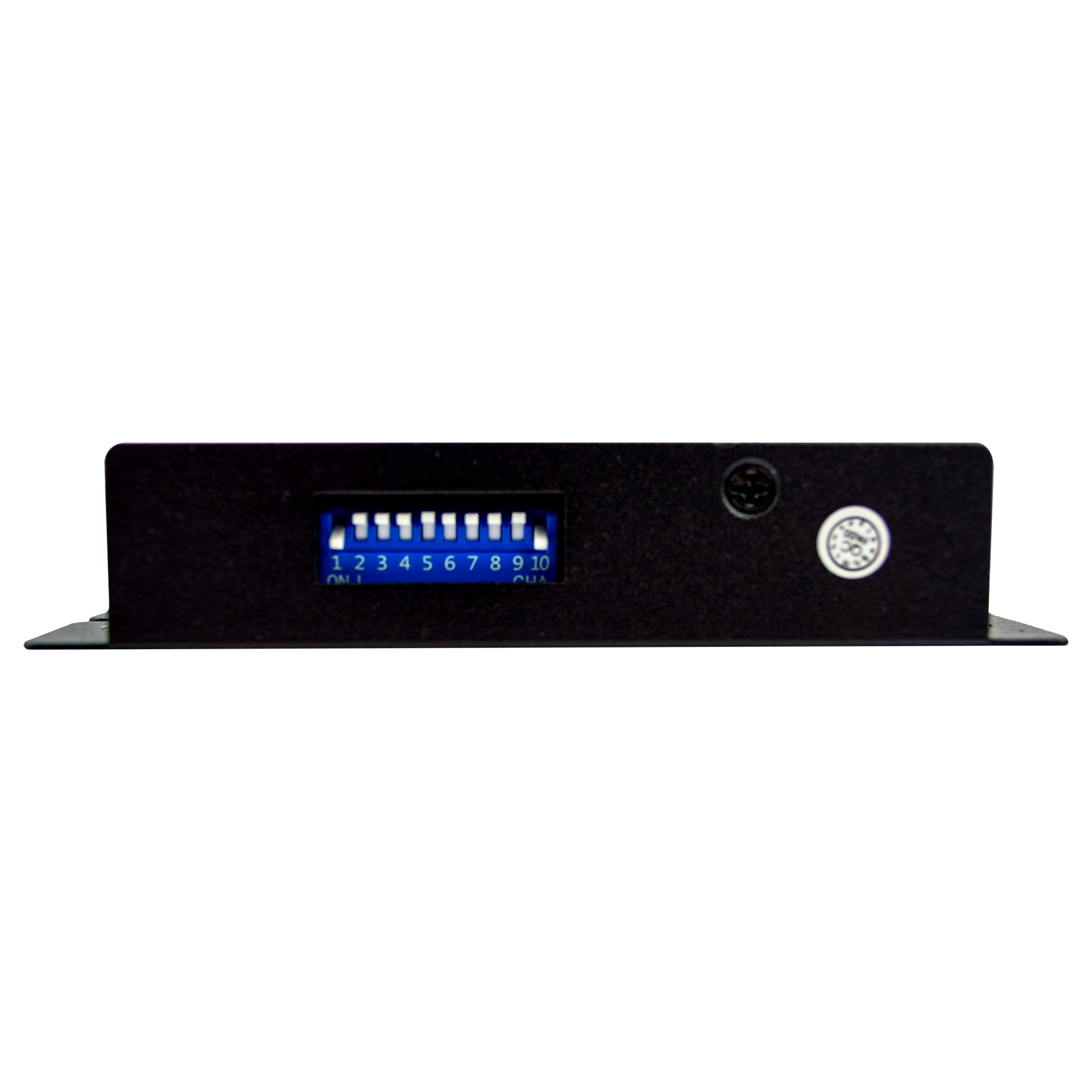

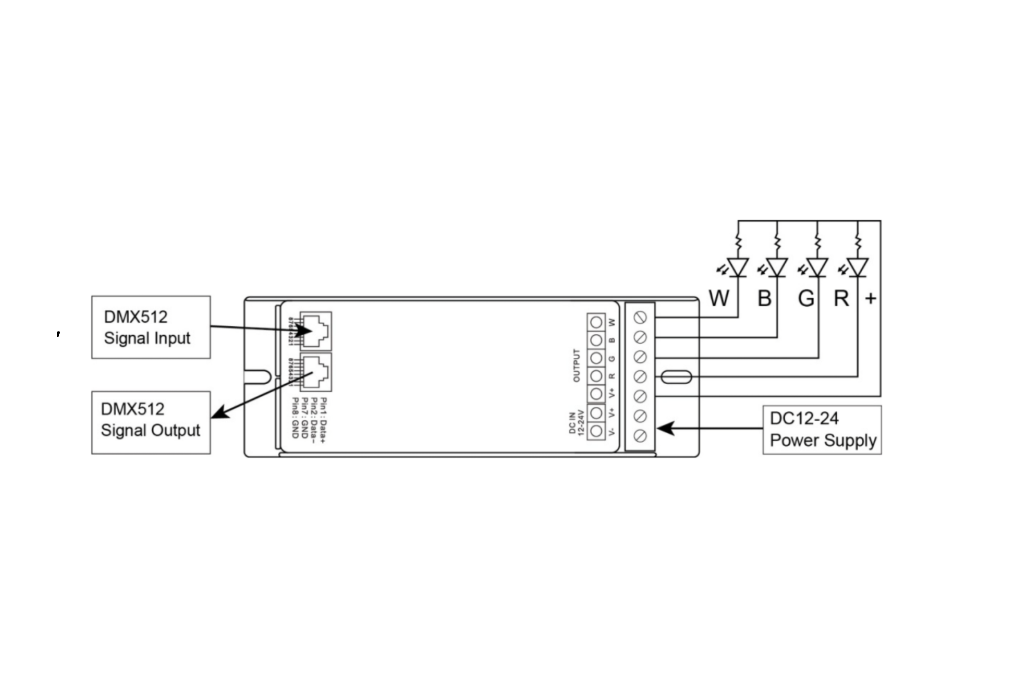

With RJ45 DMX in/out ports, manual or RDM-based address setting, and DIP switch channel selection, the PX24500SCC7 provides versatile setup options. Each channel supports up to 5A (3CH mode) or 4A (4CH mode), delivering up to 384W output at 24V. Compact, efficient, and easy to install, it’s a perfect solution for architectural, stage, and commercial lighting projects.
