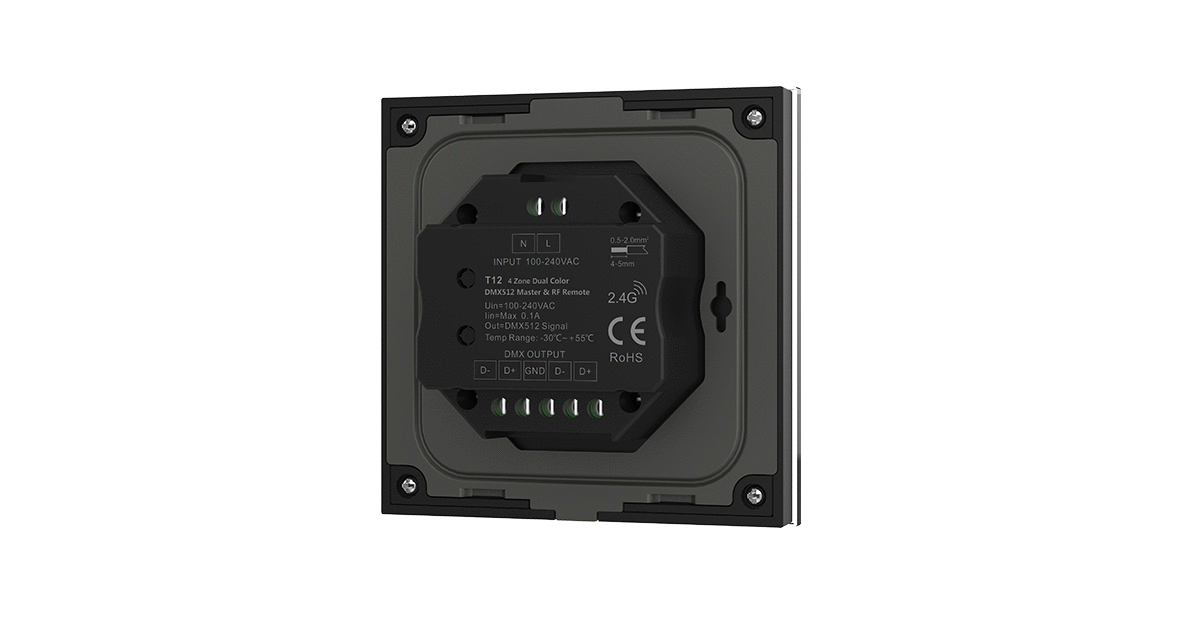

4 Zone – Wireless RF & DMX – Single Colour – Wall Plate Controller (Black)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-DIM-4-B |
| Protocol | RF & DMX |
| Compatible LED | White & Single Colour |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 100-240V AC |
| Input Current | 0.1A |
| Signal | DMX512 / RF 2.4GHz |
| Control Distance | 10m (RF) |
| Dimming Range | 0 -100% |
| Dimensions | L112 x W112 x H50mm |
| Weight | 0.234kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, EMC, RED |
| Compatible Products | RC-WIFI-RGB-5 RC-WIFI-RW-1 RC-DMX-8 |

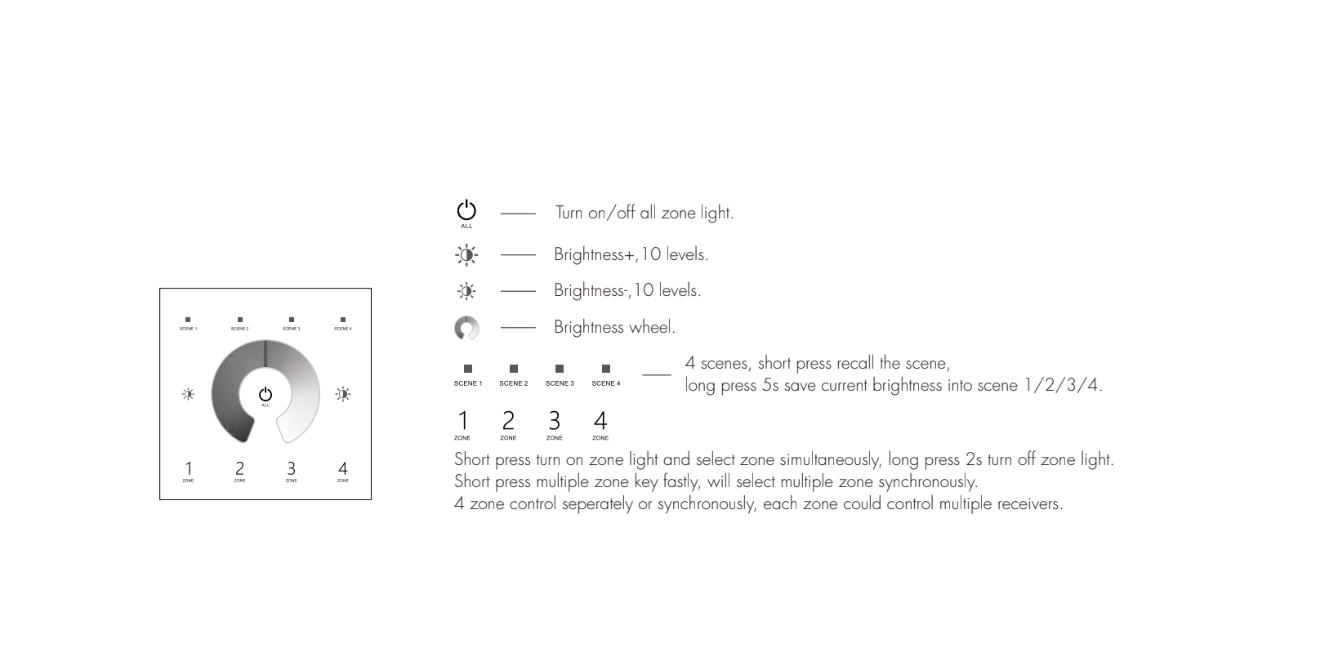

4 Zone LED dimmer uses a wireless signal to dim and raise lighting levels. The wall unit is a 4 Zone controller with an attractive white-glass finish. Each rocker-switch-style control can be linked to a separate lighting area, which can be dimmed independently or synchronised together – touch to turn on/off, and press up or down to adjust brightness. This wireless LED dimmer will require an LED receiver for each zone.
Nothing Found
How To Use the 4 Zone Single Colour LED Wall Plate Controller | Features & Functions
How to Pair 4 Zone Single Colour LED Wall Plate Controller
How to Unpair/Reset 4 Zone Single Colour LED Wall Plate Controller
