4 Zone – Wireless RF – Single Colour – Wall Plate (Battery)
Commercial Grade LED Controller
Full Specification
| Product Code | CT-WALL-4-DIM-BAT |
| Protocol | RF |
| Compatible LED | White & Single Colour |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 3VDC(CR2032) |
| Input Current | <8mA |
| Signal | RF / 2.4GHz |
| Control Distance | 30m (RF) |
| Dimming Range | 0 -100% |

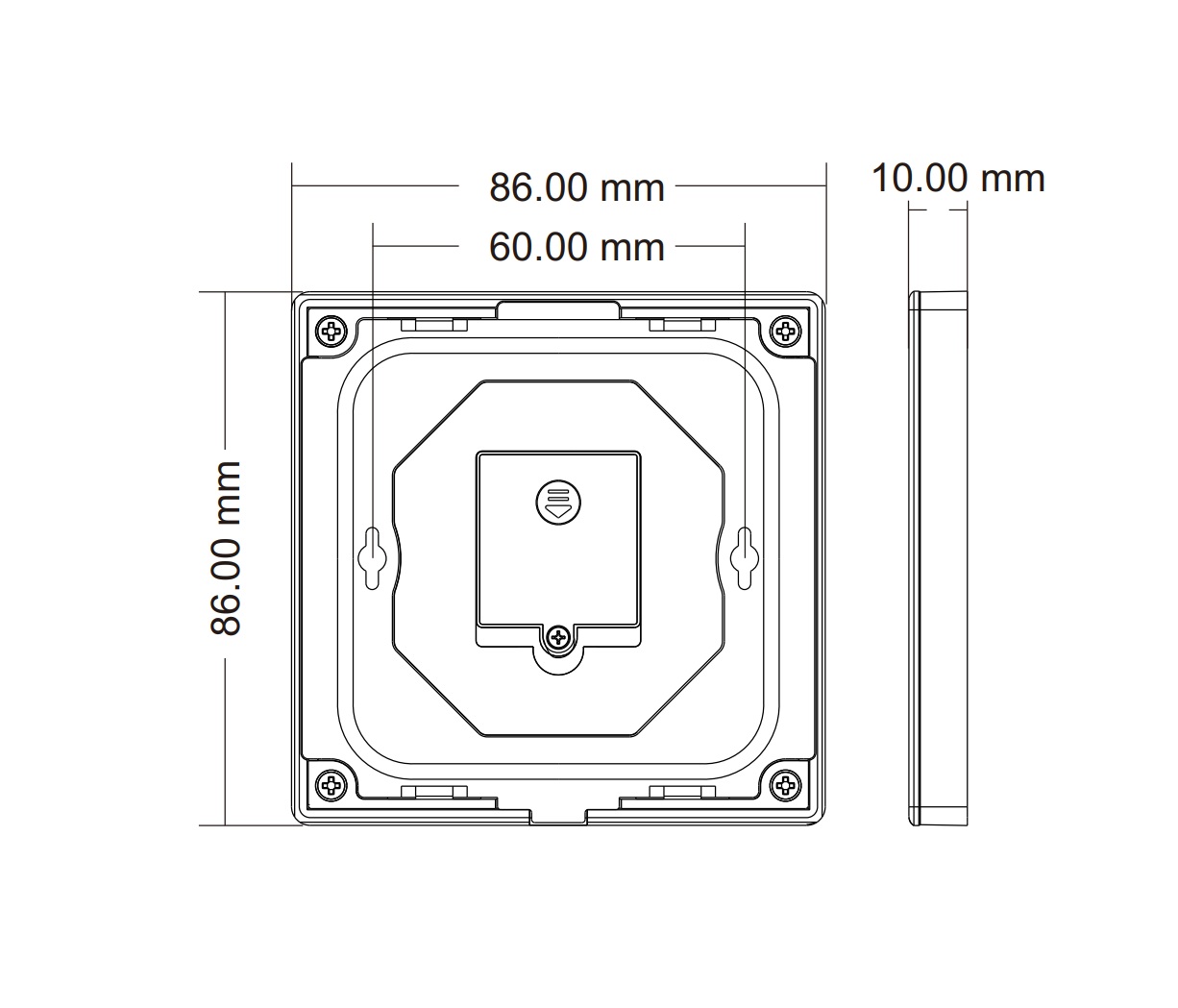

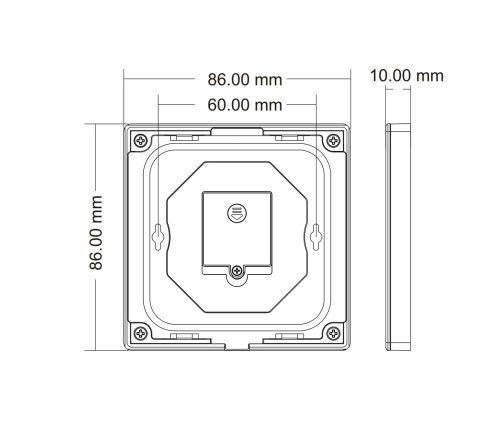

| Dimensions | L86 x W868 x H10mm |
| Weight | 0.137kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN 61347-1/-2 EN 62493 |
| Safety standard(LVD) | EN IEC 55015 EN IEC 61547 ETSI EN 301 489-1/-3 |
| Radio Equipment(RED) | ETSI EN 300 440 |
| Certification | CE RoHS FCC |
| Compatible Products | RC-WIFI-RGB-5 RC-WIFI-RW-1 RC-DMX-8 |
4 Zone Wireless Single Colour LED Wall Plate (Battery Powered)
This 4 Zone Wireless Wall Plate gives you easy, flexible control of single colour LED lighting across multiple areas. Using RF 2.4GHz technology, it provides a wireless control distance of up to 30m, making it a reliable option for both home and commercial installations.

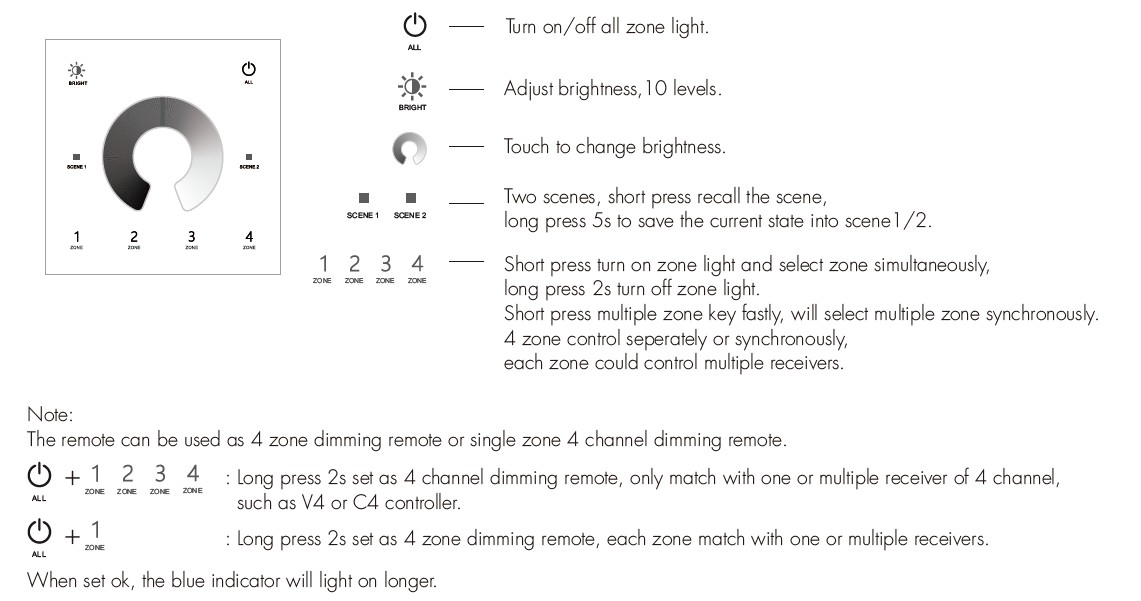

The wall plate allows smooth 0–100% dimming, so you can adjust brightness to suit any environment. With four independent zones, you can manage separate rooms or lighting areas individually, all from one sleek and compact controller.

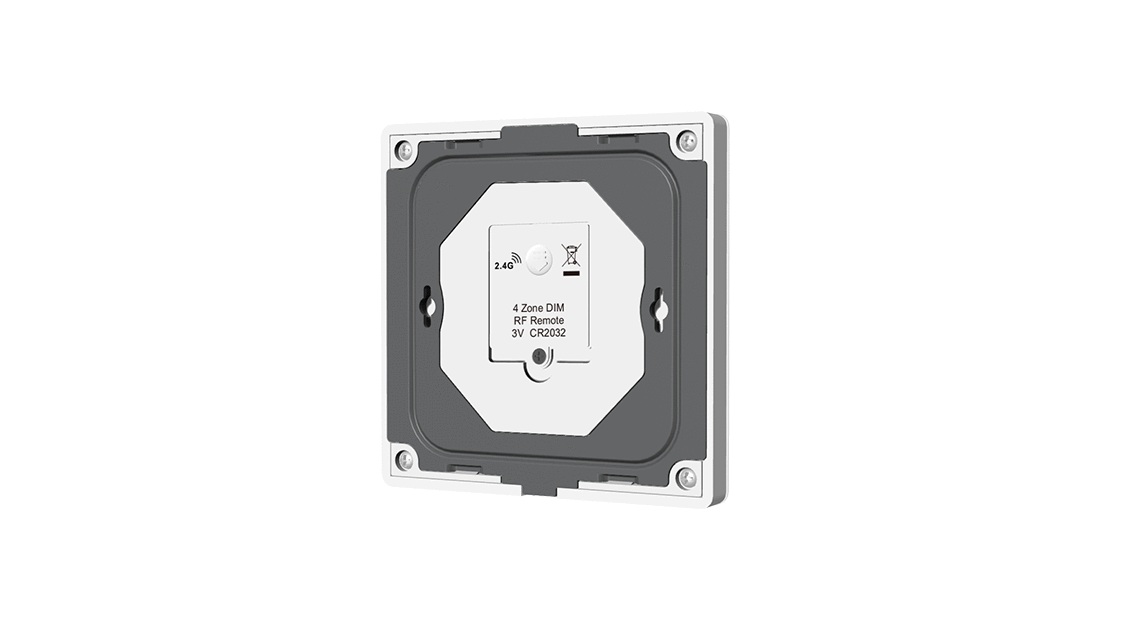

Powered by a CR2032 battery, the wall plate installs quickly without wiring, making it ideal for retrofits or locations where running cables is difficult. At just 86mm x 86mm x 10mm and 0.137kg, it’s slim, discreet, and modern in design.
Certified to CE, RoHS, and FCC standards and backed by a 5-year warranty, this controller offers professional-grade reliability and convenience for single colour LED lighting control.
