5 Channel – 5 x 4A – Zigbee & Wireless RF LED Receiver (Hue App)
Commercial Grade LED Receiver
Full Specification
| Product Code | RC-ZB-RGB-5 |
| Protocol | Zigbee |
| Compatible LED | White & Single Colour Colour Changing (RGB/W) Tunable White (CCT) |
| Product Type | Receiver |
| Zones (channels) | 1 |
| Input Voltage | 12-24V DC |
| Input Current | 20.5A |
| Output Voltage | 12/24V DC |
| Output Current | 4 x 4A/CH (20A) |
| Output Wattage | 192W -12v / 384W – 24v |
| Signal | ZigBee 3.0 |
| Control Distance | 30m |
| Dimming Range | 0 -100% |

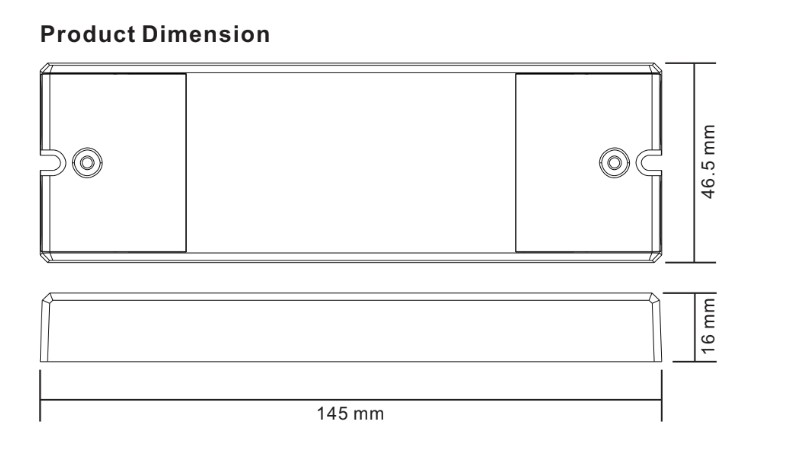

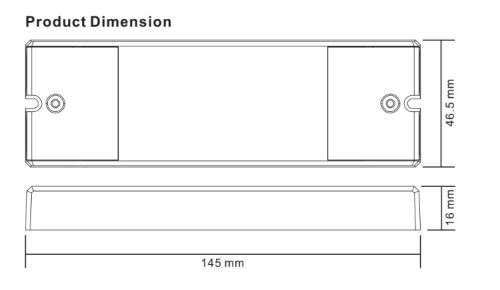

| Dimensions | L145 x W46.5 x H16mm |
| Weight | 0.072kg |
| Warranty | 5 Years |
| Certification | CE, RoHs |
| Compatible Products | CT-ZB-DIM-4 CT-ZB-CCT-4 CT-ZB-WALL-4 RM-ZB-REM-3 |
5 Channel Zigbee & RF Wireless LED Receiver | Hue App Compatible
This 5 Channel Zigbee & RF Wireless LED Receiver provides smart, reliable control for a range of LED lighting types, including single colour, tunable white (CCT), and RGB/W colour-changing setups. Fully compatible with Amazon Alexa, Google Home, Philips Hue apps and other Zigbee 3.0 platforms, it allows seamless integration into modern smart home systems.
Each of the five channels delivers 4A output (20A total), supporting up to 192W at 12V or 384W at 24V. It offers smooth 0–100% dimming, allowing precise brightness and colour adjustment for every lighting zone.
Operating via Zigbee and RF 2.4GHz, it provides stable wireless performance with a 30m control distance. Compact at 145mm x 46.5mm x 16mm and weighing just 0.072kg, it’s easy to install discreetly.
Certified to CE and RoHS standards and backed with a 5-year warranty, this receiver delivers professional-grade, flexible control for smart and wireless LED lighting systems.
