Casambi & RF SPI LED Controller
Commercial Grade LED Controller
Full Specification
| Product Code | RC-PIXEL-CASAMBI |
| Protocol | CASAMBI / Pixel (SPI) |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Receiver |
| Zones (channels) | 1 |
| Input Voltage | 5-24VDC |
| Input Current | 6A |
| Output Voltage | 5-24V DC |
| Output Current | 6A |
| Output Wattage | 30W – 5v / 144W – 24v |
| Signal | CASAMBI / Pixel (SPI) |
| Dimming Range | 0 -100% |

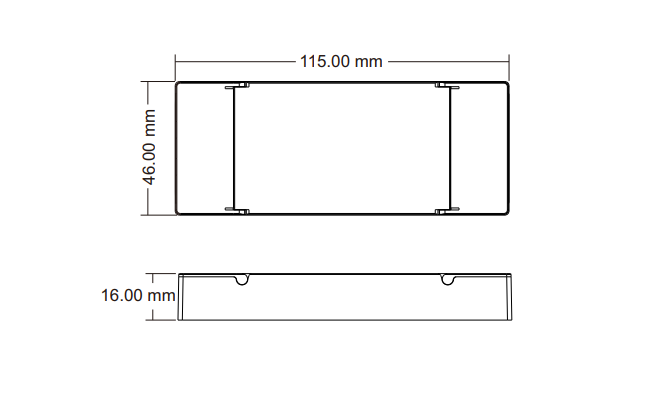

| Dimensions | L115 x W46 x H16mm |
| Weight | 0.0685kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015/ EN IEC 61547 ETSI EN 301 489-1/-3/-17 |
| Safety standard(LVD) | EN 61347-1/-2 |
| Radio Equipment(RED) | ETSI EN 300 440 ETSI EN 300 328 |
| Certification | CE, RoHs |
| Compatible Products | PIXEL-RM-CCT / PIXEL-RM-DIM PIXEL-RM-RGBW / PIXEL-WALL-CCT PIXEL-WALL-DIM / PIXEL-WALL-RGBW |
Casambi & RF SPI LED Controller – Commercial Grade Pixel Receiver
Unlock advanced control for pixel LED lighting with this commercial-grade Casambi & RF SPI LED Controller. Designed for professional installations, it combines Casambi wireless technology with SPI pixel control, making it ideal for dynamic lighting effects in retail, hospitality, entertainment and architectural applications.
Compatible with single colour, tunable white (CCT), RGB and RGBW pixel LED products, the controller provides smooth 0–100% dimming and seamless wireless operation through the Casambi app or compatible RF wall controllers and remotes. It supports input and output voltages from 5–24V DC, delivering up to 6A of output with a maximum load of 144W at 24V.
Its compact design allows for discreet installation, while compliance with CE, RoHS, EMC, LVD and RED standards ensures dependable performance in demanding commercial environments. Compatible with a range of Pixel remote controls and wall panels, this controller offers a flexible solution for creating custom lighting scenes and animated pixel effects.
Backed by a comprehensive 5-year warranty for complete peace of mind.
