CCT – SPI – Pixel – LED Remote Controller
Commercial Grade LED Remote Controller
Full Specification
| Product Code | PIXEL-RM-CCT |
| Protocol | Pixel (SPI) |
| Compatible LED | Tunable White (CCT) |
| Product Type | Remote Control |
| Zones (channels) | 1 |
| Input Voltage | 3VDC (CR2032) |
| Signal | RF 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |
| Dimensions | L56 x W78 x H20mm |
| Weight | 0.040kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products | PIXEL-CONTROL |
CCT, Pixel (SPI) LED Remote Controller

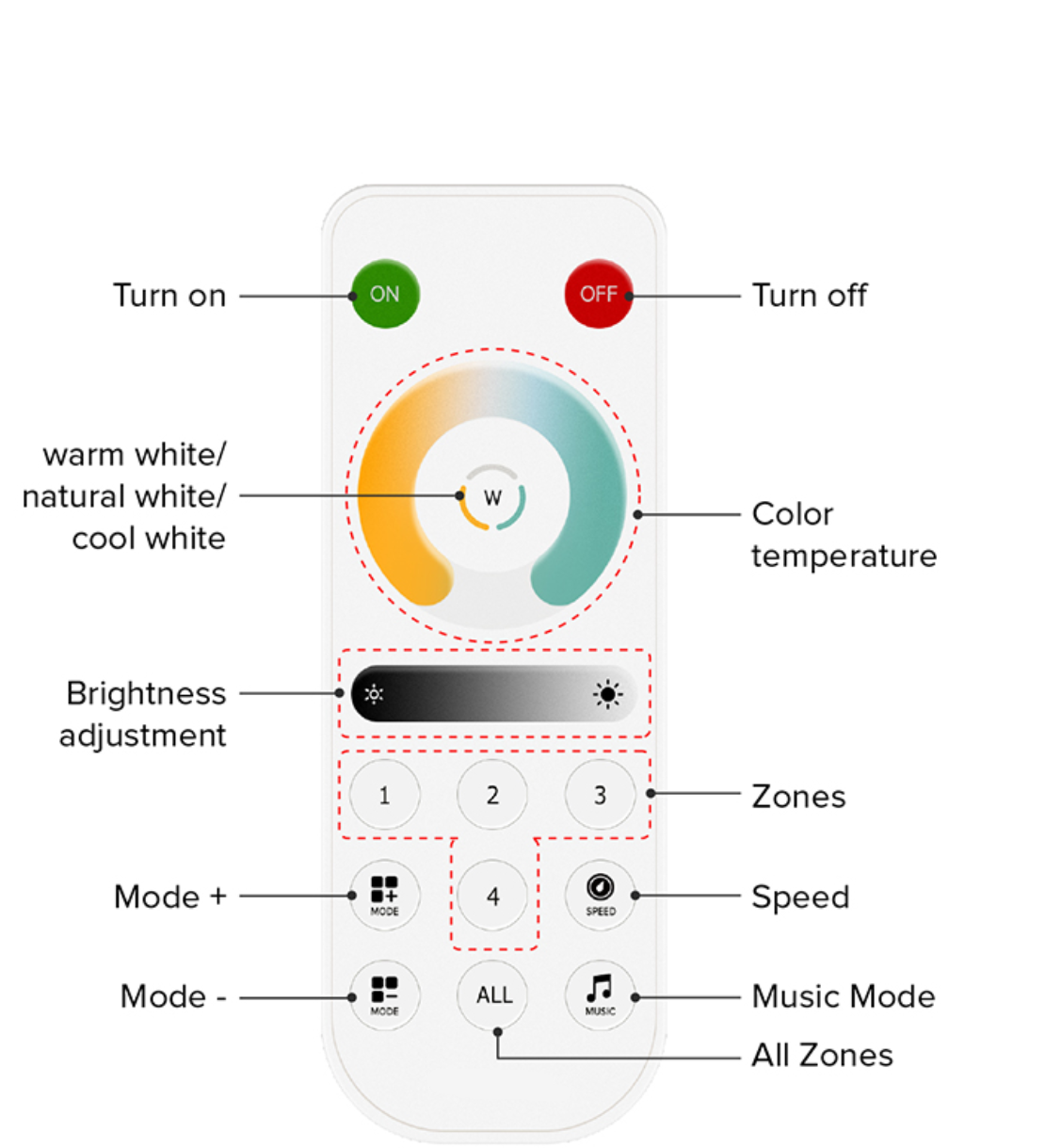

The PIXEL-RM-CCT is a stylish RF touch panel remote designed for CCT tunable white LED lighting. With support for up to 4 zones, it gives users full control of brightness (1–100%) and colour temperature (warm to cool white) using intuitive touch rings.
Featuring easy zone selection, music mode, and fast RF pairing/unpairing, the RB2 is ideal for both residential and commercial projects requiring flexible and modern control of tunable white lighting. Its sleek wall-mounted design ensures it blends seamlessly into contemporary interiors while offering reliable 2.4GHz wireless performance.
