CCT – SPI – Pixel – LED Wall Plate Controller
Commercial Grade LED Controller
Full Specification
| Product Code | PIXEL-WALL-CCT |
| Protocol | Pixel (SPI) |
| Compatible LED | Tunable White (CCT) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 3VDC (CR2032) |
| Signal | RF 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |

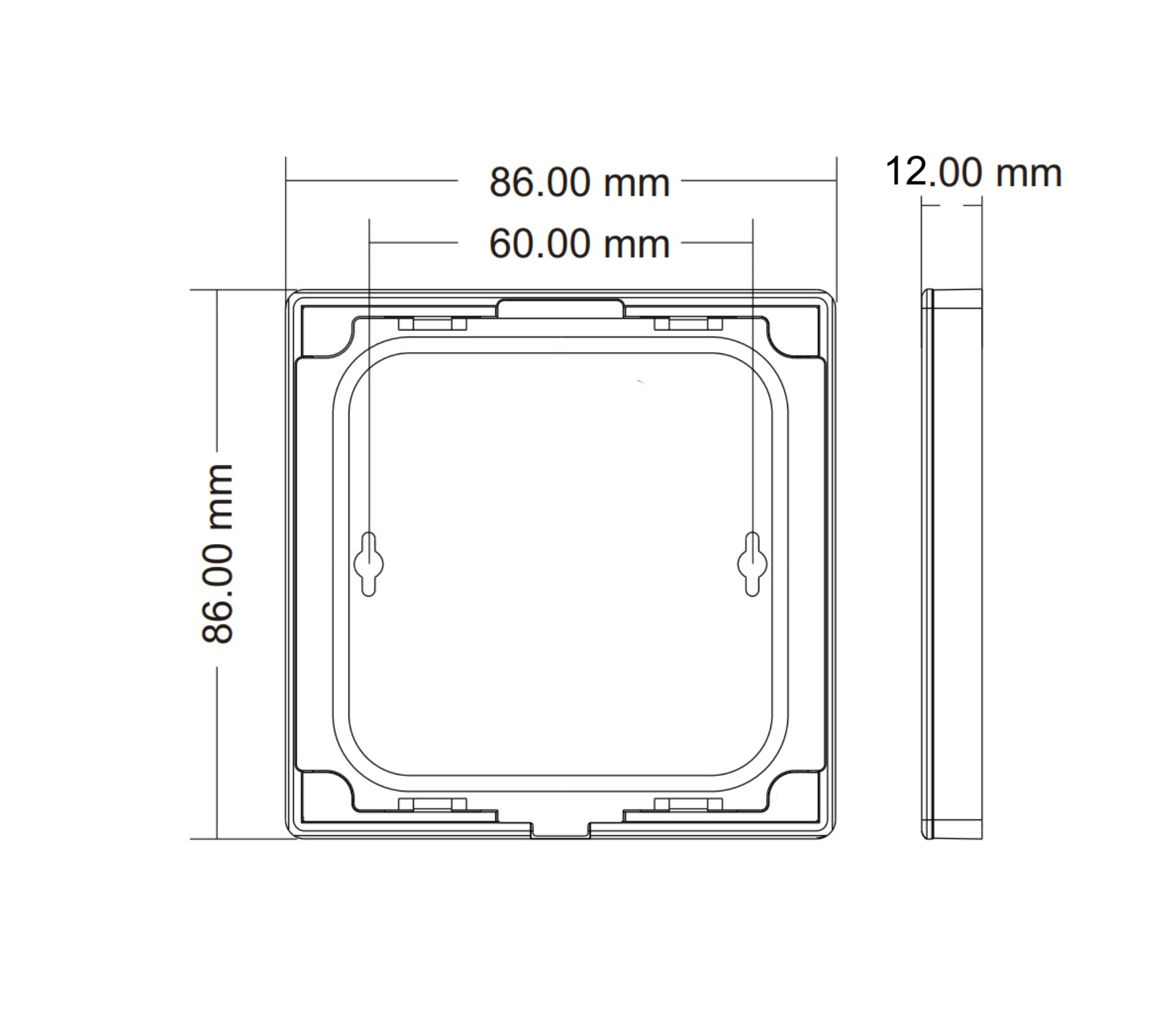

| Dimensions | L86 x W86 x H12mm |
| Weight | 0.064kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products | PIXEL-CONTROL |
CCT SPI Pixel LED wall plate controller with 4-zone control

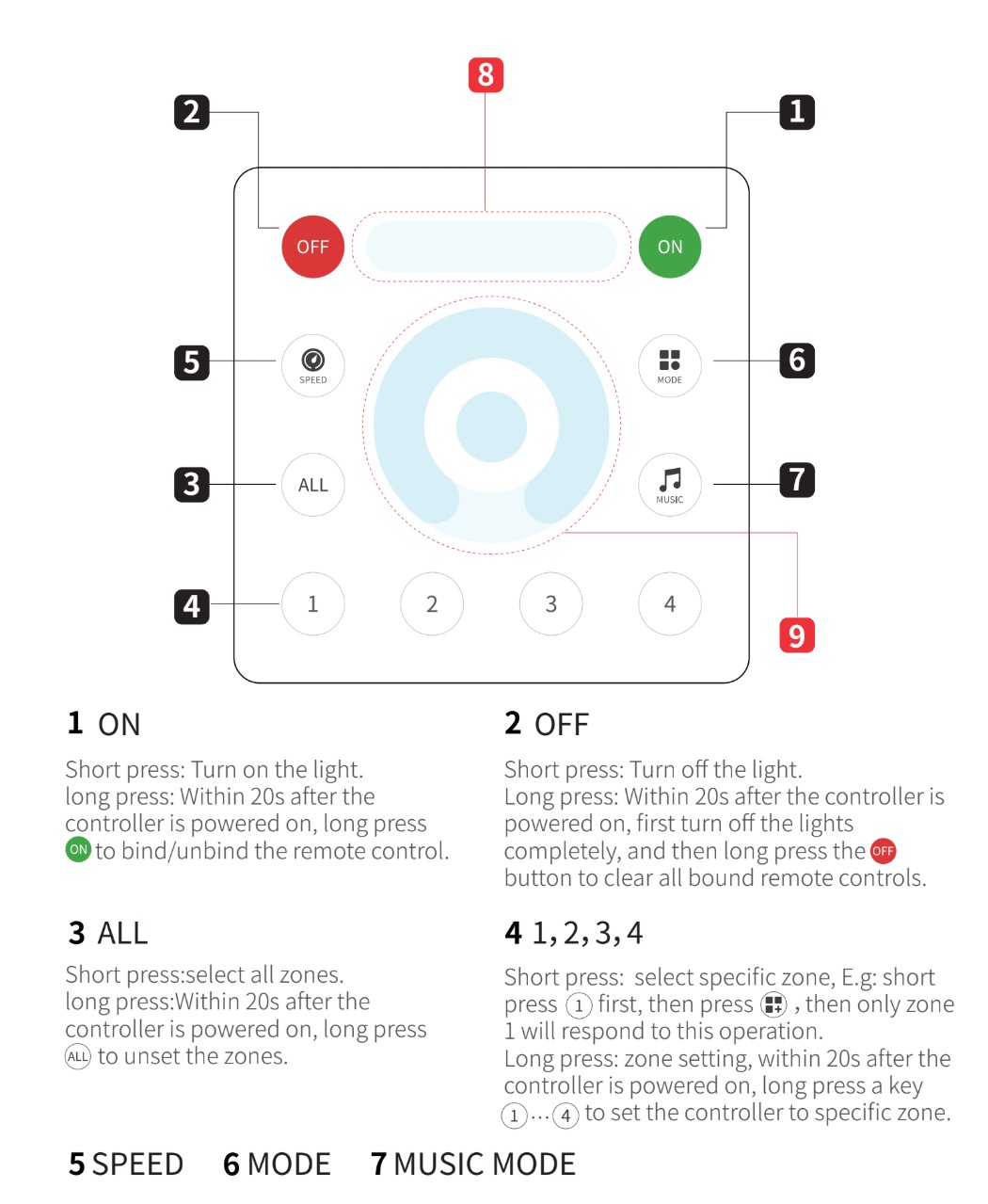

The PIXEL-WALL-CCT is a stylish RF touch panel Wall Controller designed for CCT tunable white LED lighting. With support for up to 4 zones, it gives users full control of brightness (1–100%) and colour temperature (warm to cool white) using intuitive touch rings.
Featuring easy zone selection, music mode, and fast RF pairing/unpairing, the RB2 is ideal for both residential and commercial projects requiring flexible and modern control of tunable white lighting. Its sleek wall-mounted design ensures it blends seamlessly into contemporary interiors while offering reliable 2.4GHz wireless performance.
Nothing Found
Multi-Zone Setup Guide | CCT SPI Pixel LED Wall Plate Controller
How To Remove & Reset Zone Pairing on the CCT SPI Pixel LED Wall Plate Controller
