DMX 512 – Signal Booster
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DMX-BOOST |
| Protocol | DMX |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1 |
| Input Voltage | 12-48V DC |
| Input Current | 0.5A Max |
| Signal | DMX512 |
| Control Distance | 150m |

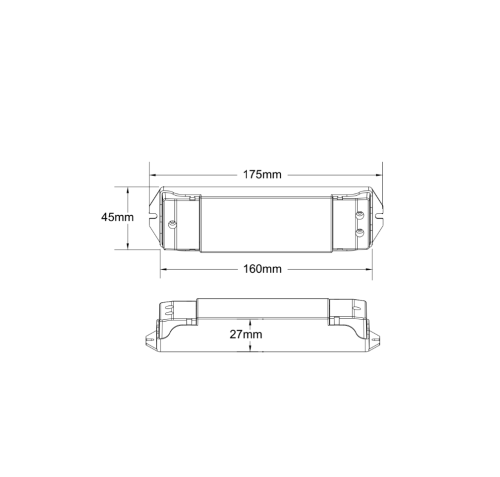

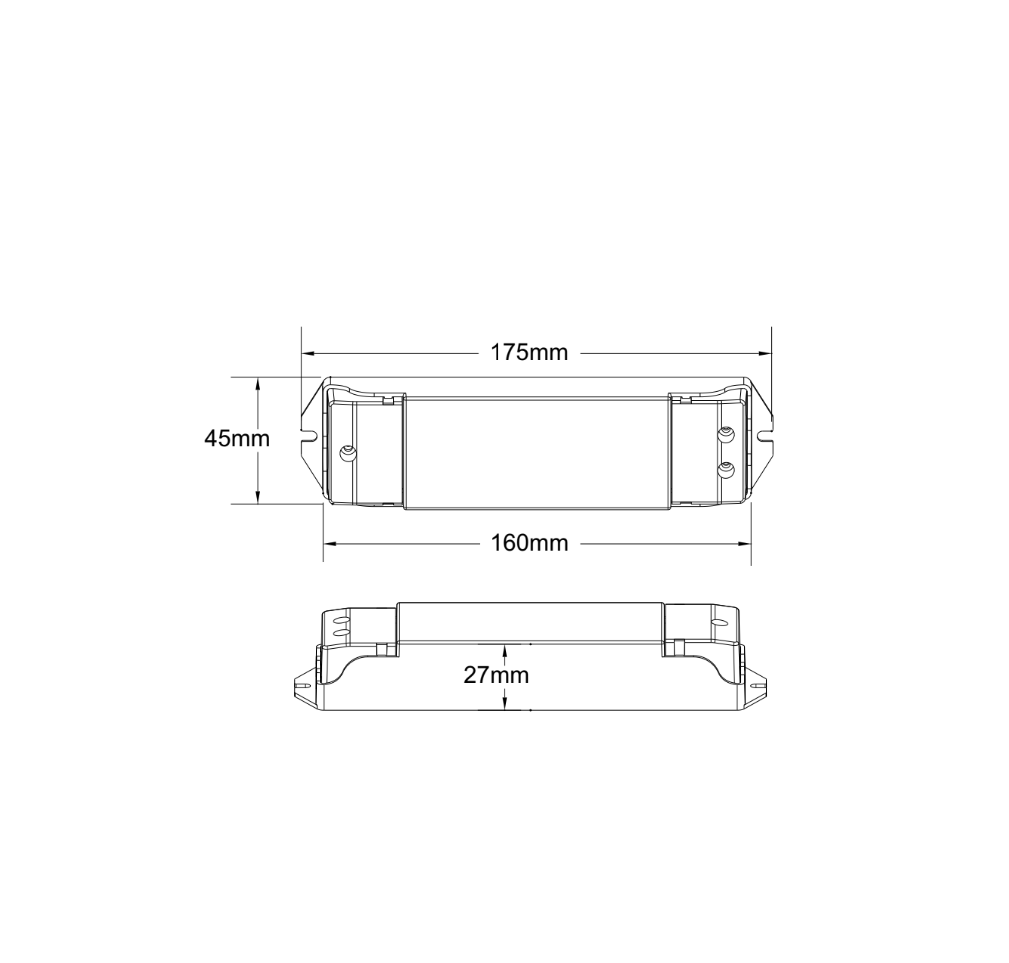

| Dimensions | L178 x W50 x H38mm |
| Weight | 0.125kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 61348-1:2015+A1:2021 EN 61348-2-13:2014+A1:2017 |
| Certification | CE, RoHs, EMC, RED |
| Compatible Products | RC-DMX16-4 RC-DMX-24 RC-DMX-4 RC-DMX-8 |

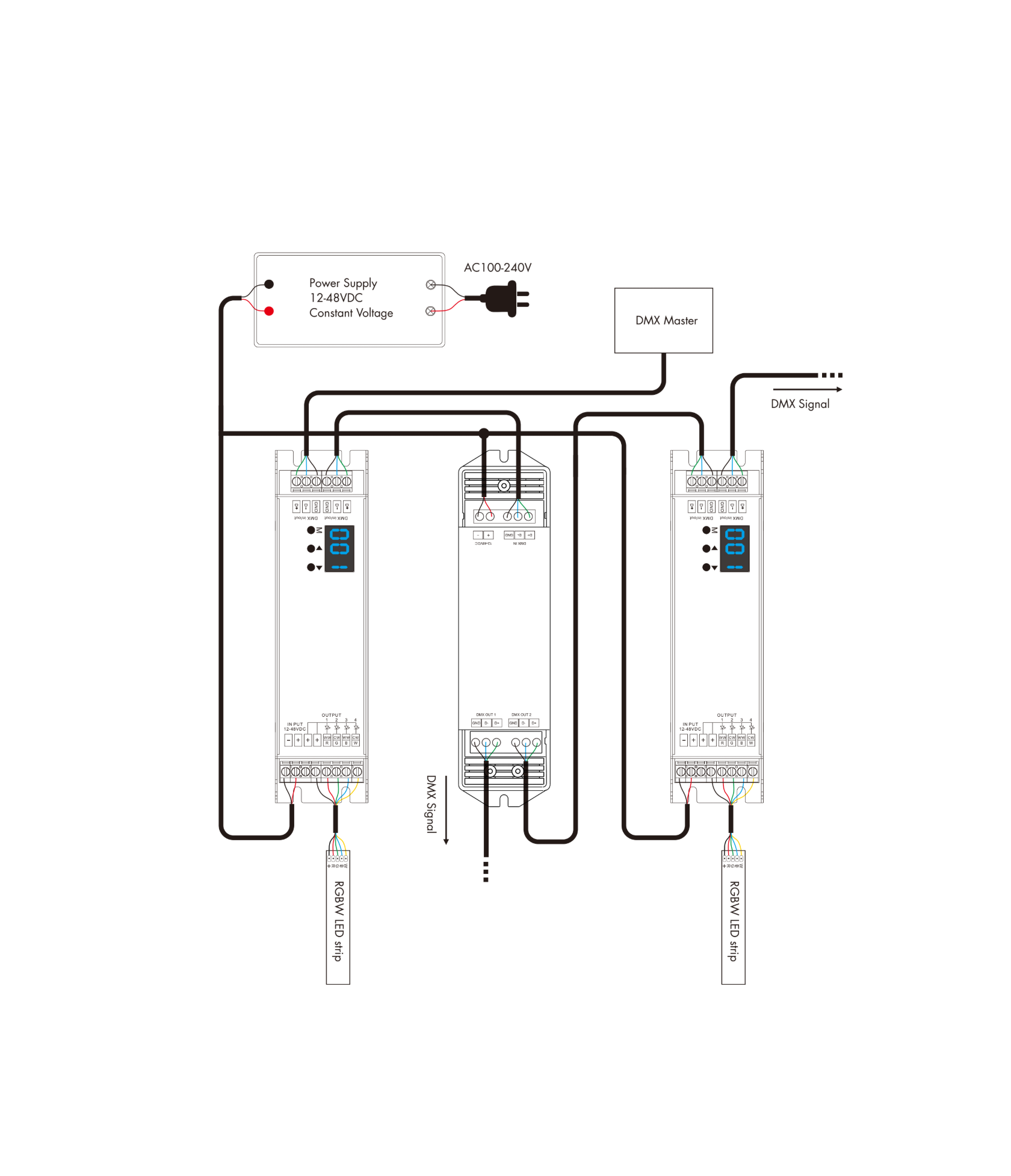

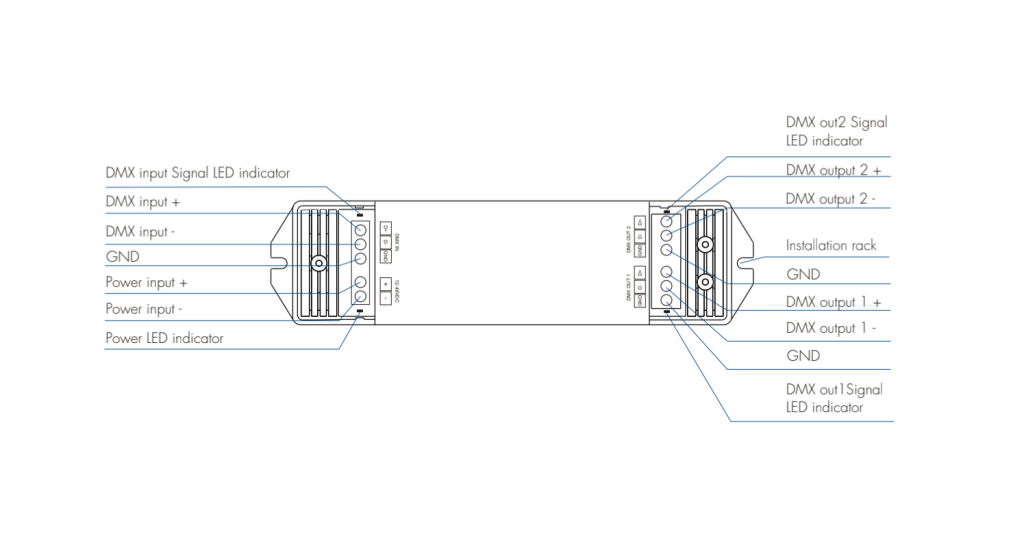

The RC-DMX-BOOST is a compact and reliable DMX512 signal amplifier designed to strengthen, isolate, and distribute DMX signals in professional lighting systems. With one DMX input and two DMX outputs, it ensures stable signal transmission over long distances and across multiple fixtures.
Featuring photoelectric isolation between input and output channels, the DA-L protects sensitive equipment (such as DMX drivers, controllers, and fixtures) from damage caused by wiring errors, interference, or voltage spikes. Compatible with 12–48VDC input, this amplifier is a must-have for large DMX installations that require extended signal runs and robust performance.
