Door – LED Sensor (Single)
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-DOOR |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0 – 80mm |
| Cable Length | 1m |
| Detection Angle | 30° |
| IP Rating | 20 |

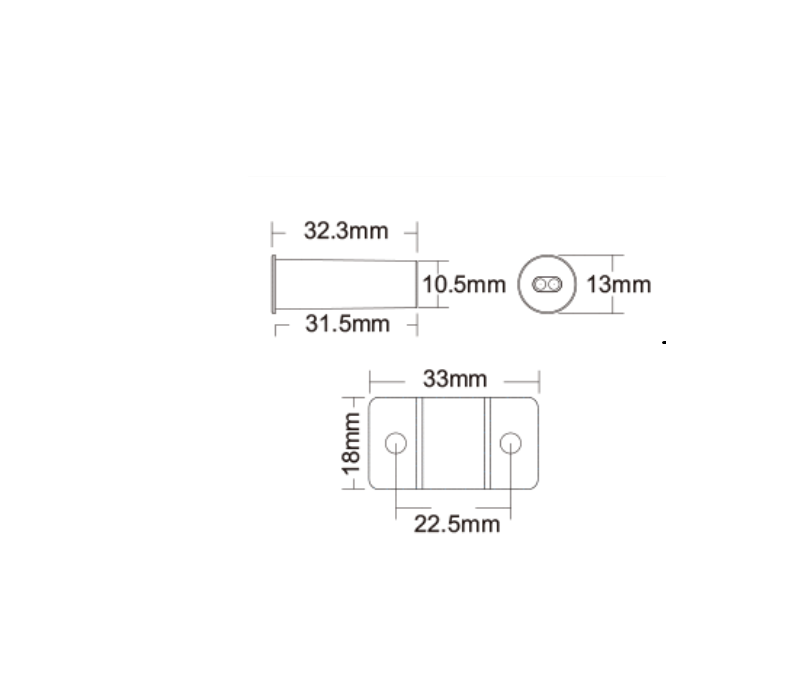

| Hole Cutout Size | 10.5mm |
| Dimensions | L31.5 x W113mm |
| Warranty | 5 Years |
| Certification | CE, RoHS, EMC |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |
The SN-DOOR is a compact, low-voltage door sensor switch designed for smart LED lighting control in cabinets, wardrobes, and furniture applications. Powered by 5VDC, it outputs a 5V level or PWM signal, turning lights on when the door opens and off when the door closes.

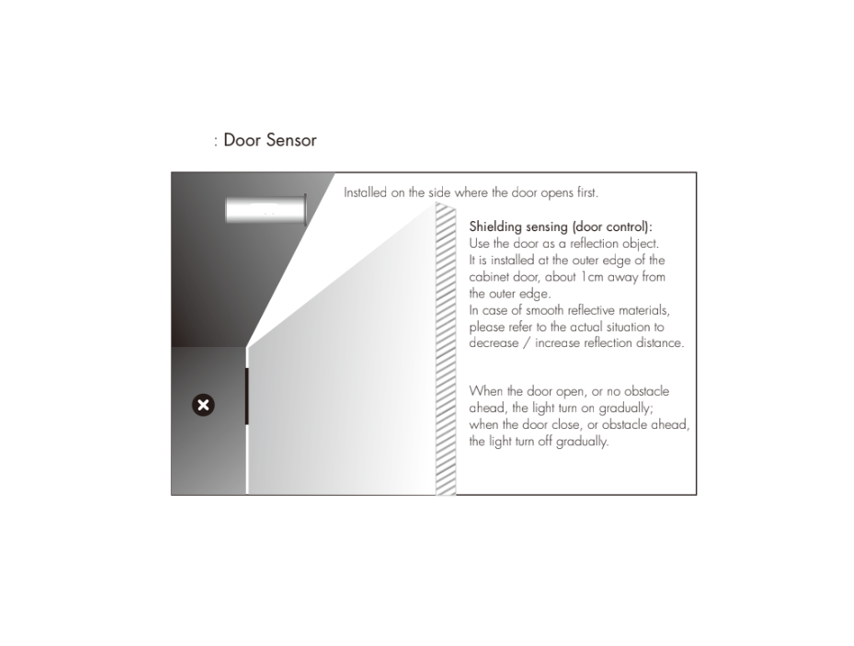

With a ≤8–10cm detection field and 15–30° sensing angle, it ensures a precise response to door movements. The sensor supports both concealed installation (11mm hole) and surface mounting using the included holder, screws, and carabiner — giving flexibility for different furniture designs. Operating at 2000Hz PWM, it delivers flicker-free dimming performance when paired with constant voltage LED drivers and controllers.
