Hand Sweep / Door | LED Remote Controller
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-RM-DOOR |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Input Voltage | 3VDC(CR2450) |
| Input Current | Max. 4mA |
| Signal | RF 2.4GHz |
| Control Distance | 10m |
| Dimming Range | 0-100% |
| Dimensions | L80 x W40 x H30mm |
| Weight | 0.038kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN 62479:2010 ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 61347-1:2015+A1:2021 EN 61347-2-13:2014+A1:2017 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, RED |
| Compatible Products | RC-WIFI-RW-1 |
SN-RM-DOOR – Hand Sweep / Door LED Remote Controller
The SN-RM-DOOR is a 2-in-1 sensor switch and RF remote controller that combines hand sweep and door control functionality for effortless LED lighting control. Powered by a CR2450 battery, this compact wireless device operates over 2.4GHz RF with a 10m control distance, making it ideal for cabinets, closets, wardrobes, and display cases.

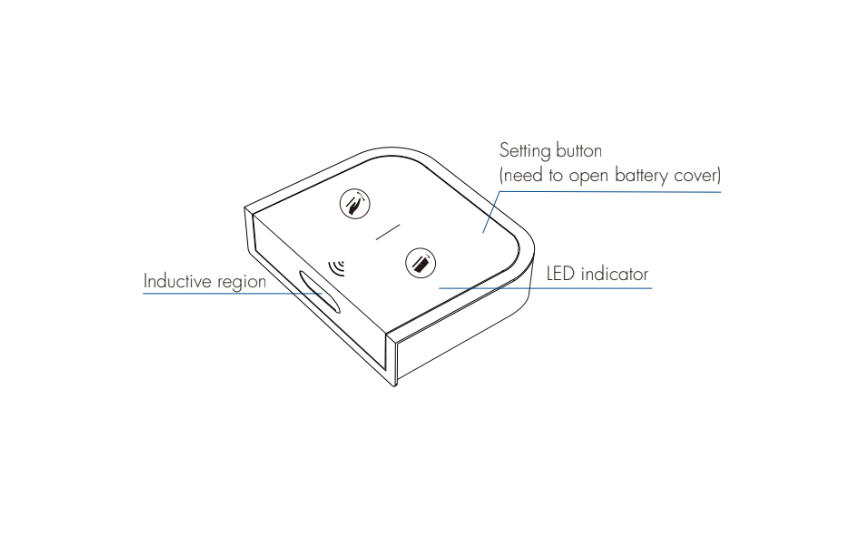

With a simple mode switch button, users can select between hand sweep dimmable, hand sweep non-dimmable, and door control mode. Installation is flexible via screws or adhesive mounting, and an LED indicator provides quick status feedback. Designed for convenience and style, the EF-B is a smart, wireless solution for modern lighting automation.
