Laser – LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-LASER |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0.05 – 2.5m |
| Cable Length | 1m |
| Detection Angle | 10° |
| IP Rating | 20 |
| Hole Cutout Size | 24mm |

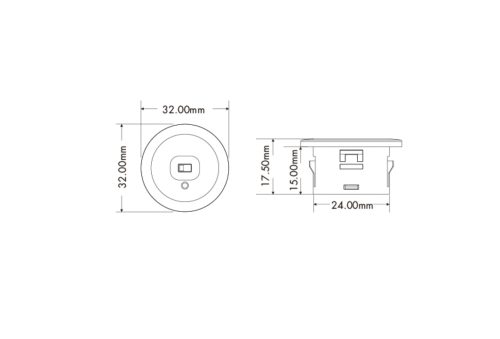

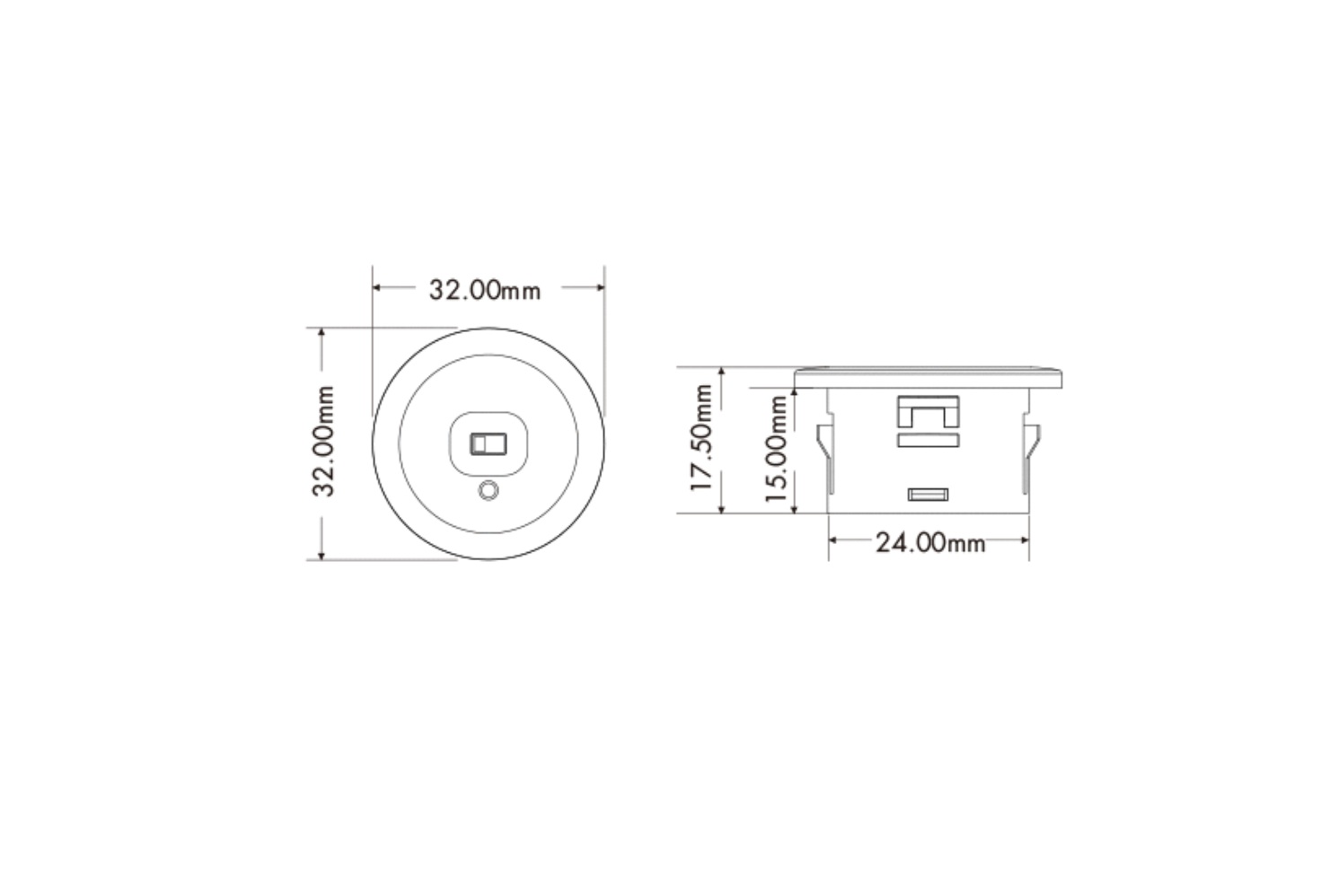

| Dimensions | L32 x W32 x H17.5mm |
| Warranty | 5 Years |
| Certification | CE, RoHS |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |

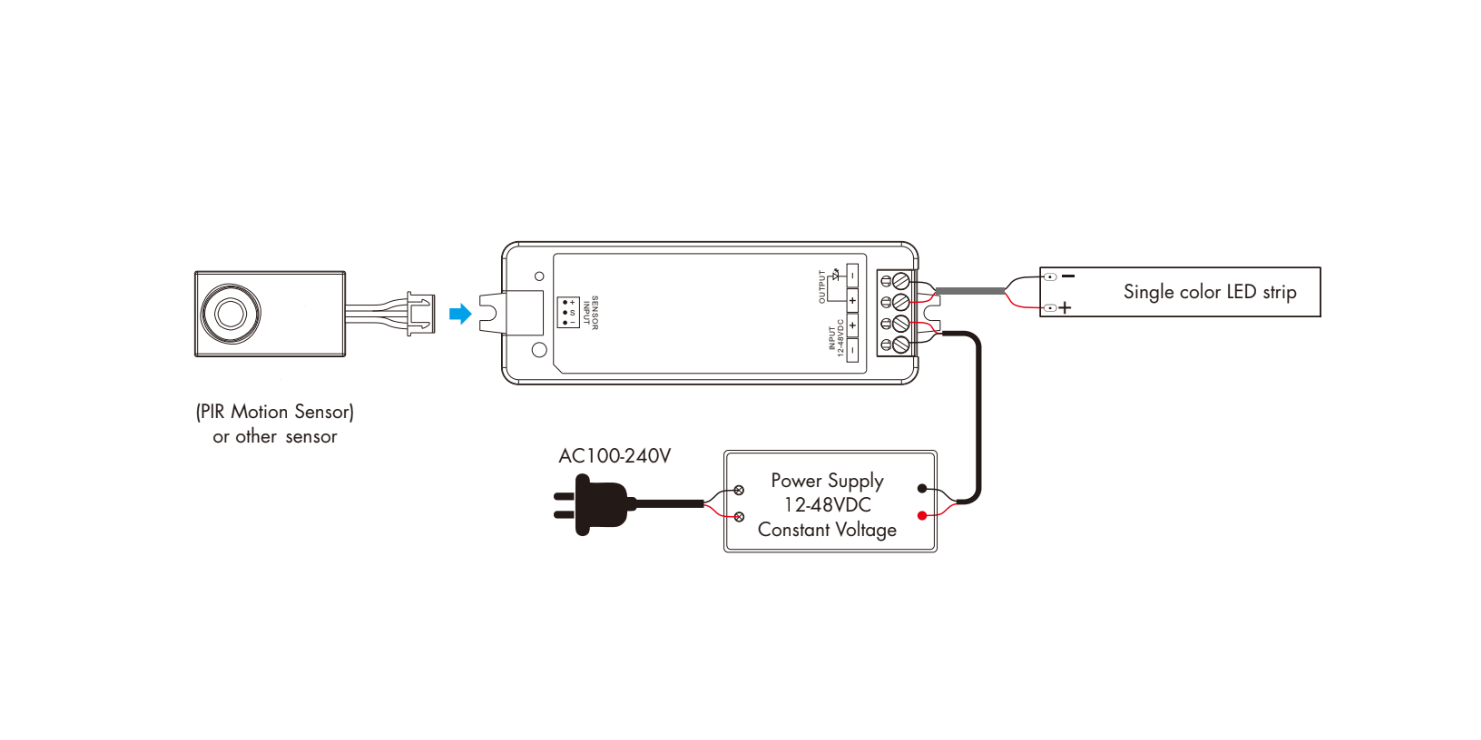

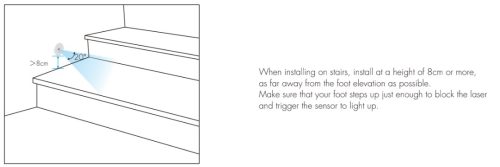

The SN-LASER is a precision laser-based human/object detection sensor designed for seamless integration with LED controllers. Operating on 5VDC low voltage, it outputs a reliable high/low signal whenever motion or presence is detected. With a detection range of 0.05–2.5m and a narrow 10° sensing angle, it provides accurate triggering for staircases, corridors, aisles, and corner lighting applications.
Featuring adjustable detection distance (set automatically at power-up or via the SET key) and 5 selectable delay times (2–60 seconds), the EL-C offers flexible configuration. Its compact design and strong performance make it an ideal choice for stair lighting, directional sensing, and sequential lighting control
