LED – DALI Bus – Power Supply & Repeater
Commercial Grade LED Controller
Full Specification
| Product Code | RC-DALI-BUS |
| Protocol | DALI |
| Product Type | Decoder |
| Zones (channels) | 1 |
| Input Voltage | 100-240VAC |
| Input Current | 0.1A |
| Output Current | Max. 200mA |
| Signal | DALI |
| Control Distance | 300m to 600m |
| Dimensions | L156 x W48 x H22mm |
| Weight | 0.082kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015/EN IEC 61547 ETSI EN 301 489-1/-3 |
| Safety standard(LVD) | EN 61347-1/-2 |
| Radio Equipment(RED) | ETSI EN 300 440 |
| Certification | CE, RoHS |
| Compatible Products | RC-DALI-4 RC-DALI-1 |

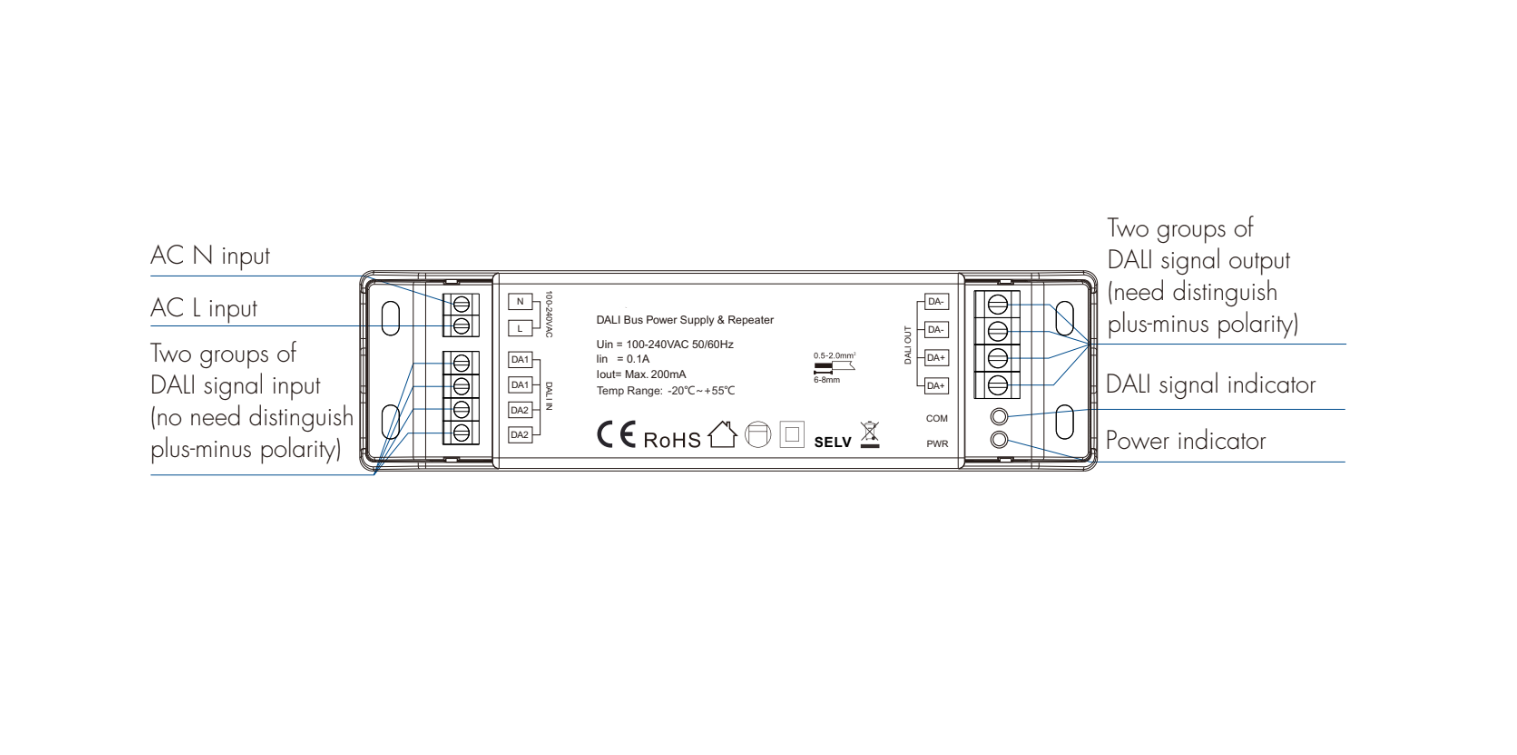

The RC-DALI-BUS is a professional DALI bus power supply and repeater designed to enhance and extend DALI networks. With a built-in 200mA DALI power supply, it both powers and repeats DALI signals, ensuring stable bidirectional communication across extended installations.
Supporting star or cascade topologies, the RC-DALI-BUS allows line extensions up to 600m with a single repeater or 1200m with up to 3 repeaters in series. It provides full electrical isolation between the main and subordinate circuits, improving system reliability and safety. Compact, efficient, and compliant with international EMC and safety standards, the DA-PL is the perfect solution for large-scale DALI lighting systems.
