LED Sensor Control Unit
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-UNIT |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Input Voltage | 12-48V DC |
| Input Current | 8.1A |
| Output Voltage | 12-48V DC |
| Output Current | 8A |
| Output Wattage | 96W – 12v / 192W – 24v |
| Signal | Push switch / Sensor |
| Control Distance | 1-6m |
| Dimming Range | 0 -100% |
| Dimensions | L114 x W38 x H26mm |
| Weight | 0.052kg |
| Warranty | 5 Years |
| EMC standard (EMC) | EN IEC 55015:2019+A11:2020 EN 61547:2009 EN IEC 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019 |
| Safety standard(LVD) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, RoHs, EMC, RED |
| Compatible Products | SN-WOOD / SN-DOOR / SN-HAND SN-MICRO / SN-PIR / SN-LASER |

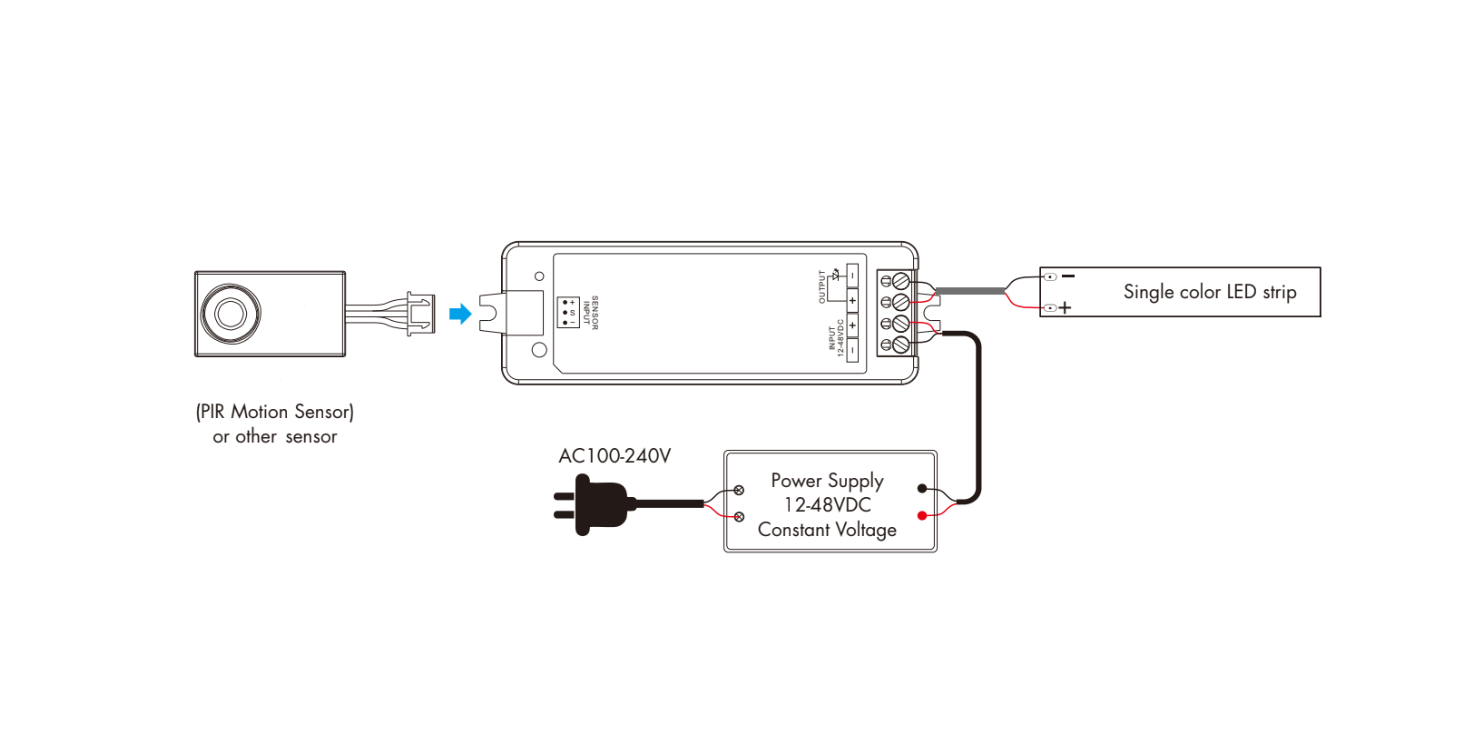

The SN-UNIT is a versatile sensor-based LED dimmer designed for seamless integration with a variety of sensor heads, including PIR motion, touch, hand sweep, door, and microwave sensors. With a max output of 8A and up to 192W at 24V, it directly powers constant voltage LED strips while offering smooth dimming and smart on/off control.
Each compatible sensor provides unique functionality — from automatic motion activation, touch and hand sweep dimming, to door-triggered control and microwave motion sensing for wide coverage. Built with 2000Hz PWM dimming for flicker-free performance, compact housing, and multiple installation options, the E1-L is a flexible solution for modern residential, commercial, and architectural lighting systems.
