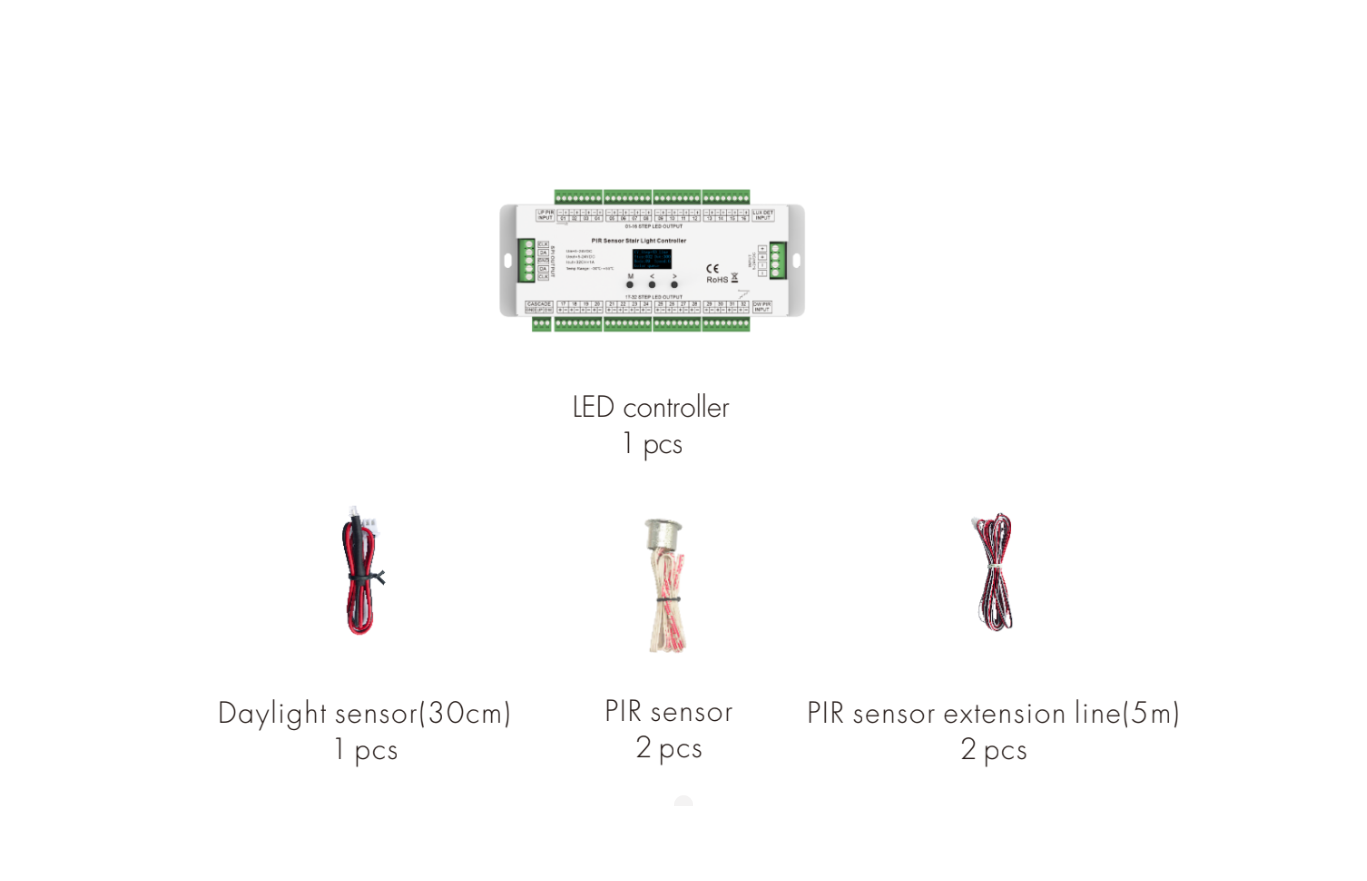

LED Stair Light Kit
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-STAIR-KIT |
| Protocol | Sensor |
| Compatible LED | White & Single Colour Colour Changing (RGB/W) Pixel |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Input Voltage | 5–24V DC |
| Input Current | 32A |
| Output Voltage | 32 x (5-24V) DC |
| Output Current | 32 x 1A/CH |
| Output Wattage | 32 x (5-24W) |
| Signal | Push-DIM / Sensor |
| Control Distance | 1-6m |
| Dimming Range | 0-100% |
| Dimensions | L213 x W130 x H45mm |
| Weight | 0.65kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Certification | CE, RoHs, EMC |
| Compatible Products | SN-WOOD / SN-DOOR / SN-HAND SN-MICRO / SN-PIR / SN-LASER |

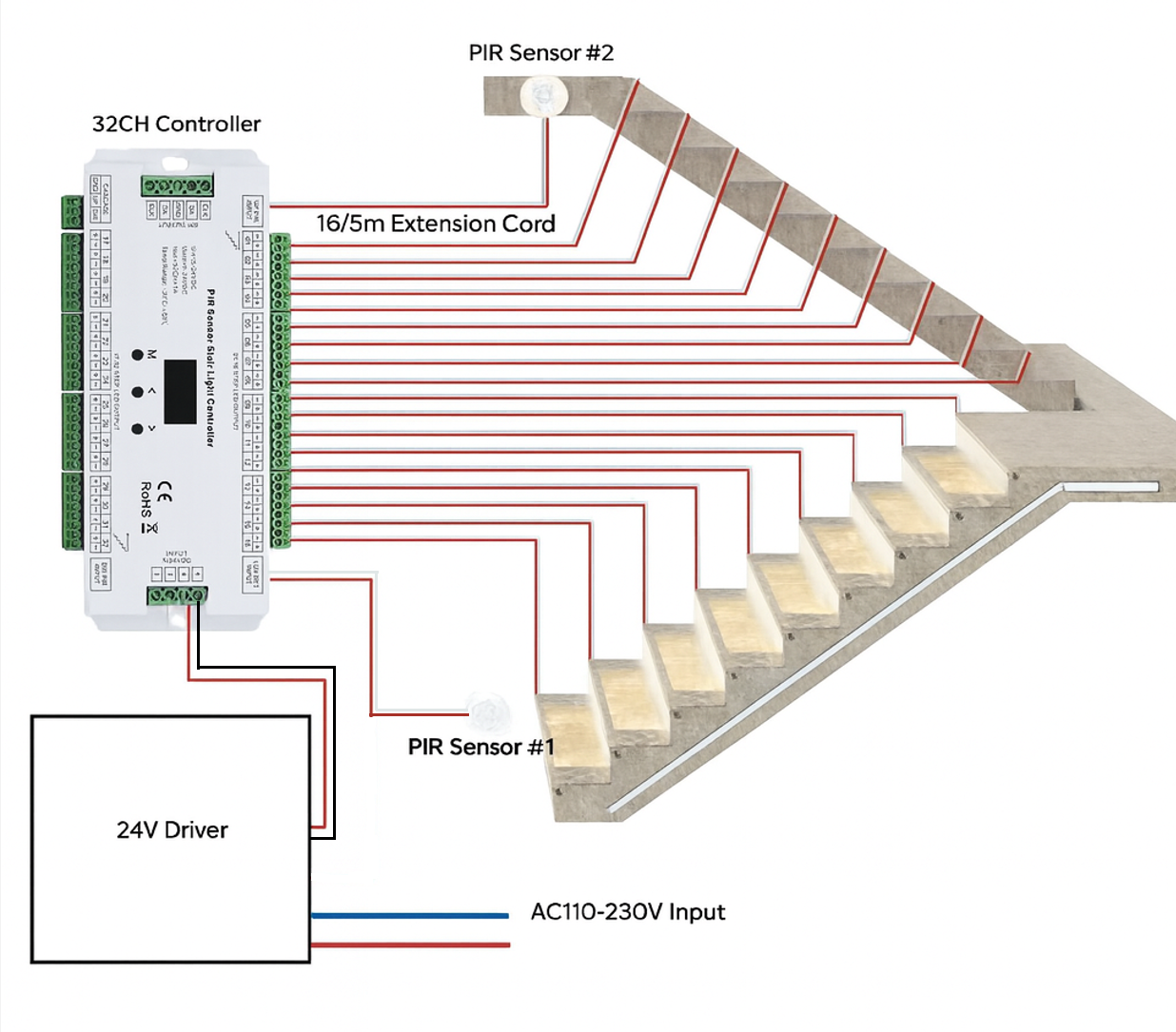

The SN-STAIR-KIT is a professional 32-channel stair light controller designed for dynamic step-by-step LED lighting effects in staircases and corridors. With constant voltage outputs (32×1A channels) and dual SPI (TTL) outputs, it supports both white LED strips and digital RGB pixel strips for customisable effects.
Featuring up and down PIR sensors, a daylight sensor, and a cascade function, enables fully automated sequential lighting. Users can configure four lighting modes (White Step, Colour Flow, Colour Step, Step+Flow) with adjustable speed, brightness, and delay. The OLED display with 3-button control ensures easy setup, while built-in overheat, short-circuit protection, and self-testing guarantee reliability.
