Microwave / Human Motion – LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-MICRO |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0.5 – 5m |
| Cable Length | 1m |
| Detection Angle | 120° |
| IP Rating | 20 |

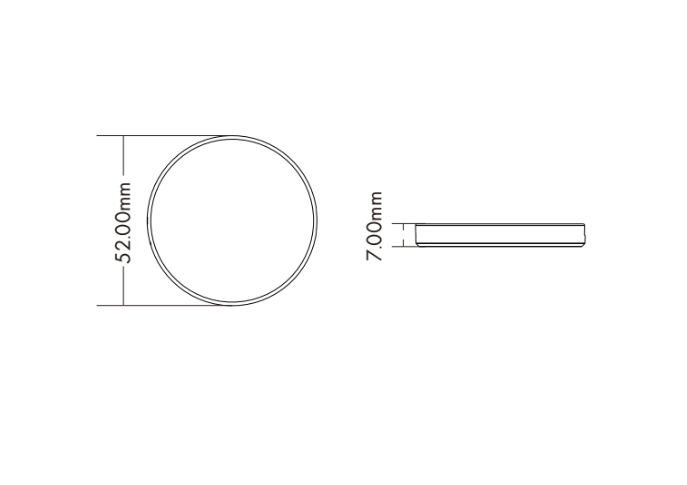

| Dimensions | L52 x W52 x H7mm |
| Warranty | 5 Years |
| Certification | CE, RoHS |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |

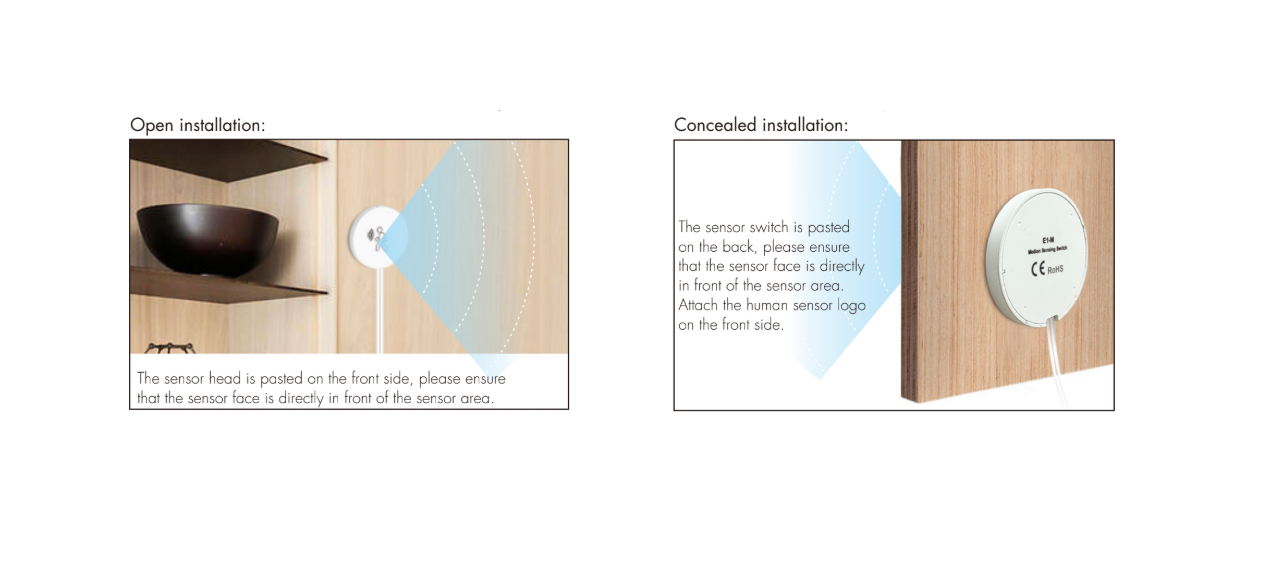

The SN-MICRO is a slim, ultra-convenient microwave human motion sensor that can be pasted almost anywhere for smart lighting control. Featuring a 5.8GHz radar module, it detects human movement through wood, glass, acrylic, or other thin non-metallic surfaces, making it ideal for concealed installations.
Powered by 5VDC with high/low level output, the SN-MICRO switches lights on when motion is detected and off after a configurable delay (10s–300s). It also allows adjustment of sensing distance (0.5–5m) for precise control. Its ultra-thin, adhesive-mount design means no cutting or drilling is required — simply paste it in place for instant, hidden automation.
