PIR Motion – LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-PIR |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0 – 4m |
| Cable Length | 1m |
| Detection Angle | 120° |
| IP Rating | 20 |

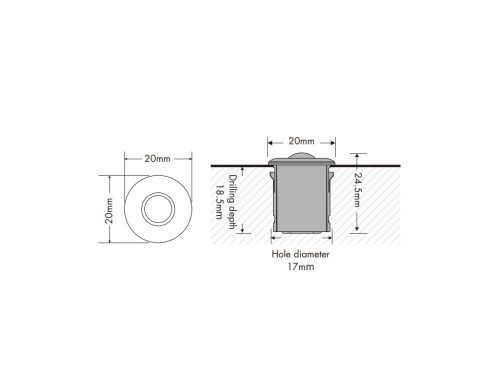

| Hole Cutout Size | 17mm |
| Dimensions | L24.5 x W20mm |
| Warranty | 5 Years |
| Certification | CE, RoHS, EMC, LVD |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |
SN-PIR– PIR Motion Sensor

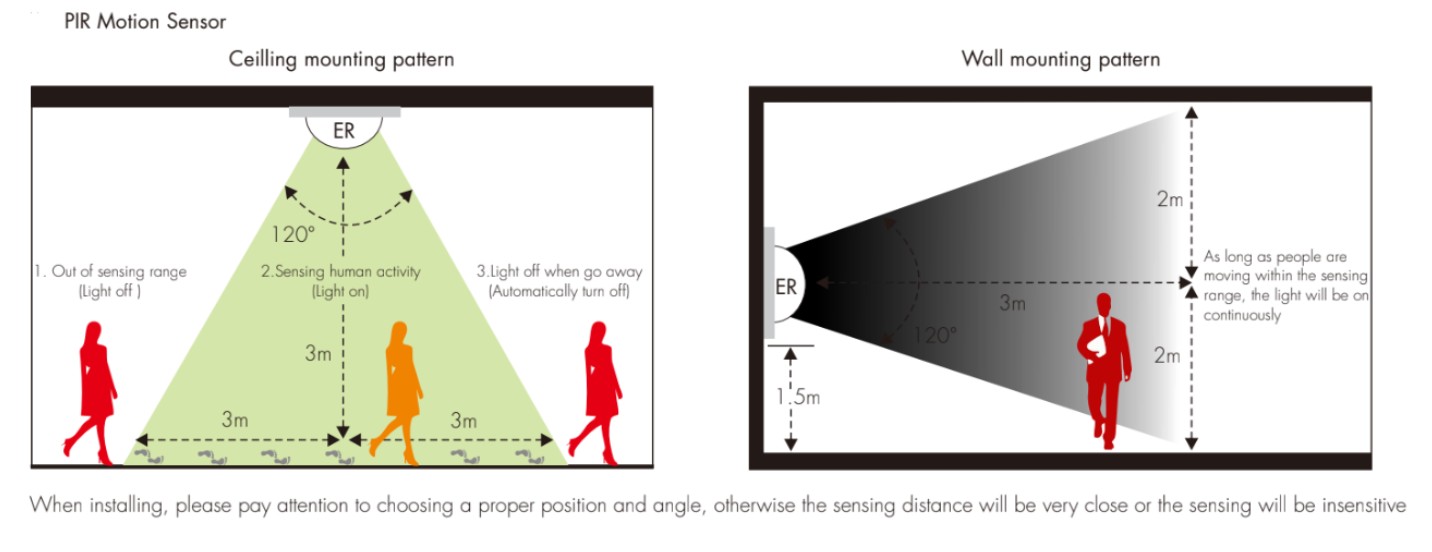

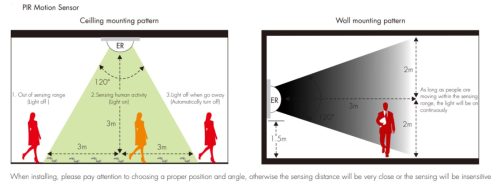

The SN-PIR is a compact, concealed PIR motion sensor designed for automatic lighting control in cabinets, closets, stairways, garages, and more. With a 3–4m detection range and 120° wide sensing angle, it provides reliable activation whenever motion is detected.

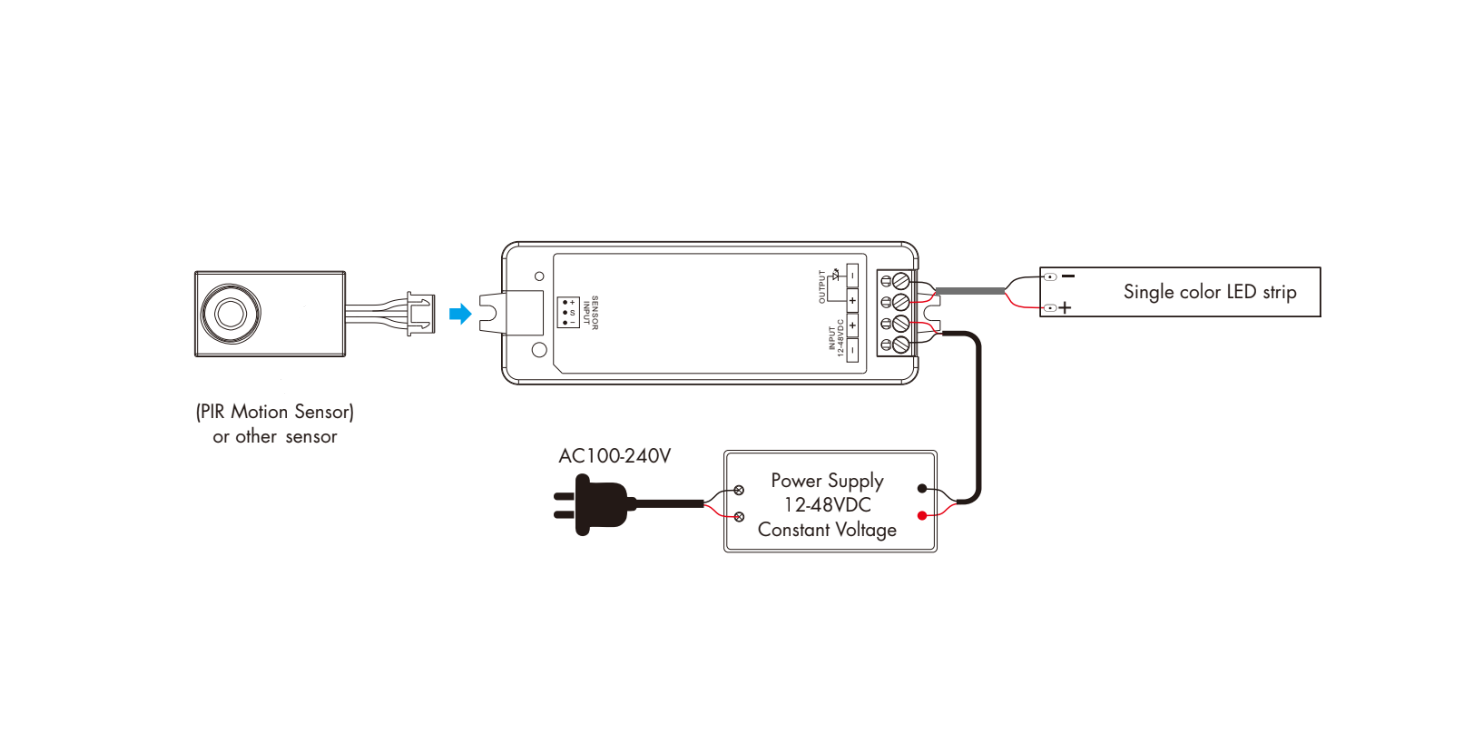

Powered by low-voltage 5VDC, the ER-A outputs a 5V level signal (high = ON, low = OFF), making it easy to integrate with constant voltage LED power supplies and controllers. Its bilateral snap design ensures quick, hidden installation for a clean and modern look.

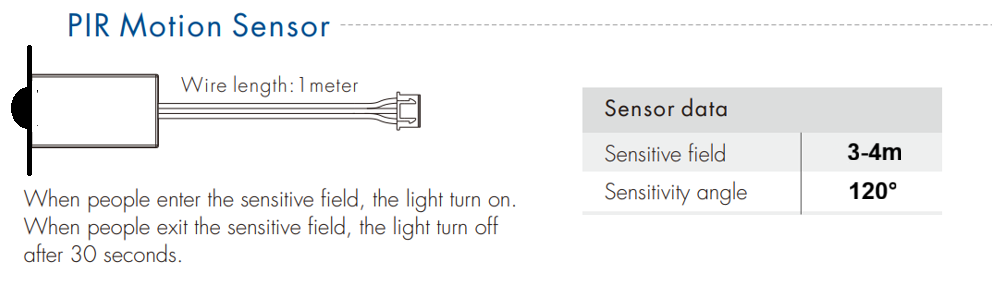

When motion is detected, lights turn on instantly and automatically switch off after 30 seconds once the area is clear — providing hands-free convenience and energy savings.
