RF & DMX 512 – LED Controller
Commercial Grade LED Controller
Full Specification
| Product Code | RC-RF-DMX |
| Protocol | DMX |
| Compatible LED | – White & Single Colour – Colour Changing (RGB/W) – Tunable White (CCT) |
| Product Type | Decoder |
| Zones (channels) | 1 |
| Input Voltage | 12-36V DC |
| Input Current | 0.1A Max |
| Signal | DMX512 + RF 2.4GHz |
| Dimming Range | 0 -100% |
| Dimensions | L120 x W43 x H27mm |
| Weight | 0.055kg |
| Warranty | 5 Years |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE, RoHs, EMC, RED |
| Compatible Products | CT-CCT-4-B / CT-CCT-4-W / CT-DIM-4-B / CT-DIM-4-W / CT-RGBW-4-W / CT-RGBW-4-B CT-WALL-1-DIM-BAT / CT-WALL-4-CCT-BAT / CT-WALL-4-DIM-BAT / CT-WALL-4-RGBW-BAT RM-CCT-1 / RM-CCT-8 / RM-DIM-1 / RM-DIM-8 / RM-RGBW-1 / RM-RGBW-8 |
The RC-RF-DMX is a versatile WiFi and RF 5-in-1 DMX512 master controller, designed for smart lighting control across DIM, CCT, RGB, RGBW, and RGB+CCT setups. With Tuya Smart app integration, it supports on/off, brightness, color, and color temperature adjustment, plus advanced features like timers, schedules, music sync, and scene recall.

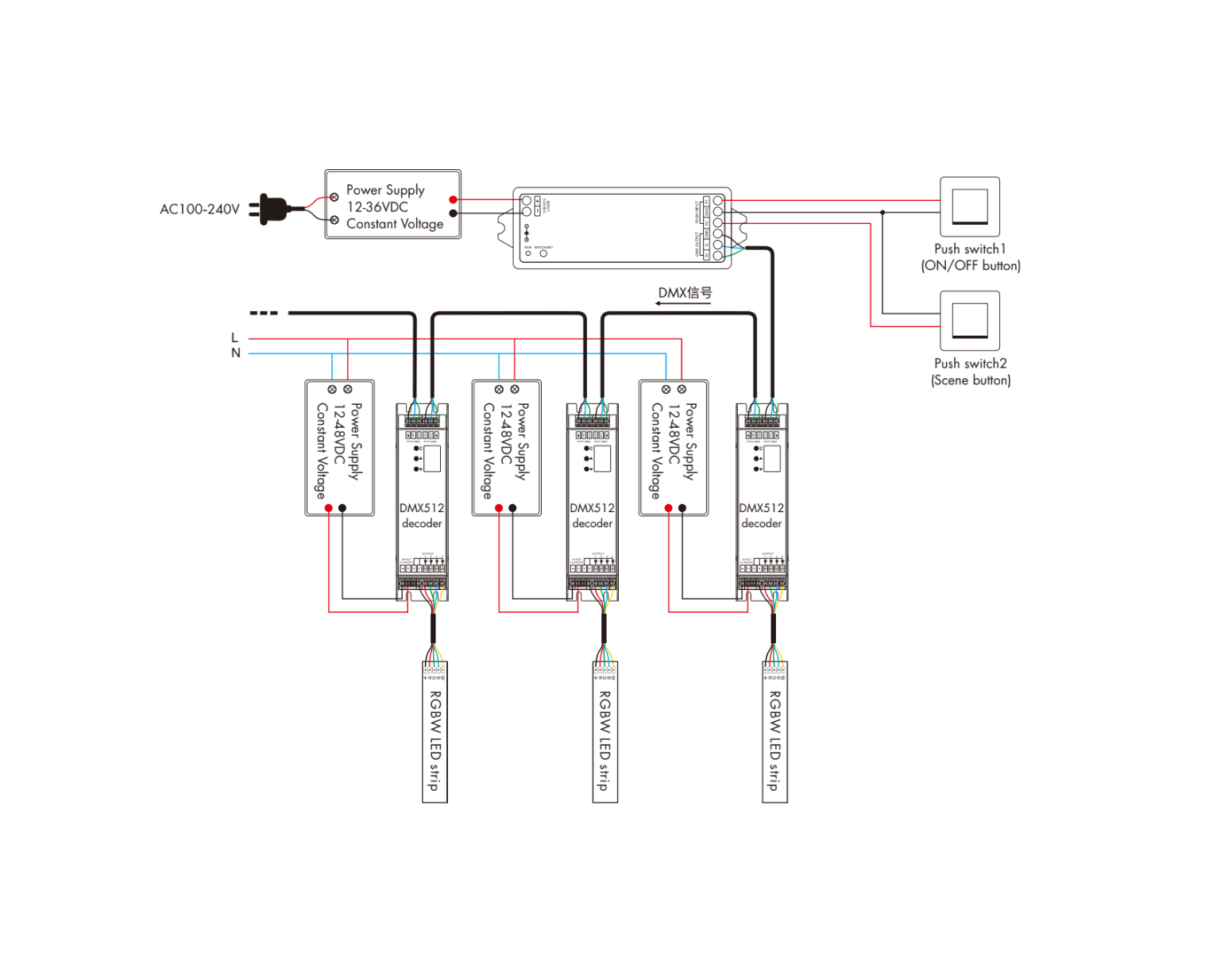

This unit also works with Amazon Alexa, Google Assistant, and other voice assistants for hands-free control. It can connect to RF remotes and push switches for flexible operation, and functions as a WiFi/RF-to-DMX512 converter, enabling synchronized control of multiple decoders across long distances. Compact, powerful, and easy to set up, it’s perfect for smart homes, commercial spaces, and architectural lighting.
