RGB/W – SPI – Pixel – LED Remote Controller
Commercial Grade LED Remote Controller
Full Specification
| Product Code | PIXEL-RM-RGBW |
| Protocol | Pixel (SPI) |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Remote Control |
| Zones (channels) | 4 |
| Input Voltage | 3VDC (CR2032) |
| Signal | RF 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |
| Dimensions | L56 x W78 x H20mm |
| Weight | 0.040kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products | PIXEL-CONTROL |
RGB/W SPI Pixel LED remote controller with 4-zone control.
The PIXEL-RM-RGBW is a sleek RF touch panel Remote control designed for multi-zone pixel and LED lighting systems. With support for 1–4 zones, it allows users to control brightness, colour temperature, and RGB/RGBW effects with precision.

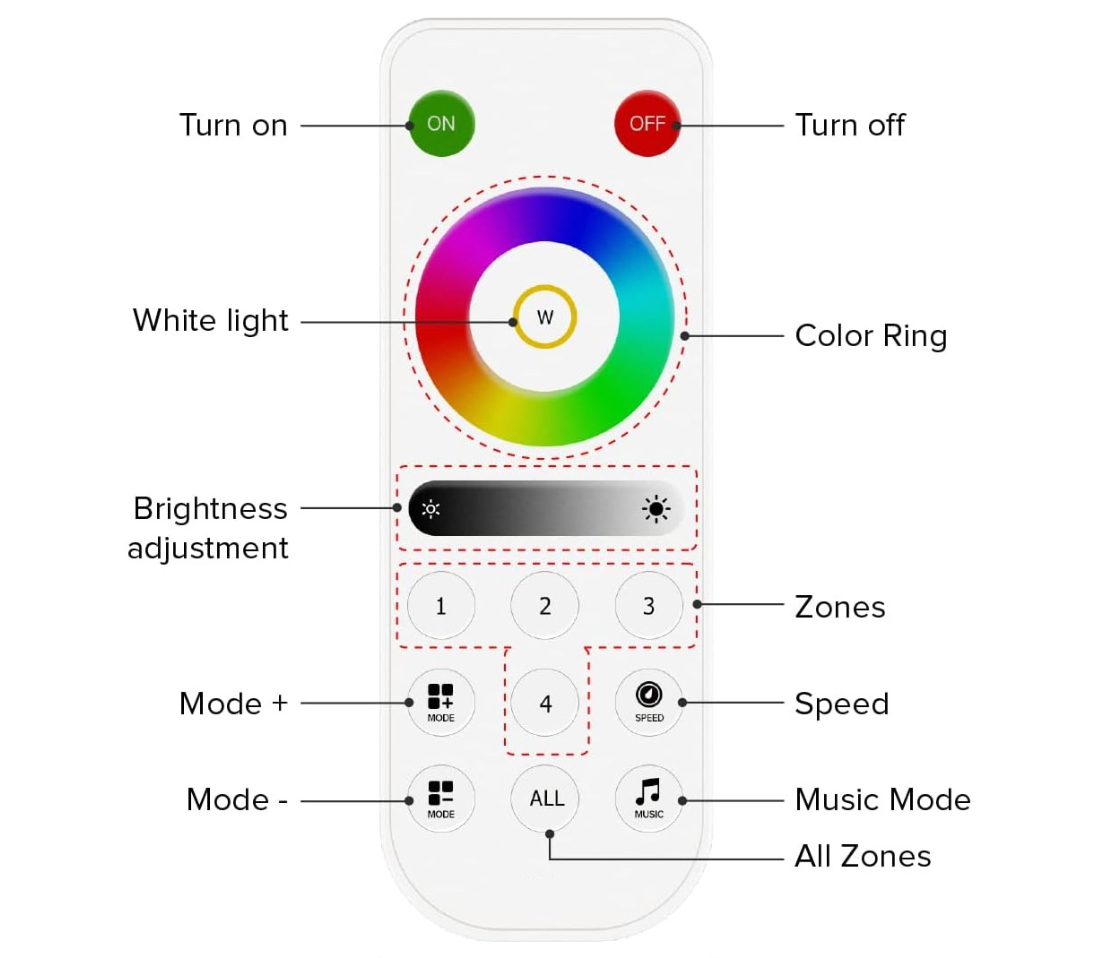

The intuitive touch rings provide smooth adjustment of brightness, color hue, and white temperature, while the zone buttons let you manage areas independently or all at once. Additional features include music mode, 1–100% dimming, and easy remote pairing/unpairing. Designed for modern interiors, the PIXEL-WALL combines style, convenience, and advanced wireless control.
