RGB/W – SPI – Pixel – LED Wall Plate Controller
Commercial Grade LED Controller
Full Specification
| Product Code | PIXEL-WALL-RGBW |
| Protocol | Pixel (SPI) |
| Compatible LED | Colour Changing (RGB/W) |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 3VDC (CR2032) |
| Signal | RF 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |

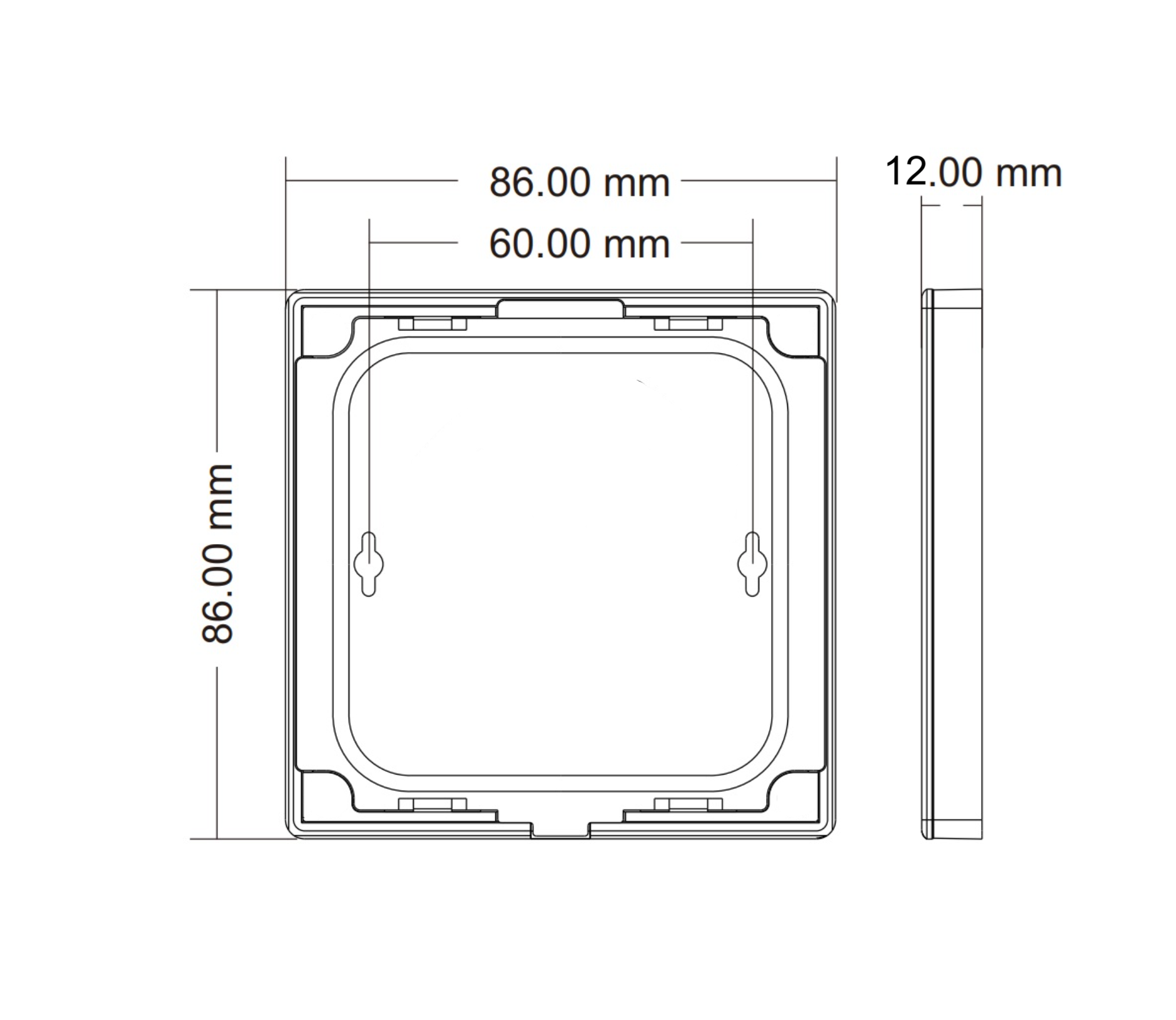

| Dimensions | L86 x W86 x H12mm |
| Weight | 0.064kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products | PIXEL-CONTROL |
RGB/W SPI Pixel LED wall plate controller with 4-zone control
The PIXEL-WALL-RGBW is a sleek RF touch panel Wall control designed for multi-zone pixel and LED lighting systems. With support for 1–4 zones, it allows users to control brightness, colour temperature, and RGB/RGBW effects with precision.

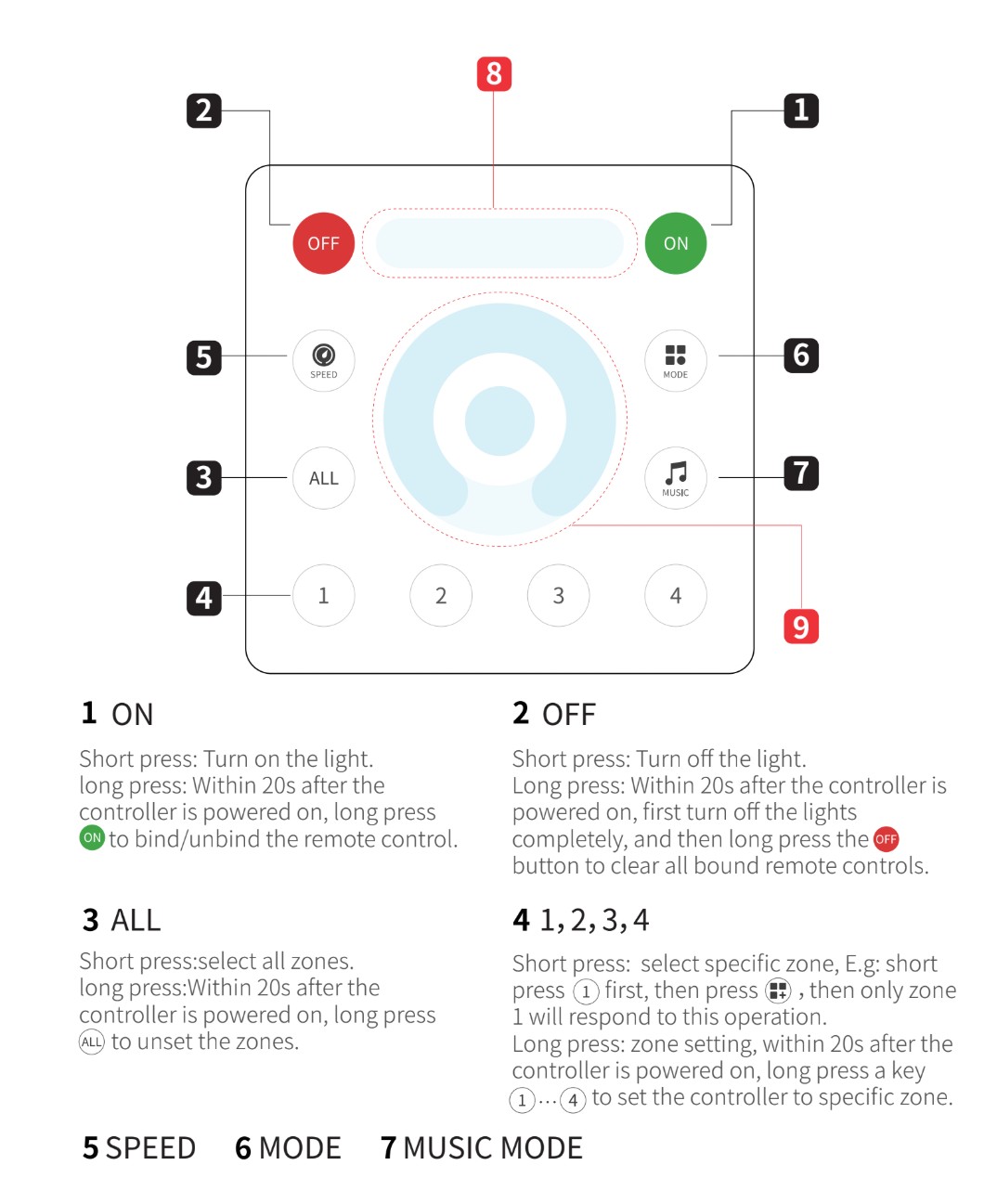

The intuitive touch rings provide smooth adjustment of brightness, color hue, and white temperature, while the zone buttons let you manage areas independently or all at once. Additional features include music mode, 1–100% dimming, and easy remote pairing/unpairing. Designed for modern interiors, the PIXEL-WALL combines style, convenience, and advanced wireless control.
