Single Colour – SPI – Pixel – LED Wall Plate Controller
Commercial Grade LED Controller
Full Specification
| Product Code | PIXEL-WALL-DIM |
| Protocol | Pixel (SPI) |
| Compatible LED | White & Single Colour |
| Product Type | Wall Plate |
| Zones (channels) | 4 |
| Input Voltage | 3VDC (CR2032) |
| Signal | RF 2.4GHz |
| Control Distance | 30m |
| Dimming Range | 0 -100% |

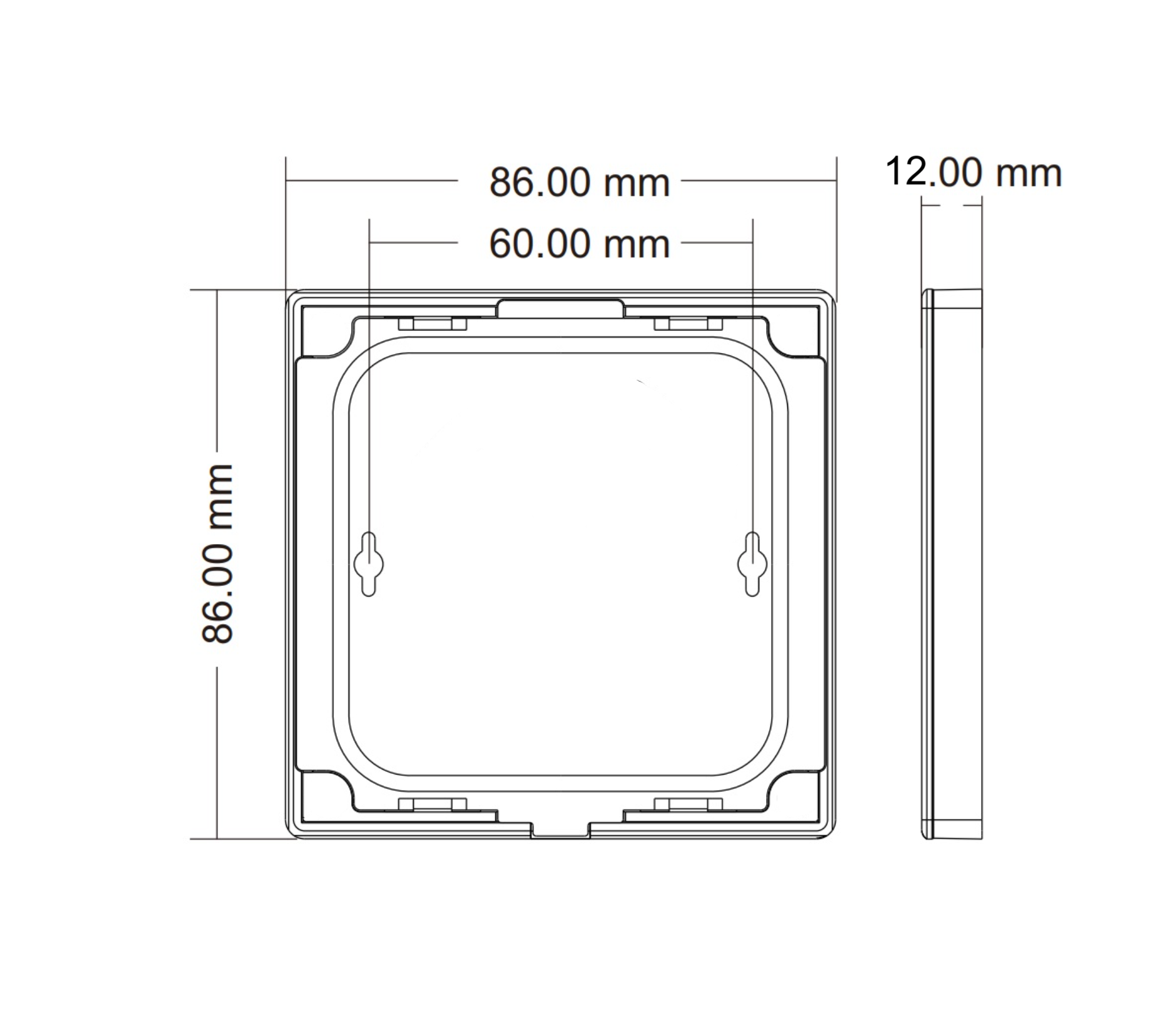

| Dimensions | L86 x W86 x H12mm |
| Weight | 0.064kg |
| Warranty | 5 Years |
| Support IC | Ws2812/Ws2811/Sk6812/Sk6818/TM1803/TM1804 |
| Certification | CE, RoHS, FCC, RED |
| Compatible Products | PIXEL-CONTROL |
Single colour SPI Pixel LED wall plate controller with 4-zone control
The PIXEL-WALL-DIM is a modern RF touch panel Wall Controller designed for precise control of single-colour LED lighting across up to 4 zones. Its intuitive touch brightness ring allows smooth 1–100% dimming, while zone buttons provide independent or grouped control for maximum flexibility.
Featuring easy pairing/unpairing, stylish wall-mount design, and reliable 2.4GHz RF communication, the perfect solution for smart, centralised control of constant voltage LED strip lighting in residential, commercial, and architectural projects.
