Touch – LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-TOUCH |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | Touch |
| Cable Length | 1m |
| IP Rating | 20 |

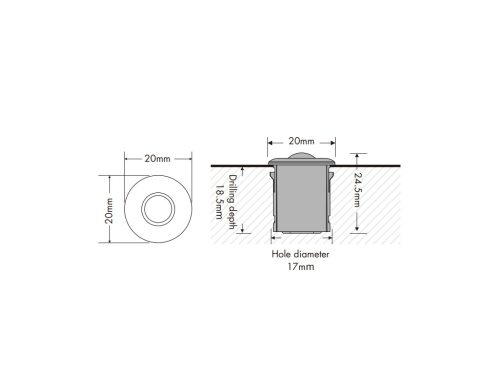

| Hole Cutout Size | 17mm |
| Dimensions | L24.5 x W20mm |
| Warranty | 5 Years |
| Certification | CE, RoHS, EMC, LVD |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |
The SN-TOUCH is a compact, concealed touch-sensing head designed for on/off switching and smooth dimming of LED lighting. Powered by 5VDC, it outputs a 5V PWM signal with 0–100% brightness adjustment, ensuring flicker-free performance for modern residential and commercial applications.
With a short touch for on/off and a long touch (1–6s) for dimming, the EC-A offers intuitive, user-friendly control. Four selectable PWM frequencies (125Hz, 500Hz, 2000Hz default, 8000Hz) allow customisation for different lighting environments, including flicker-sensitive areas. The bilateral snap design enables quick, concealed installation through a 17mm hole, making it perfect for furniture and cabinet integration.
