Wood Touch – LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-WOOD |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 1 |
| Voltage | 5V DC |
| Sensor Range | 0 – 50mm |
| Cable Length | 1m |
| IP Rating | 20 |

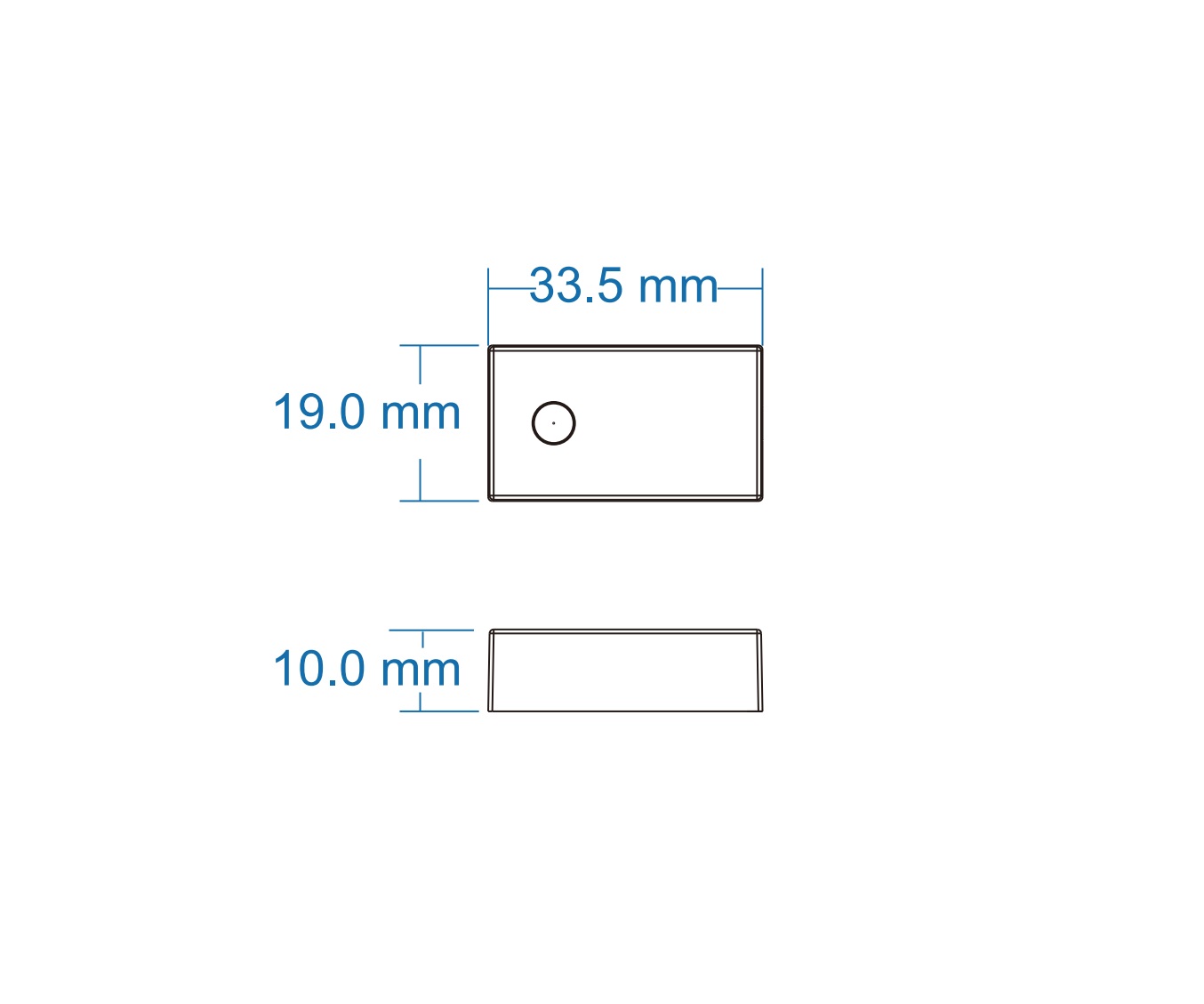

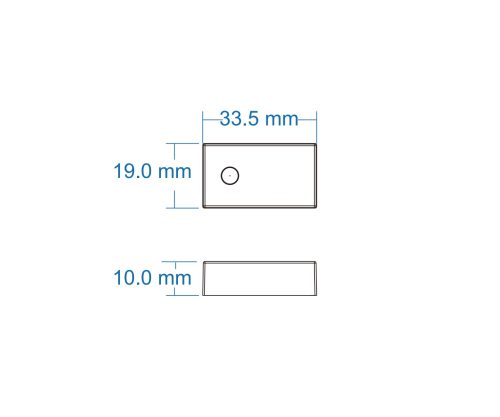

| Dimensions | L33.5 x W19 x H10mm |
| Certification | CE, RoHS, EMC, LVD |
| Compatible Products | SN-UNIT / SN-UNIT-DS / SN-STAIR-KIT |

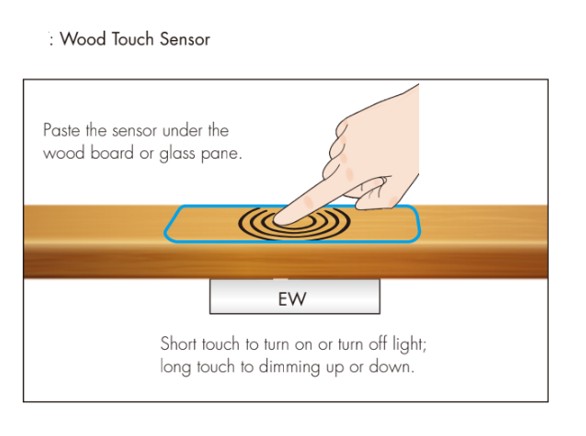

The SN-WOOD Wood Touch Sensor is a discreet, innovative control solution that allows users to switch and dim LED lights through wood, glass, or plastic surfaces. Simply tap or hold the sensing area to turn lights on/off or smoothly adjust brightness. With its slim, compact design, it integrates seamlessly into furniture, cabinets, and architectural elements, creating a modern, invisible interface for LED lighting control.

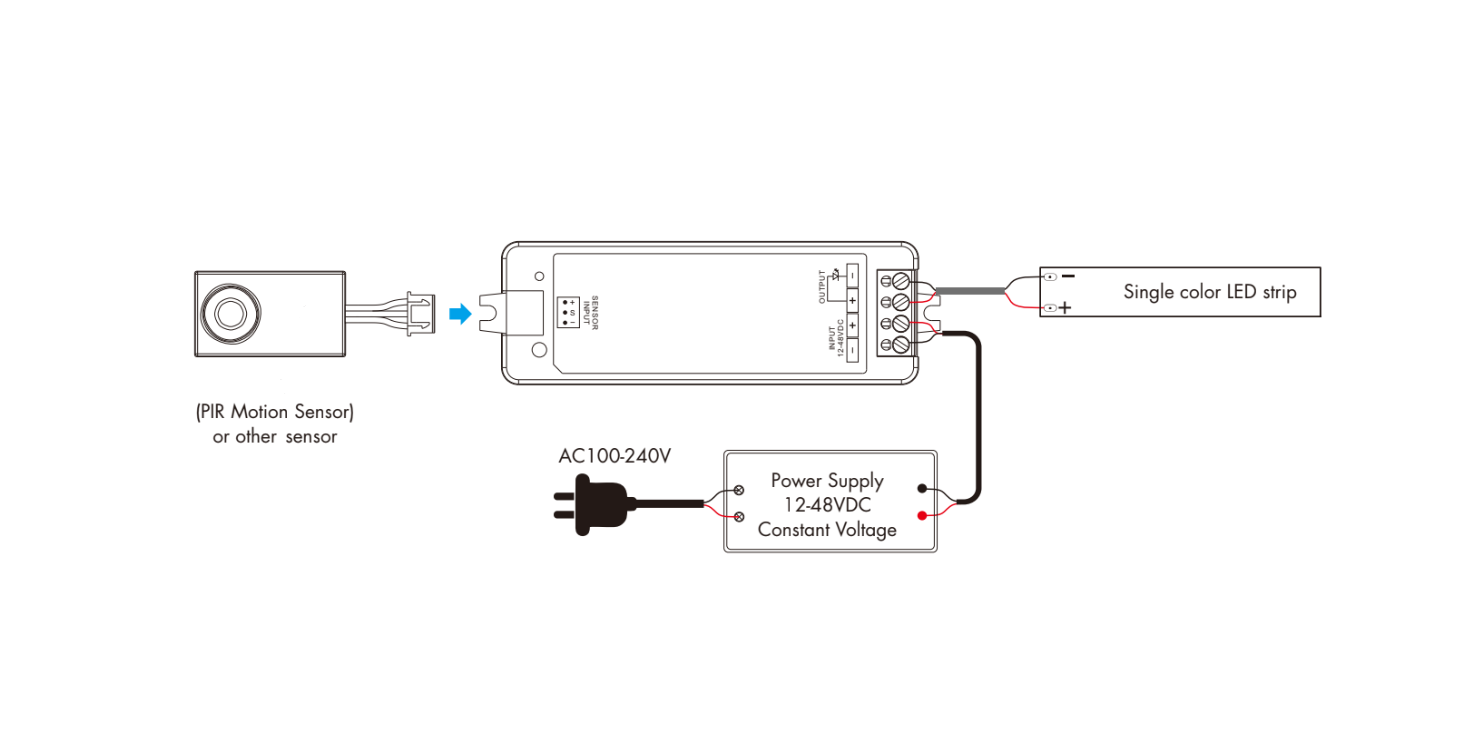

Powered by low-voltage 5VDC, the sensor outputs a 5V or PWM signal for direct connection to compatible LED controllers and dimmers. Offering 0–100% dimming with 2000Hz PWM frequency, it ensures flicker-free performance suitable for residential and commercial applications.
