100W Constant Voltage LED Driver 12v / 24v IP67
Commercial Grade LED Driver
Full Specification
| Product Code | IN-100-24-IP |
| Wattage | 100W |
| Voltage (DC) | 24v |
| Current (DC) | 4.16A |
| Length | 200mm |
| Width | 62mm |
| Depth | 32mm |
| Dimmable | Non Dimmable |
| IP Rating | IP67 |
| Input Voltage | 100 / 240 AC |
| Input Current | 0.5A / 230V |
| Inrush Current | 40A / 230V |
| Input Frequency | 50 / 60Hz |
| Power Factor | >0.95 |
| Weight | 700g |
| Operating Temp | -20°C / 45°C |
| Warranty | 5 Years |
100W Constant Voltage Waterproof LED Driver | 12V / 24V, IP67
This 100W constant voltage LED driver is designed to power medium to large-scale LED lighting projects with efficiency and reliability. Converting 100–240V AC mains input into a stable 12V or 24V DC output, it ensures consistent performance across LED strip lights, panels, and other low-voltage systems.

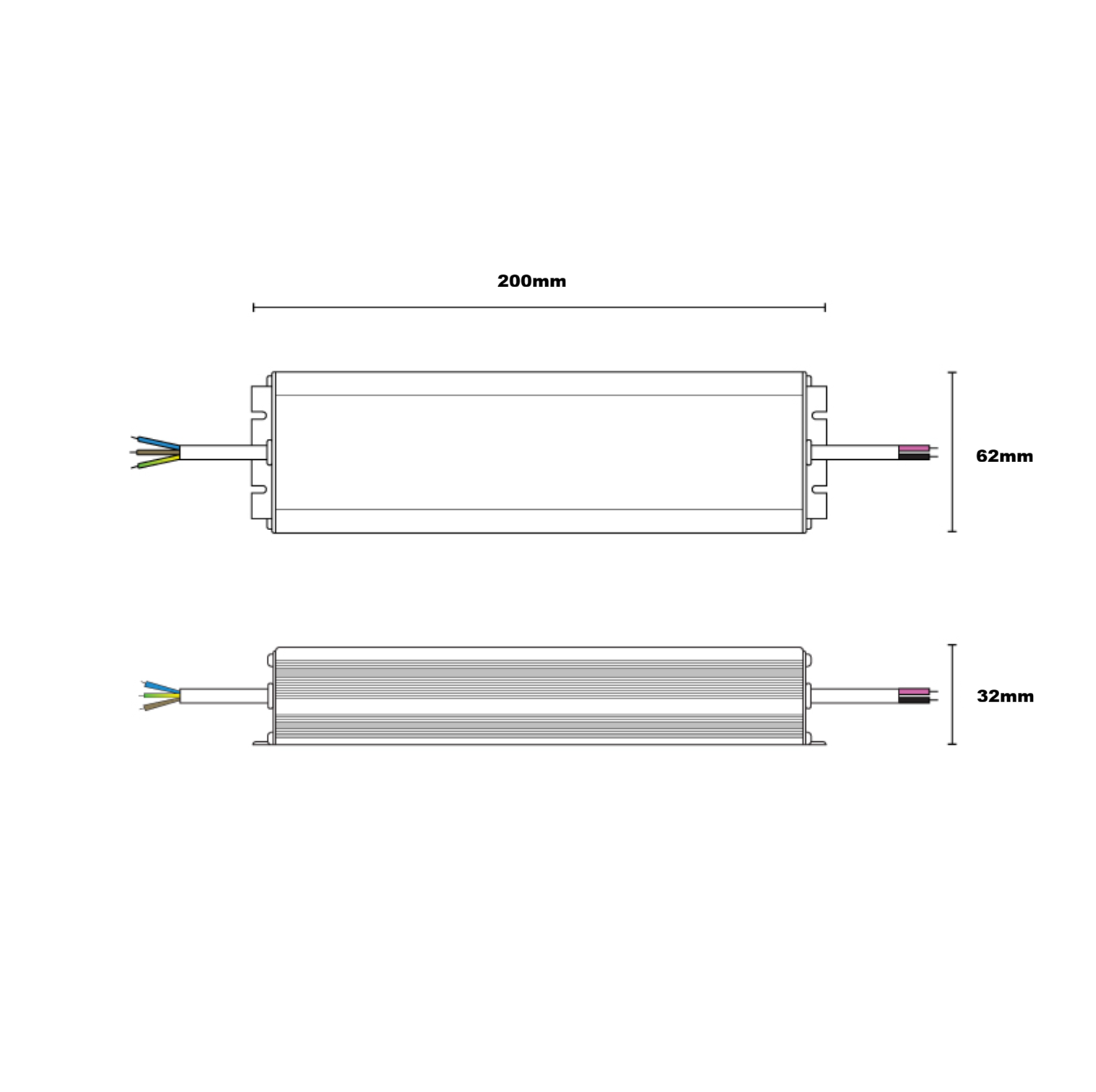

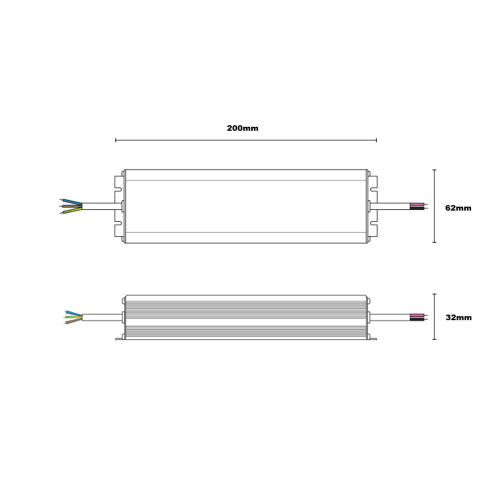

Rated IP67, the driver is fully waterproof and dustproof, making it suitable for both indoor and outdoor installations. It’s ideal for kitchens, bathrooms, gardens, signage, or architectural lighting where durability is essential. Measuring 200mm x 62mm x 32mm and weighing 700g, it combines compact size with robust construction, fitting neatly into enclosures or directly into lighting setups.
Delivering 4.16A at 24V DC, it provides reliable power while maintaining efficiency with a power factor greater than 0.95. With an input frequency of 50/60Hz and inrush current of 40A/230V, it’s engineered for commercial-grade applications. Operating across a wide temperature range of -20°C to 45°C, it guarantees stable performance in challenging environments.
This model is non-dimmable, designed for straightforward on/off applications. Backed with a full 5-year warranty, the 100W constant voltage waterproof LED driver is a professional-grade solution built for safety, efficiency, and long-lasting reliability.
