6.5w 12v PIXEL SPI 60 LED/IC Colour Changing RGB LED Strip Light
Commercial Grade LED Strip Light
Full Specification
| Product Code | RGB-6.5-Pixel-SMD |
| Watts / M | 6.5W |
| Voltage | 12V |
| Led / M | 60 (IC: 60) |

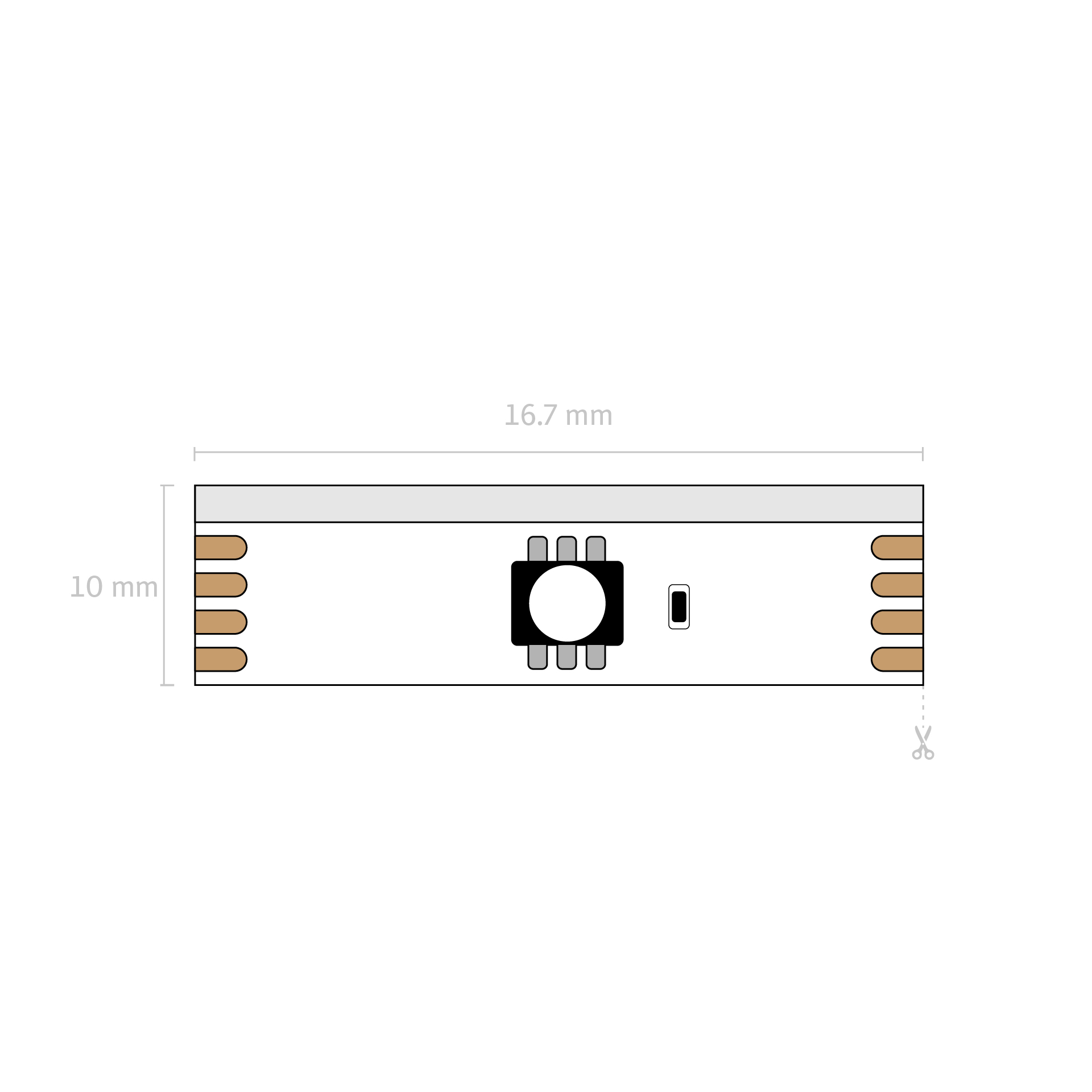

| Cut Points | 16.7mm |
| Strip Width | 10mm (IP: 10.5mm) |
| Depth | 2mm (IP: 3mm) |
| Lumens / M | 1440 |
| Lumens / Watt | 120 |
| Colour Options | RGB |
| Cri | 90+ |
| Ip Rating | 20, 65, 67 |
| Beam Angle | 120° |
| Reel Length | 5m |
| Max Run Length | 10m (Power One End) |
| Warranty | 5 Years |
| Backing Tape | 3m 300LSE |
| Chip Set | Epistar (TM2812) |
6.5W 12V Pixel SPI RGB LED Strip Light | Commercial Grade
This 6.5W 12V Pixel SPI RGB LED Strip Light is designed for dynamic, addressable lighting effects in professional installations. Featuring 60 LEDs and 60 ICs per metre, each LED is individually controllable, allowing smooth colour chasing, animations, and custom pixel effects for displays, features, and creative lighting projects.
Producing up to 1440 lumens per metre at 120 lumens per watt, it delivers impressive brightness alongside vibrant RGB colour output. A CRI of 90+ ensures colours appear clean and accurate, while the 120° beam angle provides even light distribution across surfaces.
Running on 12V, the strip supports up to 10m powered from one end, making it suitable for longer runs. Fine 16.7mm cut points allow precise installation, while the slim 10mm width and low-profile design fit neatly into aluminium profiles and channels.
Built with reliable Epistar TM2812 chipset, supplied on 5m reels, and available in IP20, IP65, or IP67, this strip includes strong 3M 300LSE backing and a 5-year warranty for dependable, long-term performance.
- High Quality Branded LED Chip
- LEDs are independently addressable (via SPI protocol)
- Commercial Grade Digital LED Strip Lights
