Double Door | LED Sensor
Commercial Grade LED Sensor
Full Specification
| Product Code | SN-DOOR-DOOR |
| Protocol | Sensor |
| Compatible LED | White & Single Colour |
| Product Type | Sensor |
| Zones (channels) | 2 |
| Voltage | 12-24VDC (5A) |
| Sensor Range | 0 – 80mm |
| Cable Length | 400mm |
| Detection Angle | 120° |
| IP Rating | 20 |

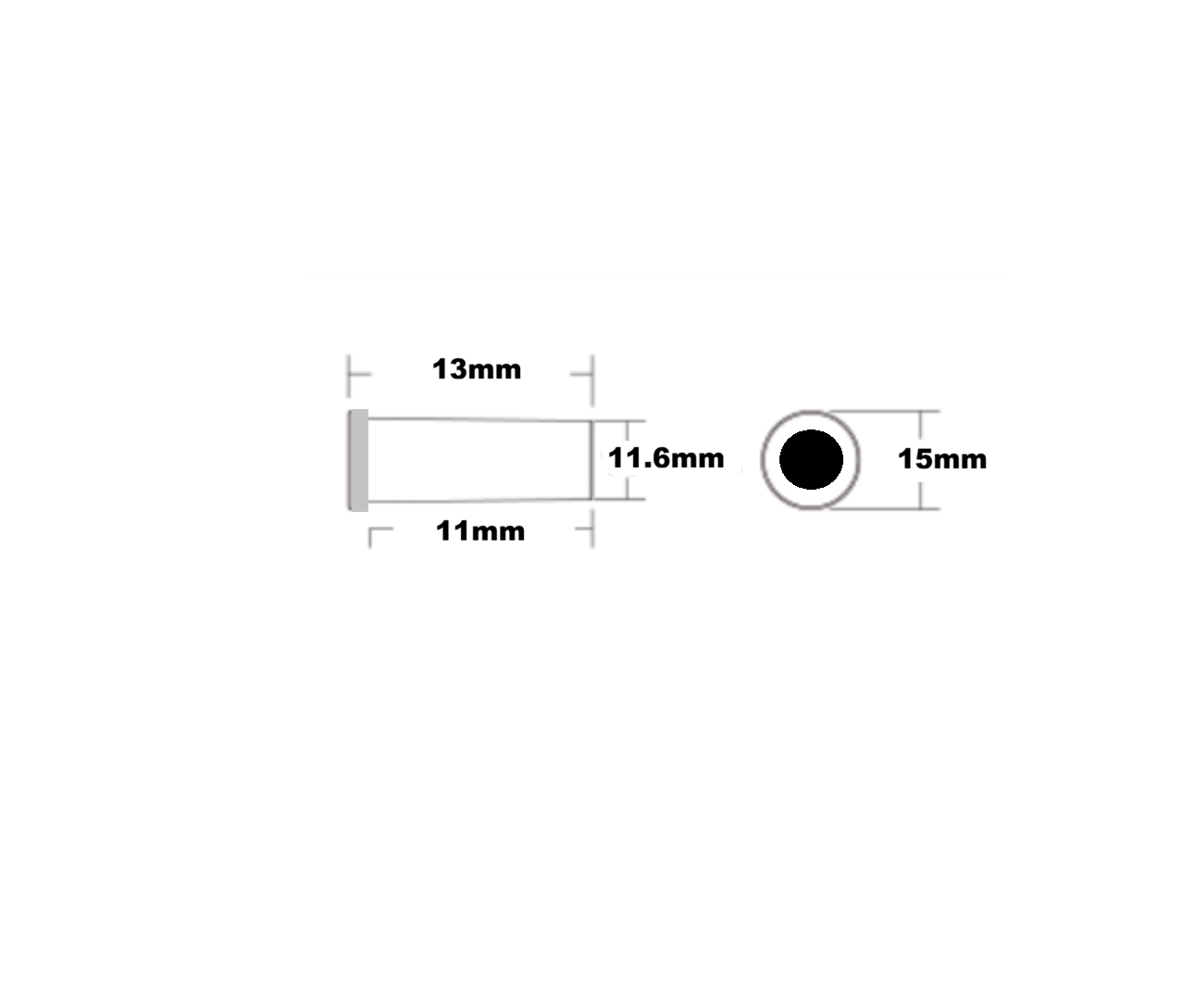

| Hole Cutout Size | 11.6mm |
| Dimensions | L13 x W15mm |
| Warranty | 5 Years |
| Certification | CE, RoHS |
The SN-DOOR-DOOR is a compact, low-voltage double door sensor switch designed for LED lighting control in cabinets, wardrobes, and furniture applications. Powered by 5VDC, it outputs a 5V level or PWM signal, turning lights on when the door opens and off when the door closes.

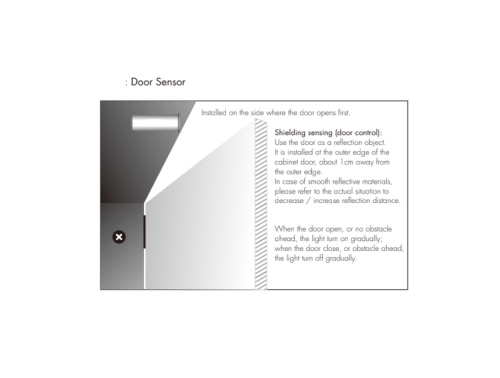

With a ≤8–10cm detection field and 15–30° sensing angle, it ensures a precise response to multiple door movements. The sensor supports both concealed installation (11.6mm hole) — giving flexibility for different furniture designs. Operating at 2000Hz PWM, it delivers flicker-free dimming performance when paired with constant voltage LED drivers and controllers.
Features
Double-Door Activated Lighting – Lights turn on when either door opens, off when closed
Low Voltage Powered – 5VDC input with 5V/PWM signal output
Compact Design – ≤10cm sensing distance, 15–30° angle
Smooth Performance – 2000Hz PWM signal, flicker-free
Flexible Installation – Concealed (11.6mm hole)
Easy Integration – Works with constant voltage LED dimming power supplies
Complete Kit – Includes sensor, control unit
Applications
Wardrobes & Closets – Automatic lighting when doors open or close.
Cabinets & Cupboards – Hands-free illumination for kitchen or storage units.
Wine Cabinets & Displays – Smart, subtle lighting control for premium interiors.
Smart Homes – Integrated sensor-based automation for furniture lighting.
Commercial Furniture – Retail shelves, hospitality units, and custom fixtures.
