More than just a professional commercial-grade wireless system for LED lighting, this InStyle multizone remote control works with both RGB and RGBW LED tape (wired to one of our standard multichannel receivers), and is also wifi compatible.
The remote has a touchscreen colour-wheel, enabling you to select any shade of any colour. The controller offers options from static colours and whites, through to colour scrolling and on/off.
With a choice of radio remote or wifi (with additional equipment), the controller does not require line-of-sight. The radio option has a range of 20 meters from the receiver, and you can install a receiver for each area of RGB/RGBW LED tape you want to control. Unlike some other remote systems, there is no limit to the number of receivers this RGB/RGBW multizone controller system can manage – making it ideal for large venues like clubs, bars and restaurants.
Not only is there no limit to the LED tape you can control from a single remote, but with this multizone controller you can also manage up to 8 zones independently! This makes the controller ideal for applications that require different settings for different areas, all controlled from one wireless remote control.
For example on a large club you set up could be:
Zone 1: Area = front bar | Setting = colour scroll
Zone 2: Area = cove lighting | Setting = static white
Zone 3: Area = back bar | Setting = Static red
and so on up to 8 zones!
The RGB/RGBW multizone Wifi controller also lets you synchronize control multiple zones – so in the example above, you could link the bar and coving lighting to the same settings. There’s also a mode that lets you control all zones together, if you want everything the same. The control this wireless system offers is unbelievable for its size and price, giving everything you need.

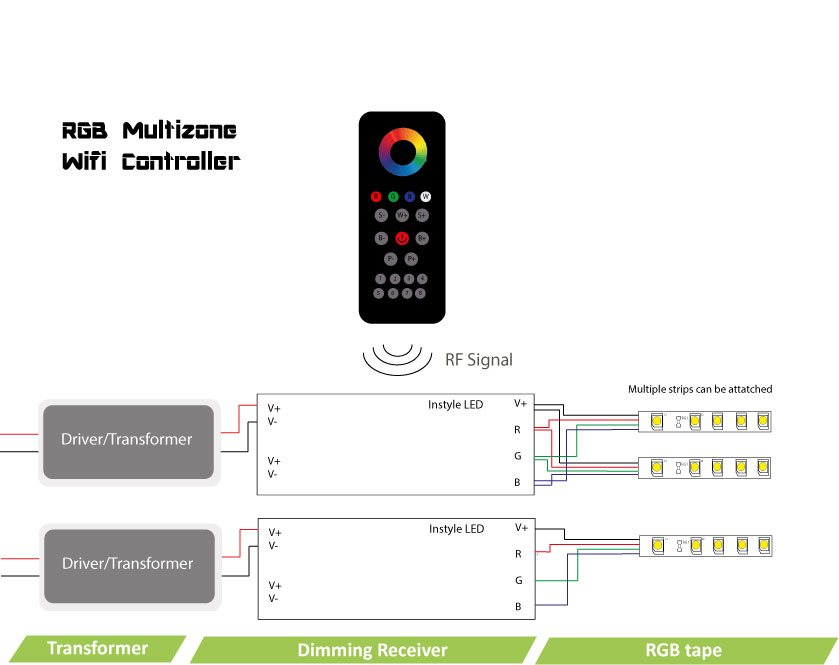

Don’t forget that you will need to purchase your multichannel wireless receiver units separately. Each receiver will power up to 40 meters of RGB 24v 7.2w LED tape, or up to 20 meters of RGB 14.4w LED tape.
|Remembers the last setting when powered on/off (even by the mains 240v)|
|8 zone control (individually, several zones or all together)|
|Touch screen with colour wheel allowing choosing any shade of any colour|
|Ideal for any 12v/24v RGB/W LED products, such as LED strips / Downlights / Wall washers|
|Radio frequency remote doesn’t need to be ‘line of site’ with receiver|
|Remote works up to 20m away from receiver|
|Easy to install (no cables required between receivers / controller)|
|Colour scroll options|
|You can have multiple receivers paired to each zone|
|You can wire multiple strips back to one receiver|
|Standard receiver (up to 240w on 12v or 480w on 24v) / High power receiver (384w on 12v / 768w on 24v)|
|Magnetic wall holder|
