At InStyle LED, we offer a choice of four different DALI dimming receiver options. Our standard single-channel DALI dimming module is perfect for single-zone installations, and for multizone projects where each zone will be managed by a separate receiver module.
This DALI dimming receiver draws 8 amps, with an input/output voltage of 12v or 24v. All of InStyle’s DALI dimming range can be used with any standard DALI protocol.
This DALI dimmer is RoHS compliant and conforms to all UK safety standards.
DALI dimming (‘‘digital addressable lighting interface’’) is an industry-wide open standard protocol, widely recognised as a successor to 0-10v LED dimmers.
| Commercial Grade DALI Receiver |
| Ideal for internal use |
| Constant voltage DALI LED Dimmer with 1 channel |
| DALI-2 certied, in accordance with DALI standard protocol |
| DALI address will be automatically assigned by DALI master, |
| PWM digital dimming, standard DALI logarithmic dimming curve |
| Connect with external push switch to achieve on/off and dimming function |
| Over-heat / Over-load / Short circuit protection, recover automatically |
Product Codes
| RC-DALI-1 |

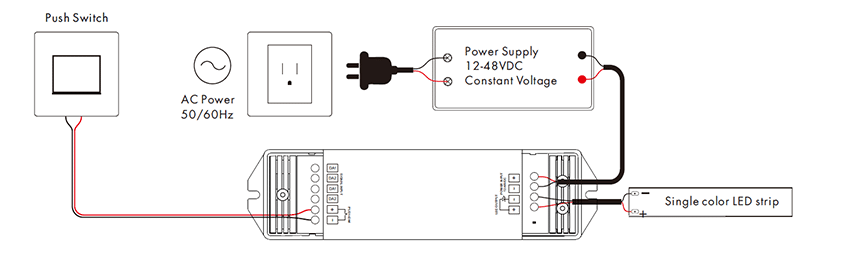

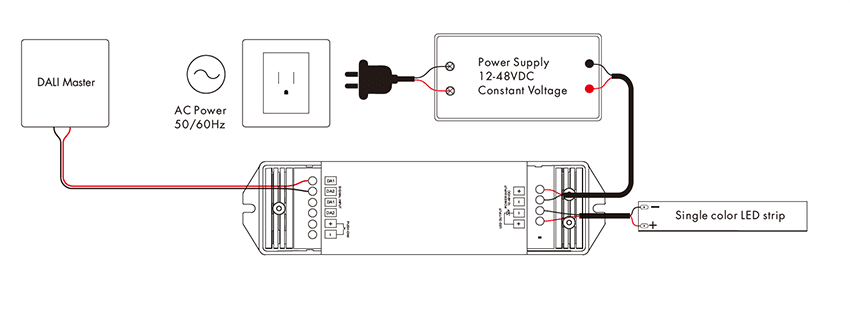

DALI LED Dimmer Module wiring diagram
