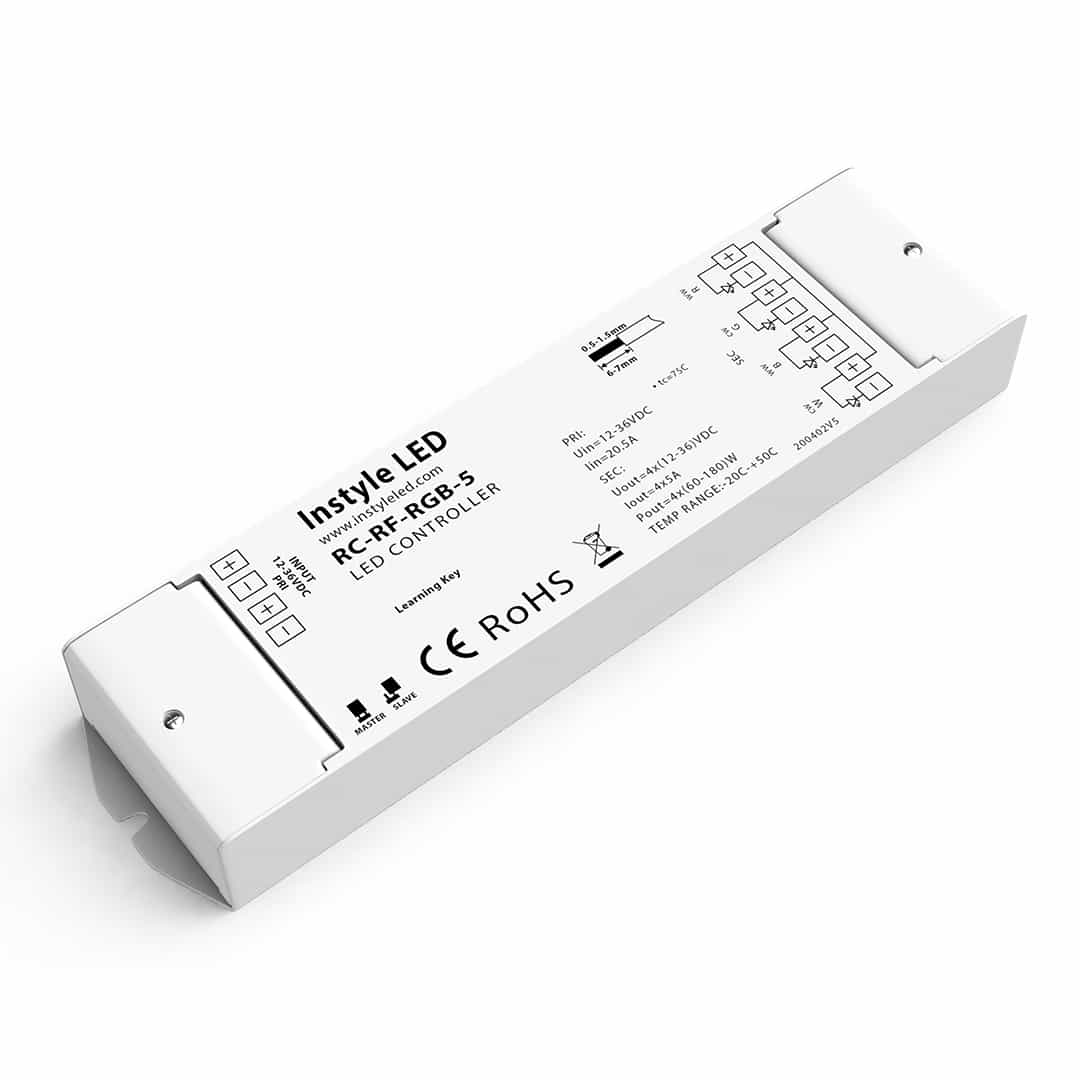

4-Channel LED Receiver (5 Amp)

For wireless dimmers/controllers (RF with wifi option) Works with RGB & RGBW LED tape

Availability : In stock for next day delivery

  • Input Voltage: DC, +12~24V
  • Length: 178mm
  • Width: 46mm
  • Depth: 22mm
  • Output Per Channel: 60 watts (12V), 120 watts (24V)
  • CE + RoHS Certificated: Yes

Product Description

INSTYLE’s 5-amp multichannel RF receiver offers four LED-control channels, so it’s ideal for our colour-changing LED tape range (RGB and RGBW). Suitable for use with either 12v or 24v LEDs, the receiver outputs 4 x 5 amps (up to 120W per channel) – if your project needs more, then please check out our sister product 8-amp multichannel LED receiver. Read more.

Features

  • Commercial Grade Multichannel Receiver
  • Ideal for internal use
  • 4 channels – 60W each (12V), 120W each (24V)

You can set multiple receiver units to a single zone, or they can be set independently to different controller zones – up to a range of 20m. Simply press the receiver’s button to synchronise with your controller.

Our multizone receiver works with RGB and RGBW LED tape, and offers the option of wifi connection as well. Using wifi, you don’t even need a controller – you can control your LED lighting through an app on your phone or tablet!

To learn more about the controllers with which this multichannel receiver is compatible, you can click on the gallery images below.

RC-RF-RGB-5
