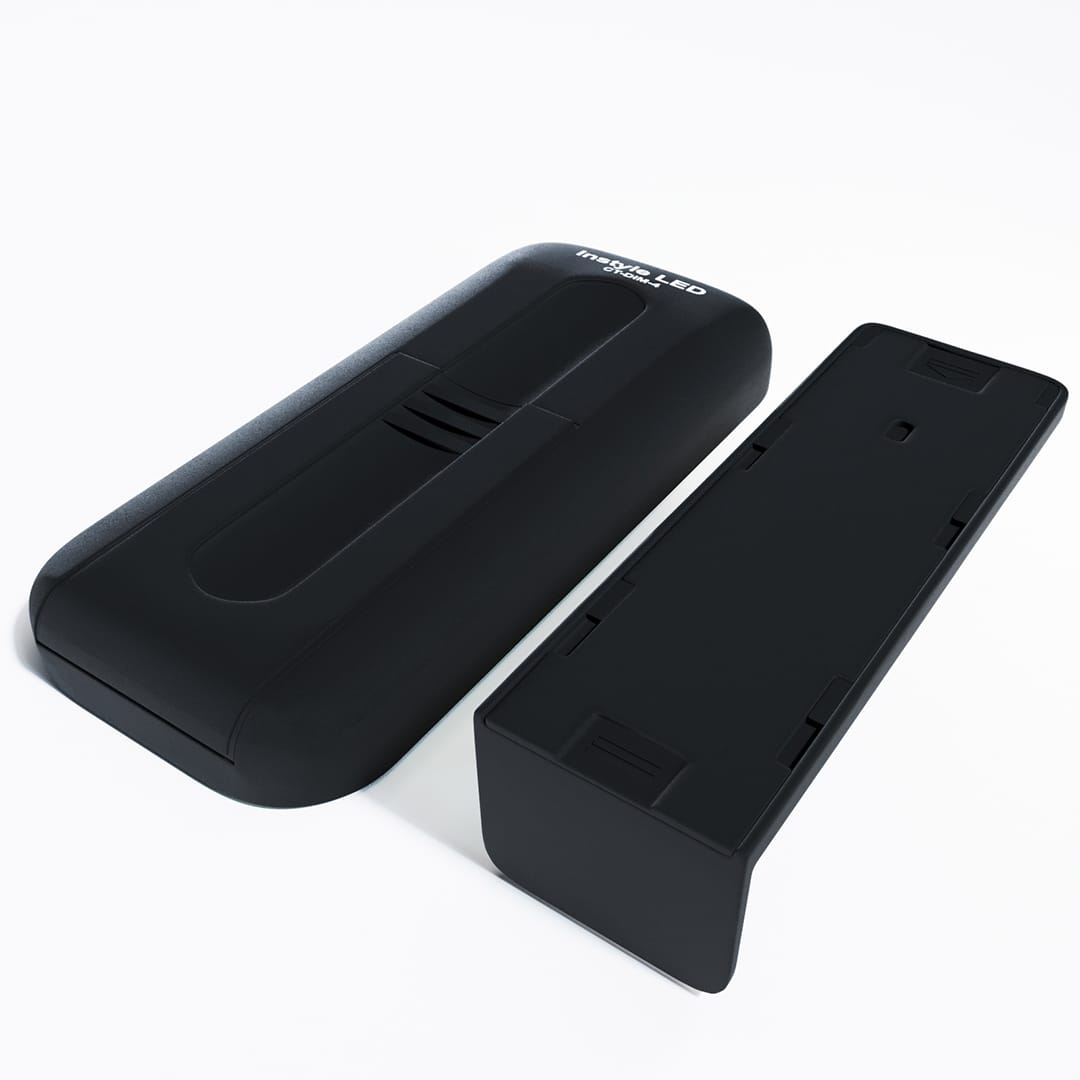

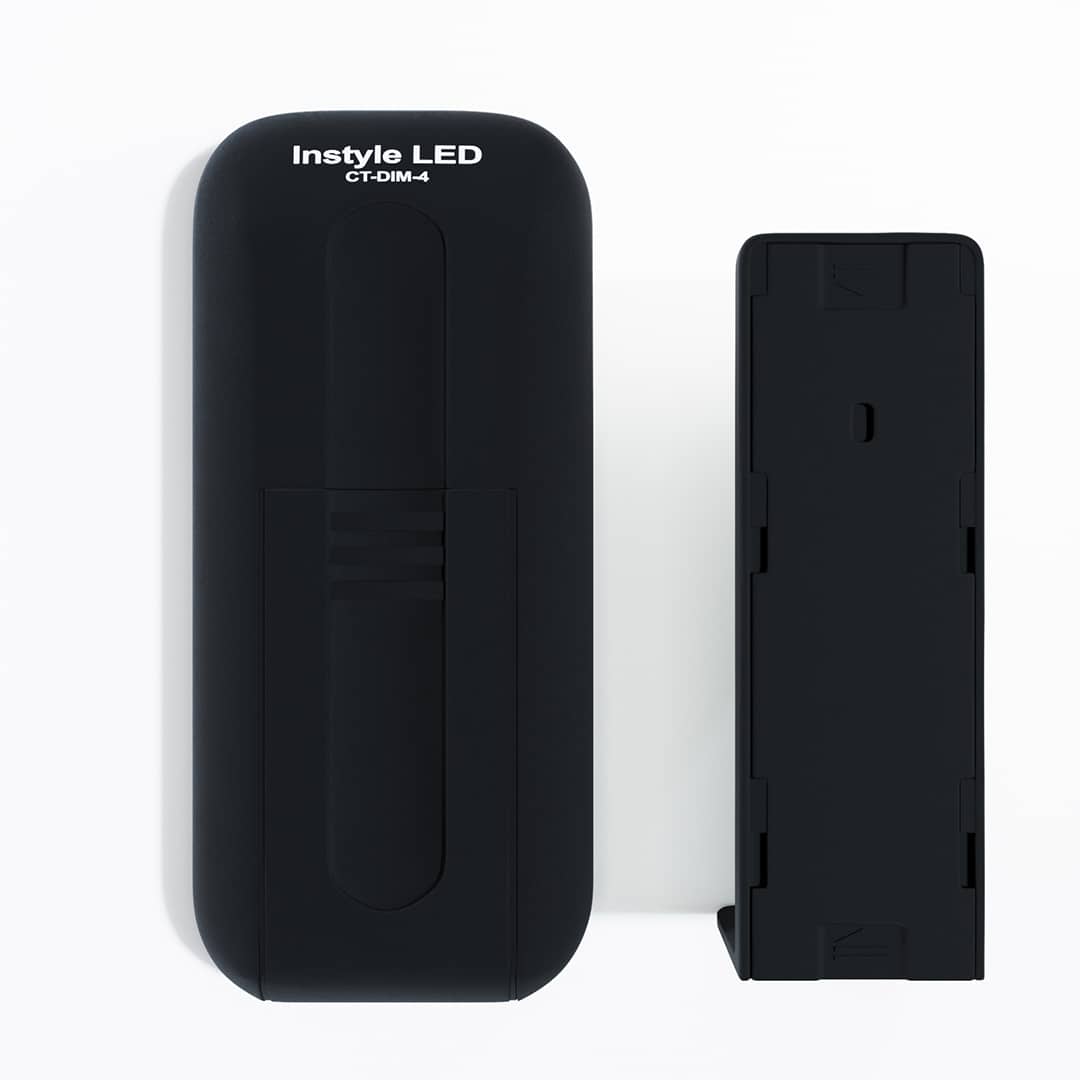

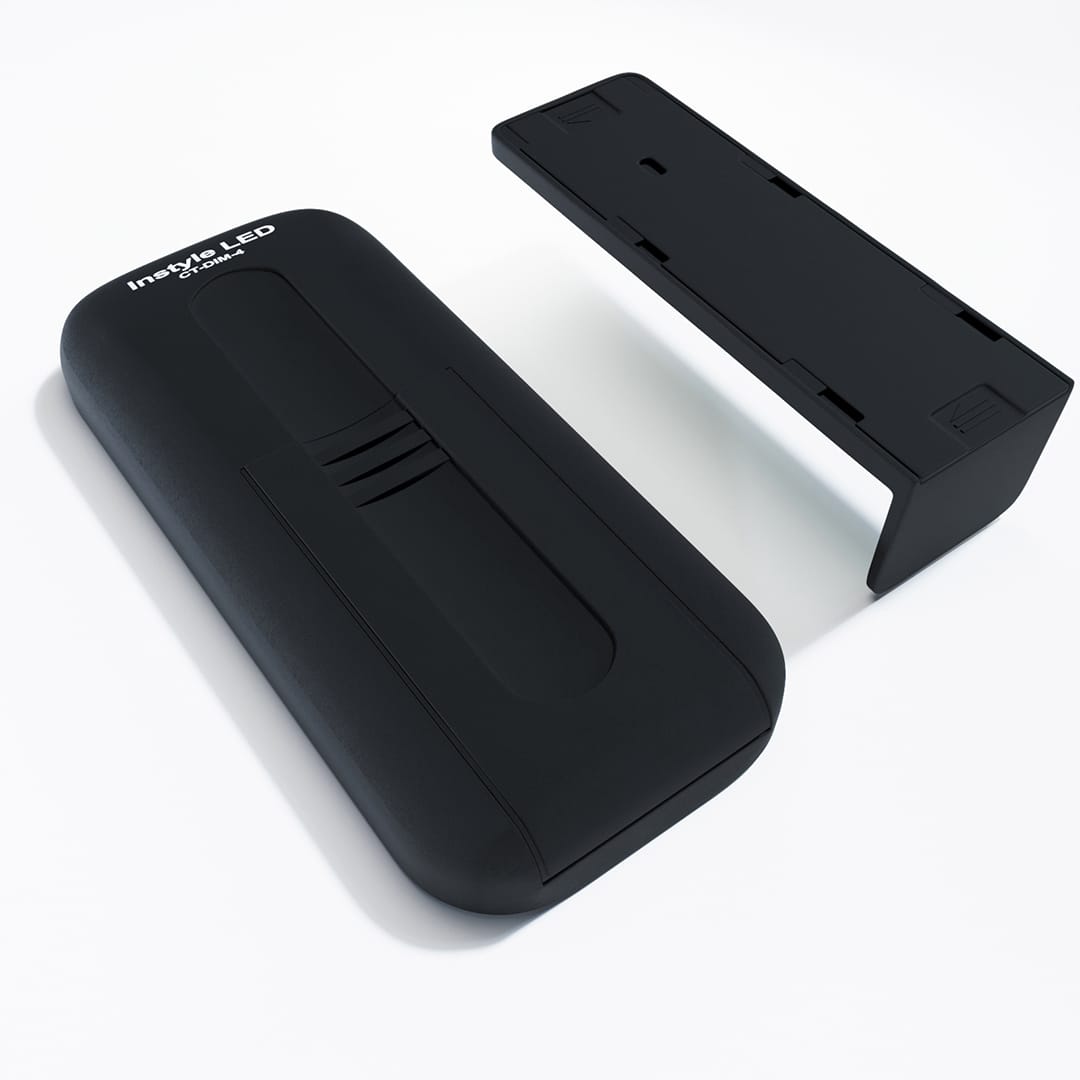

SINGLE COLOUR MULTI ZONE WIRELESS REMOTE

Works with our RC-RF-RGB-5 receiver (sold seperately)

Availability : In stock for next day delivery

  • Power: Battery Powered (3xAAA)
  • Radio Frequency: 869.5/916.5/434MHz
  • Range: 20mtrs (open area)
  • Operating Temperature: 0-40Β°

Product Description

INSTYLE’s New CT-DIM-4! A commercial grade wireless controller for your LED strip lighting, This INSTYLE 4 zone remote control works with all single coloured variants of our LED tape. (wired to one of our RC-RF-RGB-5 multi channel receivers) Read more.

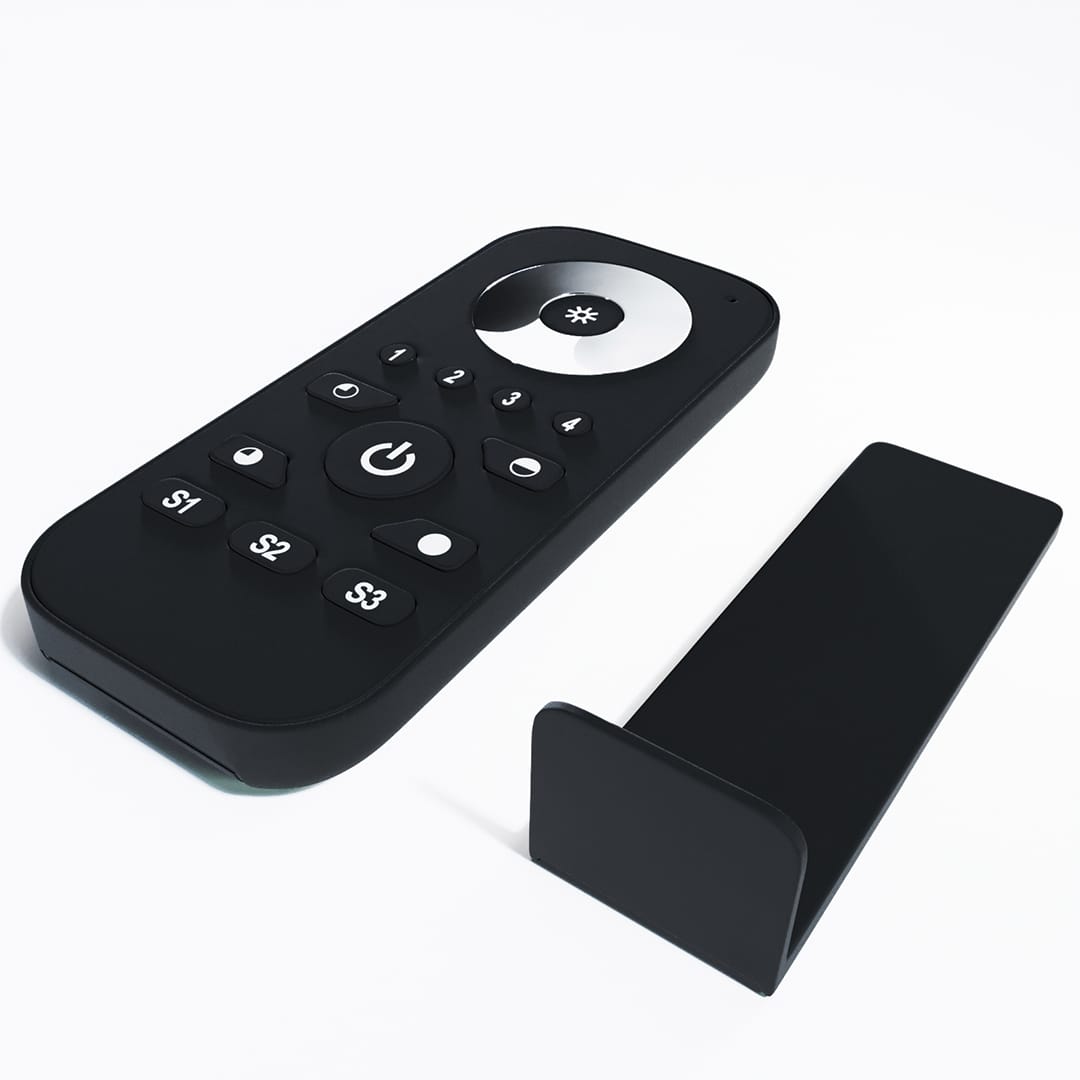

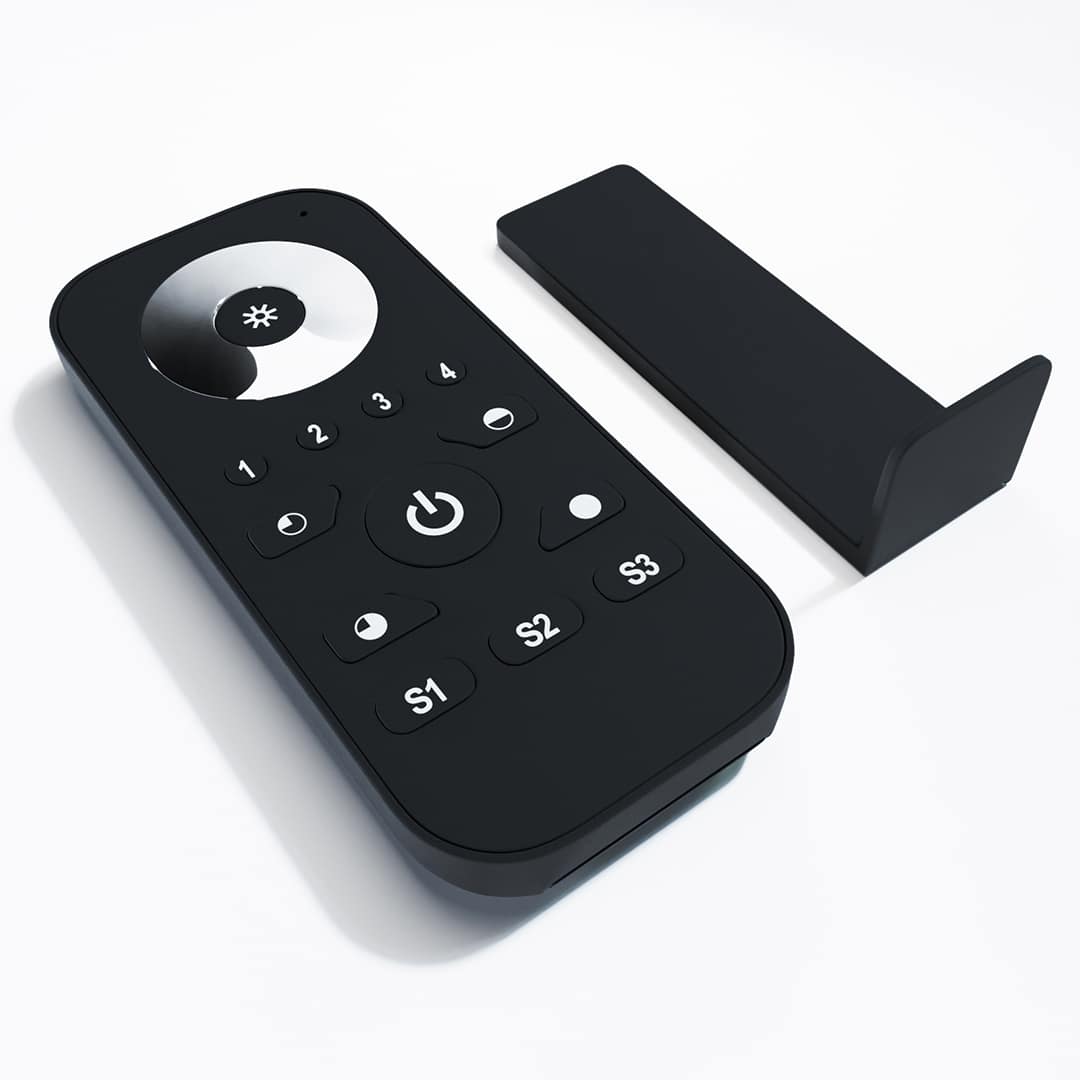

The remote has a touchscreen dimming wheel, enabling you to adjust the brightness level of our LED strips at the tip of your fingers.

Additional settings also include:

3x save buttons which allow you to save your desired brightness levels and flick between them at your own convenience.
One touch brightness keys, which allow you to choose between 25%, 50%, 75% and 100% full brightness at the push of a button.
1 – 4 zone keys, which allow you to select individual zones and control them independently. OR select multiple zones and control them all together at the same time.
Combined with the RC-RF-RGB-5 receiver, this controller works via RF (radio frequency) therefore does not require line-of-sight. With a range of 20 meters from the receiver in open space. For each ‘zone’ you would like to control you would require 1x RC-RF-RGB-5 receiver.

This controller will pair with a total of 8x RC-RF-RGB-5 receivers making it ideal for large venues like clubs, bars and restaurants.

An example of why a multizone remote kit would be ideal has been explained below:

Room – KITCHEN

Zone 1: Under Cabinet Lighting | Setting = 100% brightness (task lighting for cooking/cleaning)
Zone 2: Plinth Lighting | Setting = 50% brightness (ambient/mood lighting)
Zone 3: Kitchen Island | Setting = 50% brightness (ambient lighting)
Zone 4: Above Cabinet Lighting | Setting = 75% brightness (additional task lighting)

The benefit of being able to pair with up to a total of 8x receivers is if you had to power certain areas independently but wish to control them at the same time as a separate area.

– Should you have 2x wall cabinets either side of your extractor fan, you could have 2 seperate LED drivers and RC-RF-RGB-5 receivers but still be able to pair them and control them at the same time as each other.

CT-DIM-4
