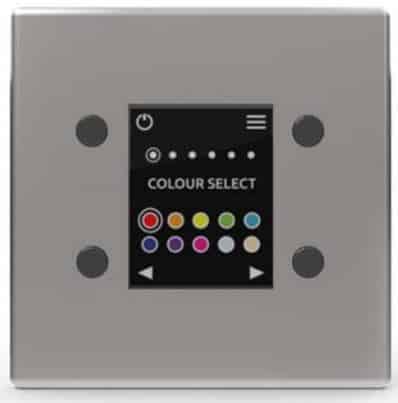

Button-Press DMX Control Panel (stainless steel build)

Single-zone 1-4 channels (suitable for RGB/RGBW LEDs)

Availability: In stock for next day delivery

  • Input Voltage: 12V or 24V
  • IP: 20

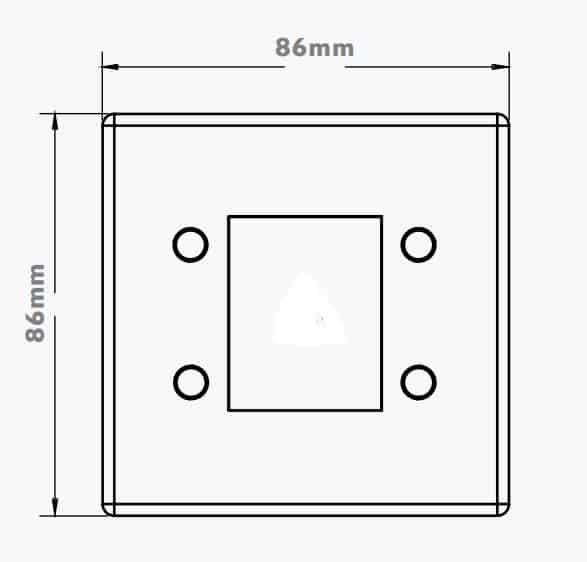

  • Length: 86mm
  • Width: 86mm
  • Depth: 4mm
  • Dimmable: Yes
  • Construction: Brushed steel
  • Data Output: DMX512 (4 channel)
  • Data Connection: 4-pin Phoenix (connect to RJ45)

Our button-press DMX controllers are a great option for your DMX lighting projects.

It enables simple on/off switching, dimming control, and colour selection. A sound trigger mode and a basic colourfade are also included. The operation of this DMX controller is designed to mimic a normal wall dimmer, allowing easy operation of LED lighting by casual users. This DMX controller can be used in conjunction with InStyle’s RGB/RGBW colour-change. The controller is powered by your LED driver; connection is via a 4-pin Phoenix interface (see the product datasheet for information on wiring to RJ45).

We can also supply a white and black version of this controller.

Commercial Grade RGBW LED Controller
Remembers the last setting when powered on/off (even by the mains 240v)
4-channel DMX control for RGB, RGBW
Touch screen with colour wheel allowing choosing any shade of any colour
Create custom colours / whites using individual R/G/B/W 0-100% buttons
Fully dimmable
Colour scroll options
You can have several receivers all controlled from 1 controller
You can wire multiple strips back to one receiver
Sound To Light function

Product Codes

CT-DMX-BS
