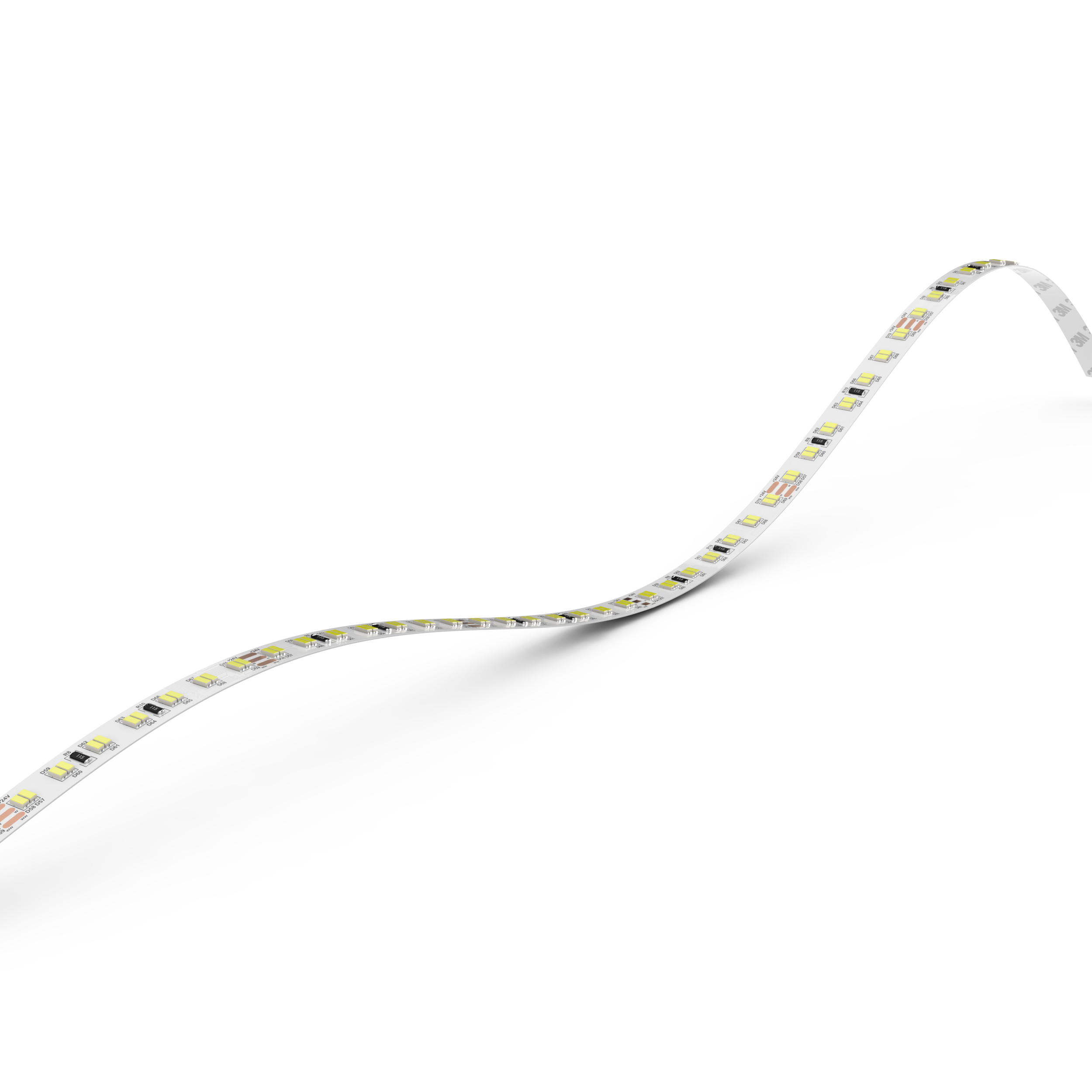

24 Watt CCT LED Strip Lights

  • Wattage: 24w p/m
  • Voltage: 24v
  • Colours: 2700k, 4000k, 6000k
  • Lumens: < 2500m/m
  • CRI: 90+
  • IP: 20, 65, 67

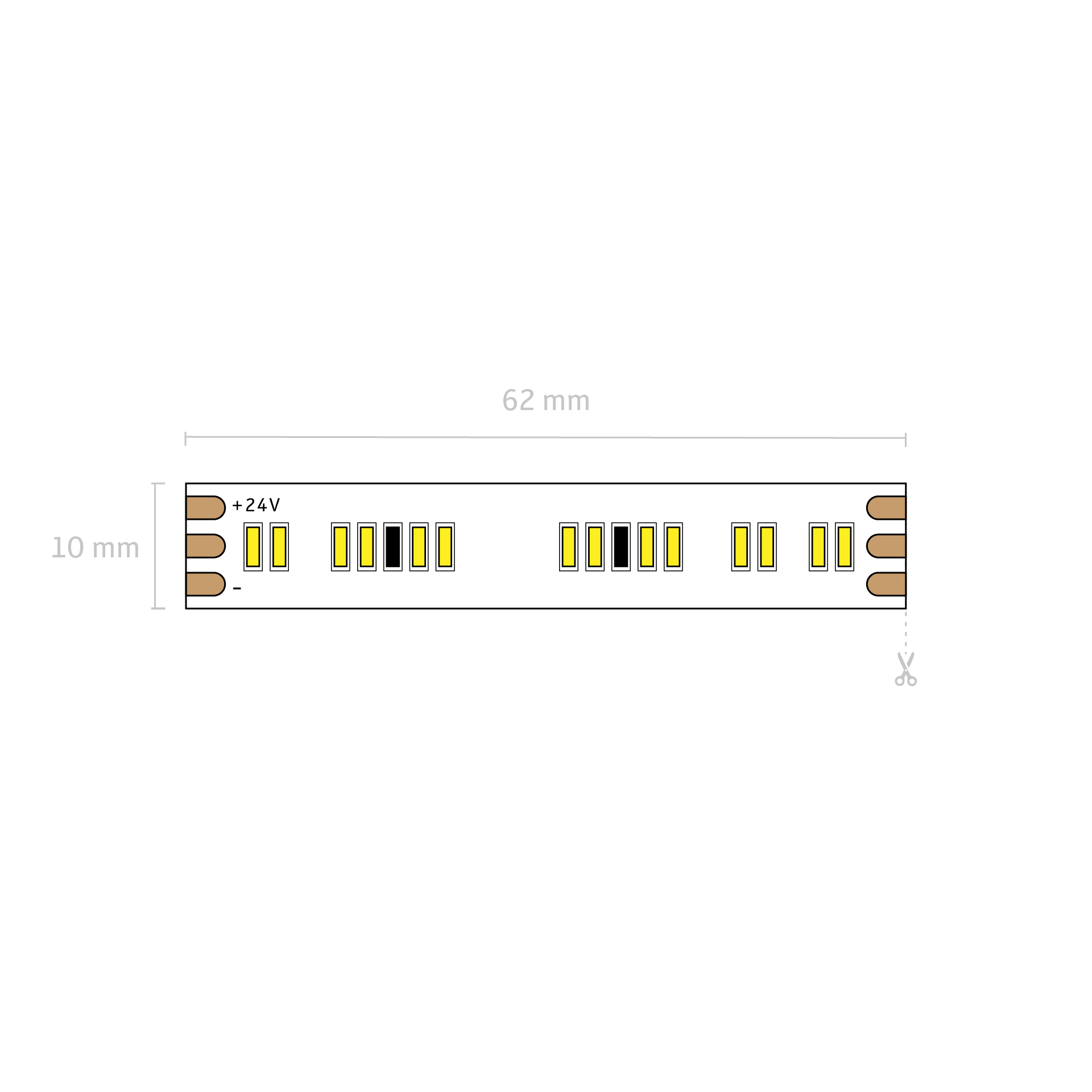

  • Cut Points: 62mm
  • Dimensions: 10mm w X 3mm h
  • Beam Angle: 120°
  • Warranty: 5yrs
  • Supply Options: 5mtr reels / made to order

Product Description

This high-power 24-watt strip lighting is a colour-temperature changing (CCT) LED tape. INSTYLE’s CCT LEDs use quality Epistar-brand diodes, each of which houses both a warm-white and a pure-white chip for superior colour mixing. By adjusting their light mix, your LEDs can create any shade of white light (available color temperature range is 2700K-6500K). Read more.

Features

  • Commercial Grade LED Tape
  • High Quality Branded LED Chip
  • Thick 2oz PCB board for maximum heat dispersion
  • High grade, long lasting resistors to stop LED chip damage
  • Premium white coating for  protection of the PCB board and to stop short circuiting
  • Smooth linear effect
  • IP65 splashproof & IP67 waterproof available

With 120 dual-white 3014 LEDs per metre, our colour-temp changing tape draws 24 watts per metre (12W pure white / 12W warm-white) and has 50,000 hours of continuous-use life. When linked to one of our dedicated CCT controllers, dual-white LEDs are ideal for businesses and offices, retail locations, and any project requiring precise control of colour-depth and appearance (e.g., photography applications). And CCT LEDs are great for domestic lighting too – use them to light alcoves, ceilings, and much more.

To learn more about CCT LED tapes, see our inVyci dual-white CCT LED control-system page.

At INSTYLE, we can pre-cut and solder your LED tape order to the exact lengths your project requires, no matter how large or small. Cut-points for our CCT LED tapes are spaced at 66 mm intervals.

INSTYLE LED supplies commercial grade LED tape using premium components, built to last and with consistent colour batching.  We can also offer you a variety of options to control your colour-changing LED tape – from wireless remote controls to DMX receivers and wall controllers. Please visit our controller page for more details.

WWW-24 (CCT LEDsWWW-24-IP (CCT LEDs splashproof)
Which driver will I need?
To work out what transformer you require this is quite simple. You take the amount of LED tape you have in metres and x this by the wattage of the LED tape you have, again per metre. For example 7m of 4.8w LED tape: 7 x 4.8w = 33.6w Therefore you would require a 60w transformer. For more information, see our support page on LED power supplies and their output.
Will my project need any other accessories?

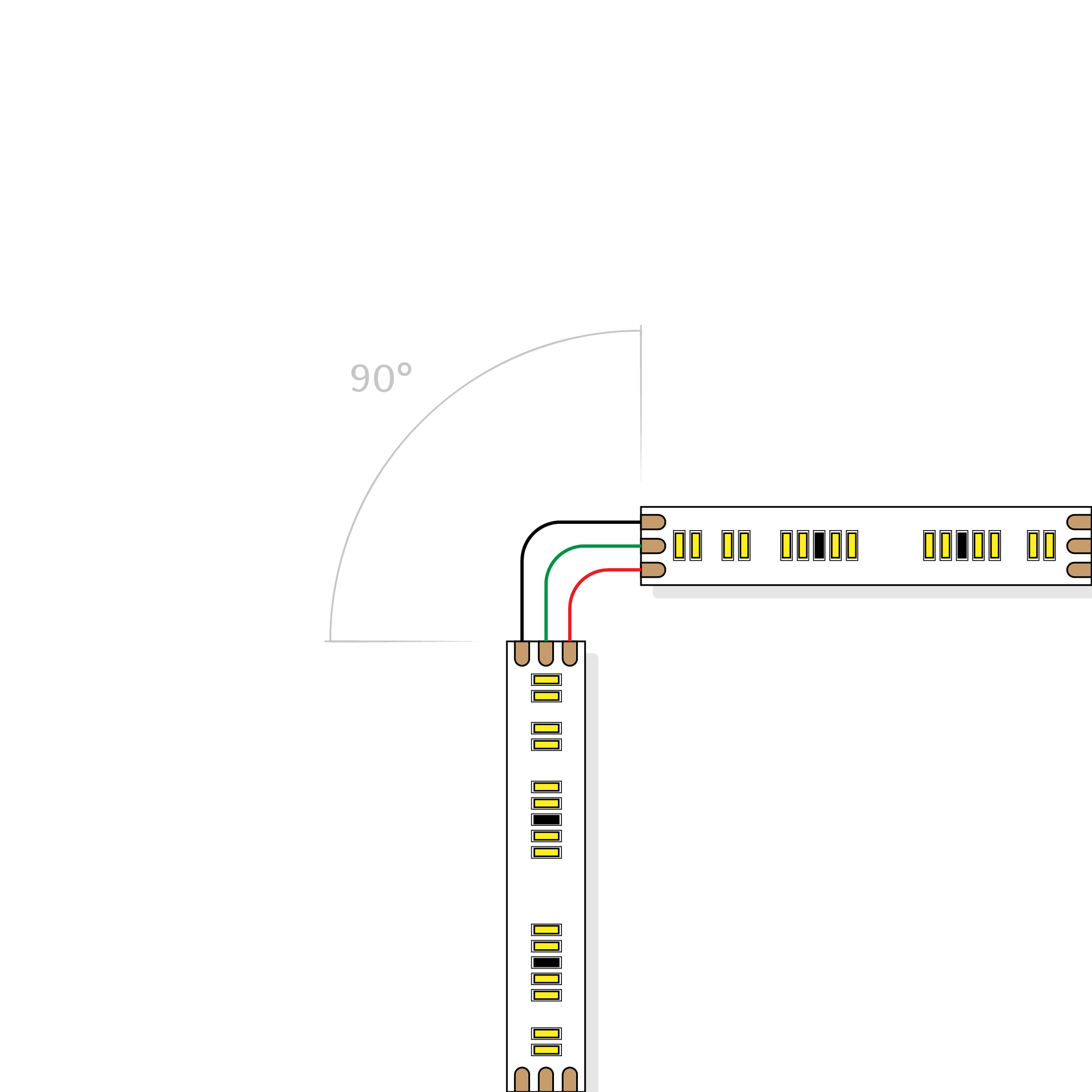

If you’ve ordered your LED tapes cut to custom lengths from us, with all the starter-leads and flexible leads for corners that your project requires, then you’ve most likely got everything you need already! But for some installations, the following accessories may prove useful:
Which wattage do I need?
Deciding on which wattage you require is all down to what kind of application you are fitting the LED tape in. The 5w and 10w is ideal to be used as feature lighting. Lighting to highlight areas, as a secondary lighting. Ideal for covings, drop down ceilings signage etc. to give a smooth halo effect. The 10w would be preferred to the 5w for these applications if there is a high amount of ambient lighting. The 12w and 20w is ideal to be used as general lighting or as feature lighting for areas larger than covings etc. For example washing down front bars / back bars / under kitchen cabinet lighting as ‘working light’. For more information, see our support page discussing how bright your LED tape needs to be.
When do I need to use the IP67 Heat-shrink?
IP67 Heat-shrink type is required in areas where you will need resistance to water. For example bathrooms, kitchens and exterior. The heatshrink version is waterproof but it cannot be submersed, for example in a pond. The IP67 Heat-shrink is a protective coating over the LED tape, this makes it easy to wipe to clean etc. For more information, see our support page describing the waterproof LED strip light options we offer.
What does CCT stand for?
The acronym CCT stands for Correlated Colour Temperature dimming & control.
What are RGB + Dual-White LEDs?
RGB + Dual-White LEDs offer the colour-mixing of 3-colour RGB (red/blue/green) plus dual-white (warm & pure shades) light palettes, all combined in a single diode. Together they provide ultimate flexibility for white and coloured lighting.
What are ‘commercial grade’ LED strip lights?
InStyle LED manufacture and supply commercial-grade LED strip lights – which means our products are high quality and built to last, using only premium components and branded LEDs:
  • Brighter LEDs
  • Vibrant and consistent colours
  • Accurate life expectancy
  • Sturdy PCBs
  • Excellent resistor management
Find out more on our ‘commercial-grade LED’ support page.
How do I wire LED Tape?
For this type of LED tape you will require just a transformer to get this working. You connect the 2 core starter lead coming out of one end. This is then wired to the transformer, red wire goes to + and the black wire is wired to -. The 2 core cable can be extended as required for you to mount the transformer as far away as required. For more information, choose one of these links for support and advice on how to install either simple or larger LED tape projects.
How do I create custom lengths? Can I cut my LED strips?
All of our LED strips are cuttable. Each LED strip can be cut at various points, either 50mm, 100mm, 150mm or 200mm depending on which LED-strip product you have. We can either cut the lengths to your specific instructions, or you can do this yourself. Once the LED strips are cut, you will need to join them to a transformer or to another piece of LED strip. You can solder your tapes, or if you prefer we supply two types of easy-click connector clips instead. We have starter-lead clips, which clip to the end of your LED tape and provide a cable which you can connect to a transformer or dimmer. The second type of connector clip is a tape-to-tape clip, which can used used to easily join two LED strip lengths together.
How do I attach the LED Strip light to a surface?
You can simply counter sink screw straight into the extrusion or by using the supplied brackets.
Does the CCT tape come with a controller?
Our CCT tapes and compatible controllers are sold separately.
How flexible are LED strip lights?

LED tape is very flexible indeed. So it’s ideal for use in a wide variety of applications – including signage.

And the heatshrink used to seal and protect our waterproof LED tape is as flexible as InStyle’s standard strip lighting. Even with full heatshrink coating, you’ll be able to bend and twist your LED tapes to the shapes you need.

[fusion_gallery order_by="desc" limit="" pagination_type="" load_more_btn_text="" layout="" picture_size="" aspect_ratio="" custom_aspect_ratio="100" aspect_ratio_position="" gallery_masonry_grid_ratio="" gallery_masonry_width_double="" lightbox="yes" lightbox_content="" margin_top="" margin_right="" margin_bottom="" margin_left="" hide_on_mobile="small-visibility,medium-visibility,large-visibility" class="" id="" columns="4" column_spacing="" hover_type="" bordersize="" bordercolor="" hue="" saturation="" lightness="" alpha="" border_radius="" load_more_btn_span="no" button_alignment="center" load_more_btn_color="" load_more_btn_bg_color="" load_more_btn_hover_color="" load_more_btn_hover_bg_color="" caption_style="below" caption_title_tag="3" fusion_font_family_caption_title_font="" fusion_font_variant_caption_title_font="" caption_title_size="" caption_title_line_height="" caption_title_letter_spacing="" caption_title_transform="" caption_title_color="" caption_background_color="" fusion_font_family_caption_text_font="" fusion_font_variant_caption_text_font="" caption_text_size="" caption_text_line_height="" caption_text_letter_spacing="" caption_text_transform="" caption_text_color="" caption_border_color="" caption_overlay_color="" caption_align_medium="none" caption_align_small="none" caption_align="none" caption_margin_top="" caption_margin_right="" caption_margin_bottom="" caption_margin_left=""][fusion_gallery_image image="https://www.instyleled.co.uk/wp-content/uploads/5W.jpg" image_id="4523|full" aspect_ratio_position="" masonry_image_position="" image_title="5W White LED Strips" image_caption="" link="" linktarget="_self" /][fusion_gallery_image image="https://www.instyleled.co.uk/wp-content/uploads/10W.jpg" image_id="4526|full" aspect_ratio_position="" masonry_image_position="" image_title="10W White LED Strips" image_caption="" link="" linktarget="_self" /][fusion_gallery_image image="https://www.instyleled.co.uk/wp-content/uploads/24W..jpg" image_id="4527|full" aspect_ratio_position="" masonry_image_position="" image_title="24W White LED Strips (Heatshrink)" image_caption="" link="" linktarget="_self" /][fusion_gallery_image image="https://www.instyleled.co.uk/wp-content/uploads/RGB.jpg" image_id="4528|full" aspect_ratio_position="" masonry_image_position="" image_title="7.5W RGB LED Strips" image_caption="" link="" linktarget="_self" /][/fusion_gallery]

To learn more, see our support page.

Why Choose LED Tape Lights?

Our LED strip lights are available in a wide choice of brightness levels. And they’re flexible enough to fit any space, so there’s no limit to the applications and projects you can use them for.

LED strips are perfect for signage, restaurants, hotels, bars, LED tape for cars, and for your home. And you can get all of our strip lights in IP65 (splashproof) or fully waterproof versions, so they’re ideal for both inside and outside LED lights.

We offer a wide variety of LED tape colours – from warm whites to pure white, and red, green, amber or blue LED light strips. Or choose our RGB or RGBW (colour changing) LED strips, which will let you mix any shade you want when linked with a controller.

LED strip lights are very easy to install, because they’re supplied with 3M self-adhesive under a protective backing. Simply peel and stick!

You can buy your LED lights today by calling 0116 2799083.



What is LED tape?

LED tape is a versatile light source that will let you create new worlds of lighting possibilities. Easy to install and connect, this kind of lighting can be fitted pretty much anywhere.

Each metre of LED tape has dozens of light-emitting diodes mounted serially (in a line) on a strong, flexible printed-circuit board (PCB). When illuminated, a well-designed LED installation gives any location or surface a smooth, gorgeous glow.

InStyle are a leading UK provider of LED supplies, so you can order your strip lights from us with confidence. Because we’re lighting specialists, we’ll deliver everything your LED project or installation needs. We supply drivers/transformers, dimmers & controllers, LED extrusions, and accessories – all manufactured to commercial-grade as standard!

Unlike many LED companies, we’ll deliver your LED strips pre-cut to length. We’ll solder flexible connectors, add extended starter-leads, and we’ll even waterproof your striplights if required. That sets us apart from non-specialist sellers of cheap throwaway LED strips (like eBay and Amazon).

Our LED supplies run at low wattage, with a lifespan of 10 years or even more. So you get economical running costs, with virtually no need for maintenance.

Even better, InStyle offers great technical support and installation tips for all your LED projects. Why not check out the how-to guides on our support page and our what-where pages (detailing specific LED projects/applications), or simply give us a call? You’ll get lots of useful advice and answers to your LED questions.
